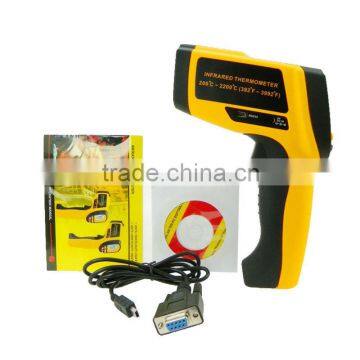

Infrared Thermometer RZ2200

Infrared  Thermometer RZ2200 is a reliable device used for measuring temperature of the object's surface, which is applicable for various hot, hazardous or hard-to-reach objects without contact safely and quickly. Just aim the Laser Point, press the button, and read the temperature in less than a second. It makes aiming even more precise.

It has Ultra High Distance to Spot Ratio (80:1) and much wider Temperature Range from 200 to 2200°C (392 ~ 3992°F). The thermometer also featured with Backlight LCD, High Accuracy,Fast Responding Time (0.5 seconds), User Adjustable Emissivity (Preset  at 0.95) and Spectral Response from 900 to 1700 nm.

It is consist of Optics, Temperature Sensor signal amplifier, Processing circuit and LCD display. The device's onics translate the information into a temperature reading which is displayed on the LCD.

In addition,°C and °Fcan be easily switch. It also has 4000 memories data storage,Maximum,Minimum, AverageandDifferencetemperature functions, Adjustable High and Low Temperature Alarm and battery life indication.

RS-232 conection, on line measurement with computer. With software analysis, also have 100 data export.

Applications

• Heat ventilation air-conditioning and refrigeration
• Automotive industry
• Food preparation
• Horticulture
• Construction, mechanics, and hot spots
• Electrical & power voltage/current inspection field
• Water treatment and water quality inspection
• Environmental monitoring
• Marine and weather
• Gas industry
• Food processing industry

Features

• Memory storage function (up to 4000 data)
• Wide  Temperature range with 200 ~ 2200°C/392  ~ 3992°F
• With D:S = 50:1, maximum distance from the target object
• Highly  accurate and reliable
• Adjustable Emissivity(Preset at 0.95)
• Spectral  Response from 900~1700nm
• Large clear LCD display  with Backlight
• 3   levels Battery Life Indication
• Auto  Power Off
• Data Store/Recall Function
• Data Hold Function
• Access surface temperature in 1 second
• Selectable between°C and °F
• Maximum, Minimum,Average and Difference temperature functions
• Adjustable High/Low Temperature Alarm
• Fast response time (0.5 seconds)
• Measure hazardous or inaccessible objects (high-voltage parts)
• Laser Target Pointer selection

Specifications

• Measuring Range: 200 ~ 2200°C / 392 ~ 3992°F
• Accuracy
• 200~ 2200°C (392~3992°F) : ±2°C  or ± 2%whichever is greater
• Distance to Spot Size / DS Ratio: 50:1
• Resolution: 0.1 °C/°F
• Repeatability: 1% of reading or 1°C
• Response Time: 500mSec, 95% response
• Spectral Response: 900~1700nm
• Emissivity: User Adjustable and Preset at 0.95
• Laser Power: < 1 mW
• Operating Environment                            Storage Temperature: -20~60°C (-4~140°F)
• Temperature:  0~40°C (32~104°F)
• Humidity: 10~95% R.H. non-condensing at up to 30°C (86°F)
• Low battery indication (3 levels)
• Power:  1 x 9V Battery (included)
• Typical Battery Life (Alkaline): 12 hours (Laser), 22 hours (non-Laser)
• Item  Size: approx. 141 x 60 x 200mm
• Item Weight: approx. 270g

Standard QTY per Export Carton: 12PCS
Standard Export Carton size: 53*51*35CM
Standard Export Carton GW: 16.5KG
