Automatic Powder Coating Line for Metal Sheets

Automatic Powder Coating Line for Metal Sheets

Technical Process:

1) Pre-treatment system: Automatic Spraying pre-treatment and dipping pre-treatment are available;

2) Drying oven: Drying oven which drying the water after pre-treatment is designed according to customers’ actual conditions.

3) Powder coating spray system: Automatic spray reciprocator, manual spray equipment and Semi-auto (Auto-spraying with manual repairing spraying) are for your choice;

4) Powder recycling system: Cyclone equipment and cartridge filters is customized and introduced according to actual requirement by customer;

5) Curing oven: Tunnel curing oven, bridge type curing oven, Electric power heating curing oven, Gas-heating curing oven, Diesel heating curing oven, High temperature, lower temperature curing oven is available for fitting your sole factory.

6) Conveying system: Various design according to different requirement by customer on the basis of customers' workpiece and output information.

7) Control system: PLC control, with or without touch screen

8) Spray gun and reciprocator

1. Pre-treatment system:

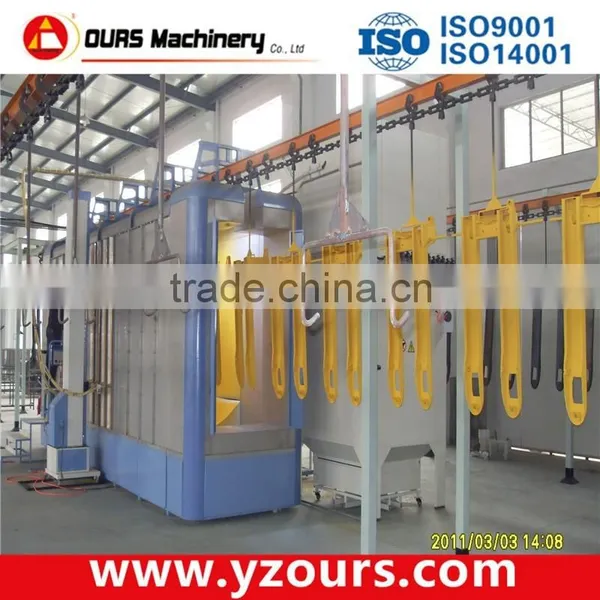

2.. Spray Booth:

3. Drying/Curing Oven:

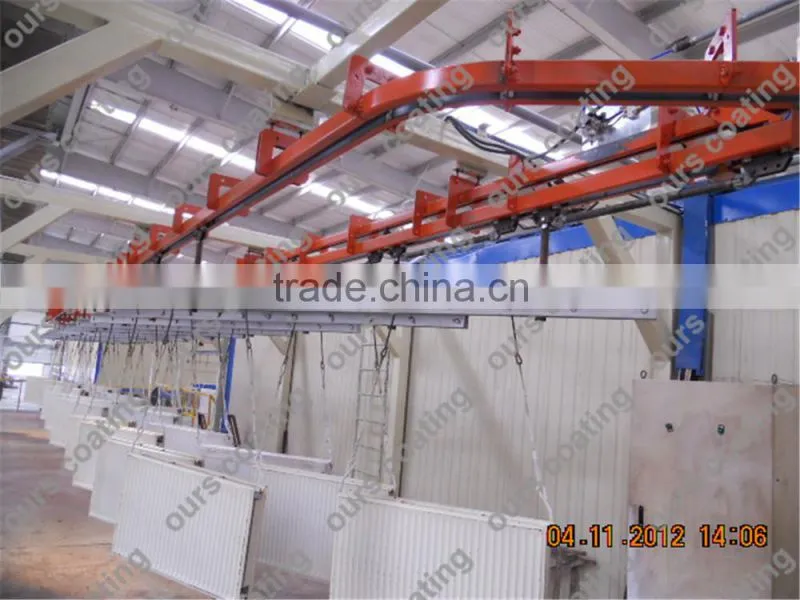

4. Conveying System:

Buyer Feedback:

We are professional in powder coating line project as customized. To provide you more details and quotation, would you pls let me know the following information:

1. What product do you need to paint? What’s the material of the product?

2. What is the maximum size and weight for painted product? Would you pls send us some pictures of your product?

3. How many pieces will you paint in one hour or one day? How many working hours is it one day?

4. What is your available space for this powder coating line project?

5. What is the heating source?(natural gas,LPG,diesel oil,electricity)

6. Do you need to change powder color frequently?

7. What is the powder curing condition (180-200’C in 15-20mins, or 200C in 10mins?)

8. What kind of pretreatment system do you use (spray pretreatment or dipping type)?

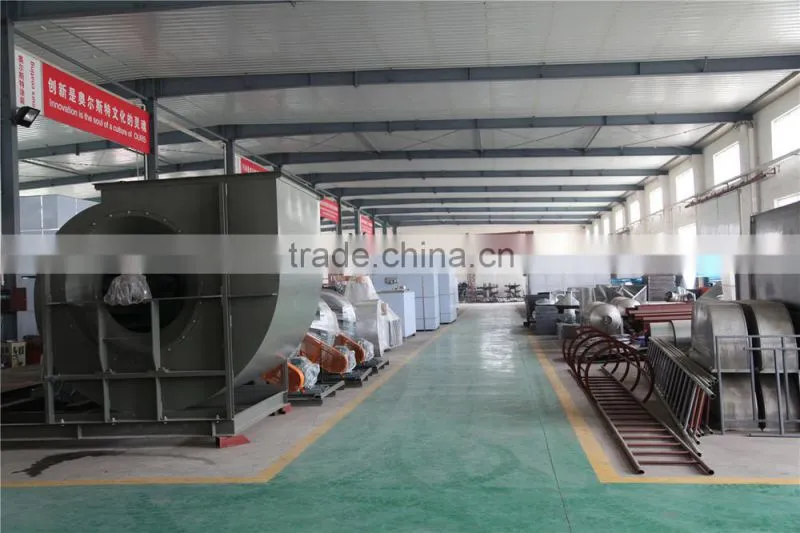

 Our Factory:

If you are interested in our products, don’t hesitate to contact us, we will give you the most professional reply and support within a short time.
