Pre-galvanized galvanised steel c strut channel with factories in China
HDMANN C CHANNEL SYSTEM
HDMANN C channel is constructed of precision engineered, high quality and is the result of decades of research gained from the installation of hundreds of framing projects across the globe.
Our c channel is subjected to testing at every stage of the manufacturing process. In actual use, it has performed in a wide variety of office buildings and is widely used for solar project, house building purline, and anywhere there needs the framing and support.
Standard c channel is alailable in 41*21 41*41 41*72 41*82 41*25. The standard finish is electroplared zinc after fabrication. A variaty of other finishes available are including hot dipped galvanized after fabrication, pre-galvanized as well as multitude of colors in powder coating. The c channel is also available in type 304 and 306 stainless steels for extremely corrosive enviroments.
As for the fittings, a complement of accessories and brackets used for wire mesh installation are also provided. See our catalogue unpon request.

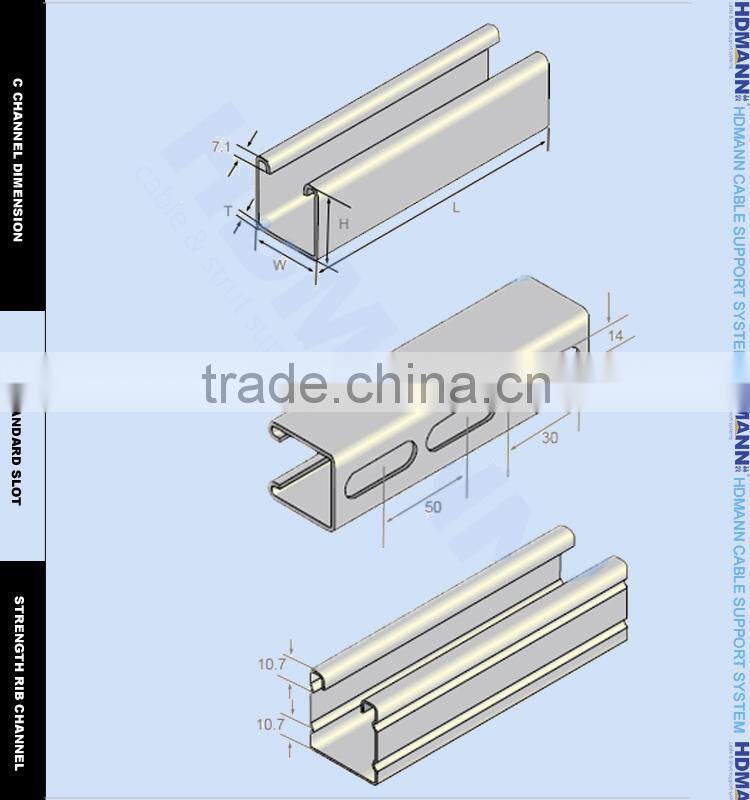

Standard c channel specification
| Table of c channel standard dimensions, thinkness and weight(kg/meter) | |||||
| W*H/Thinkness | 1.5mm | 2.0mm | 2.5mm | 2.75mm | 3mm |
| 41*41 | 1.68 | 2.22 | 2.78 | 3.07 | 3.35 |
| 41*25 | 1.29 | 1.72 | 2.14 | 2.36 | 2.57 |
| 41*21 | 1.18 | 1.59 | 1.98 | 2.2 | 2.37 |
| 41*72 | 2.42 | 3.22 | 4.03 | 4.43 | 4.82 |
| 41*82 | 2.65 | 3.53 | 4.4 | 4.85 | 5.28 |
| Surface treatment |
|
Electro zinc plating: Thickness of coating >12um Application environment (Indoor): IDC, Factory, Hospital, Railway Industry, Electricity industry, Energy resources, automation industry |
|
Hot dip galvanized: Thickness of coating >60um Application environment (Indoor.Outdoor): Chemical Engineering, Railway Industry, Electricity industry, Energy resources, Wind power, solar energy |
|
Powder coating after zinc coated(Colored channel): Thickness of coating >60um Application environment (Indoor): Chemical Engineering, Railway Industry, Electricity industry , Energy resources, Wind power, solar energy |
|
Acid washing For stainless steel: Application environment(High corrosion occasions): Pharmacy Industry, Machinery and Equipment Automation Industry, Seabrone, Robotics , Food Industry |
Materials |
| Q235B(SS400B), Aluminum, Pre-galvanized steel,FRP, Stainless steel 304/316/316L |

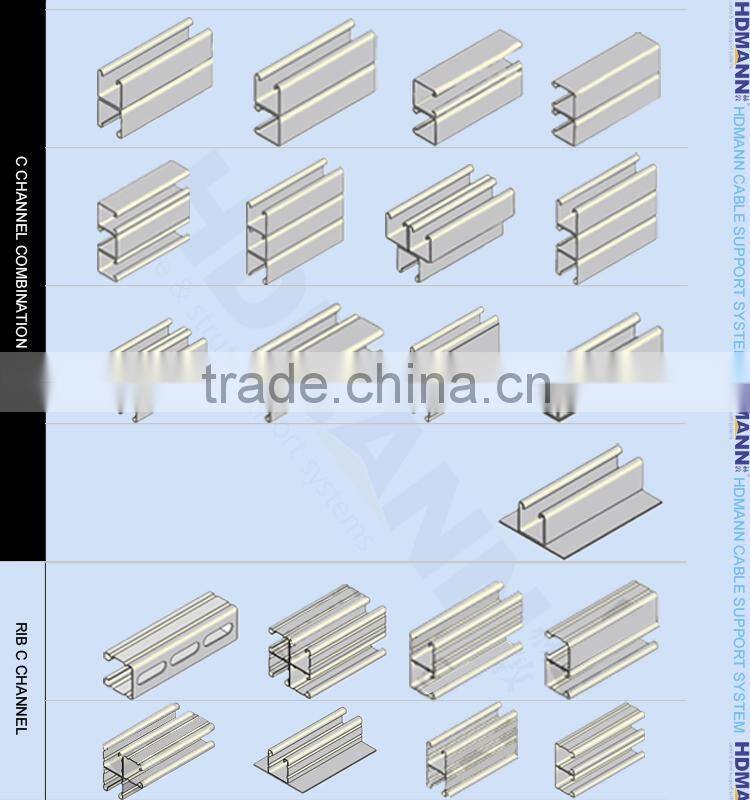

C CHANNEL COMBINATION

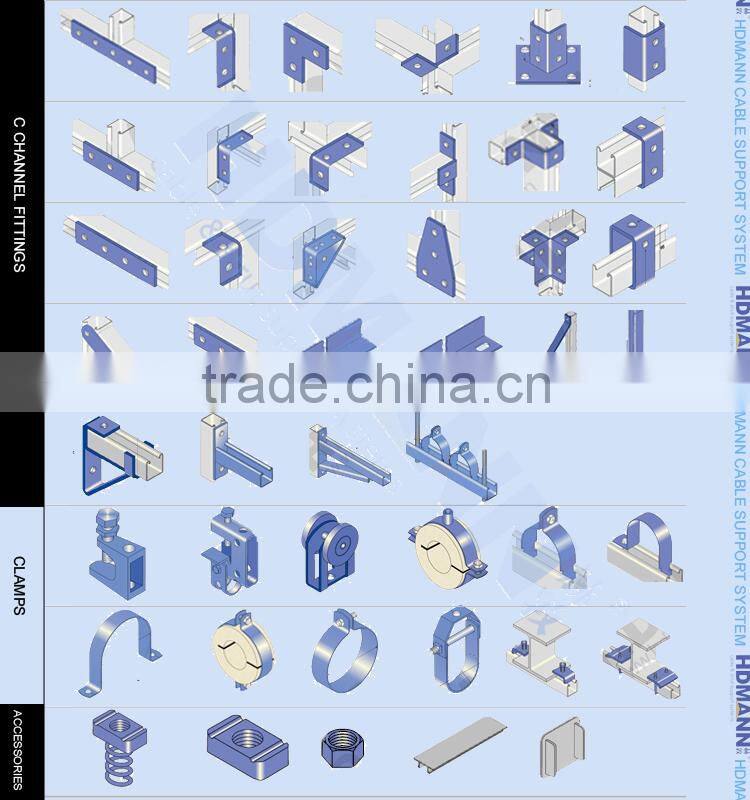

C CHANNEL FITTINGS

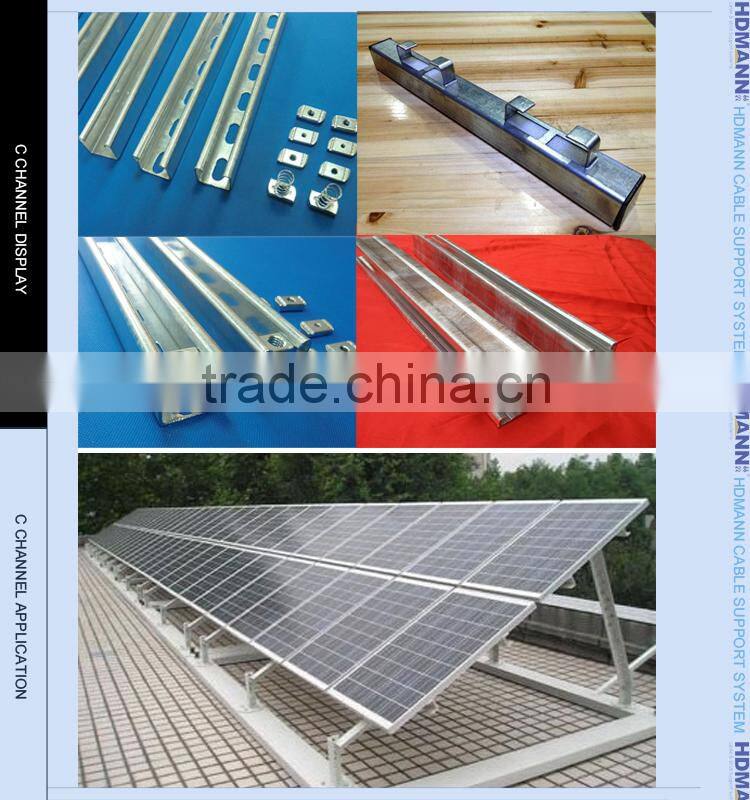

REAL C CHANNEL DISPLAY AND APPLICATION

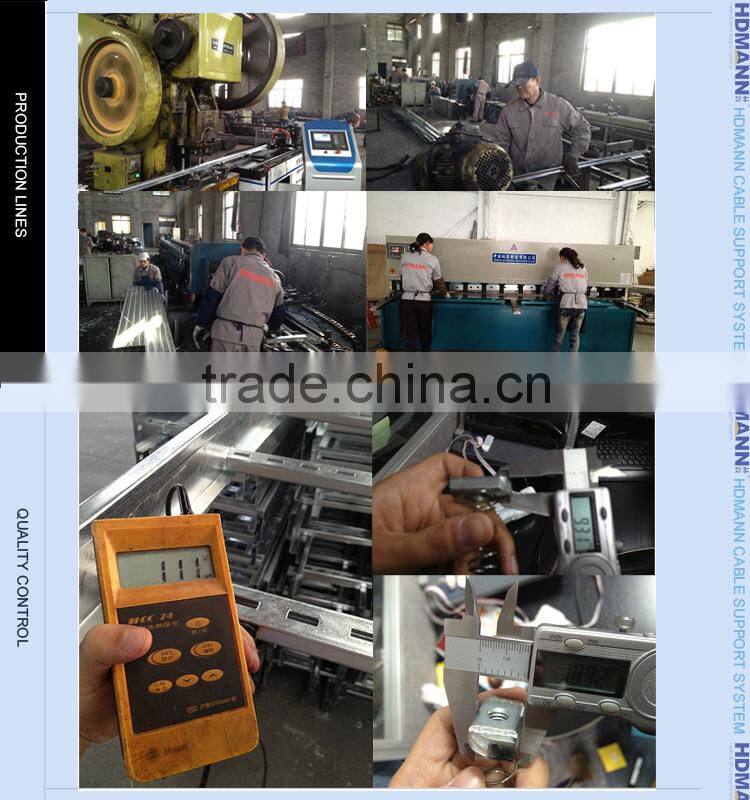

PRODUCTION LINES AND QC

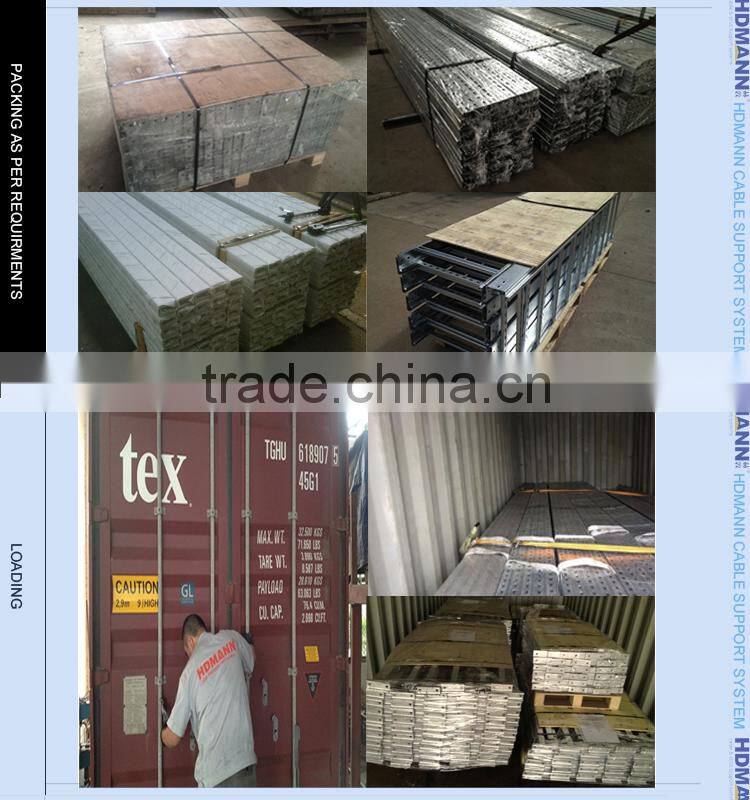

PACKING AND LOADING
HDMANN INDUSTRY CO., LTD.---CABLE SUPPORT AND FRAMING SYSTEM
CHINA LEADING OEM SUPPLIER
CERTIFICATION
What is the type of our bussines?
We are a exporter and manufacturer, and have factories in China.
What are the trading terms we practice?
Generally, we practice FOB/CIF/C&F and DAP.
What are the payment terms we accept?
T/T, L/C, 30% down payment and 70% against B/L, NEGOTIABLE
What is the delivery time?
Generally, it would take 10-20 days to finish the production for normal order quantity.
Can we provide the samples?
Yes, sample is free.
