Zinic and kinel protection c strut steel channel
- 200 Carton / Cartons per Month
- Shanghai
- Processing support for pressure resistant and strong steel structures, processing of fixed length bolts, ball grid structures, construction of channel steel, bending, punching, welding, painting, Q235 and other materials
- Private Label Embedded Channel Steel Linear Channel Steel Trailer Channel Steel Used for Bearings
- Q235/Q345 /SS400 Hot Rolled U / C Section Shaped 3 - 5 Days 6m-12m Steel Channels
- Factory Direct Channel C U Shape Steel U Shape Channel C U Z Steel Channel Profile
- Stainless steel solid U-shaped channel steel light channel steel
- Low price gypsum punching light section steel C channel steel
Product Details
Standard: | AISI, ASTM, BS, DIN, GB, JIS | Dimensions: | 41*21 41*41 41*61 41*82 | Grade: | GI, HDG steel, pre-gal steel, ss304/316 |
Place of Origin: | Jiangsu, China | Brand Name: | HDMANN | Model Number: | HM series |
Shape: | U Channel | Application: | Support/Framing/Fixing work | Perforated Or Not: | Is Perforated |
Product Description

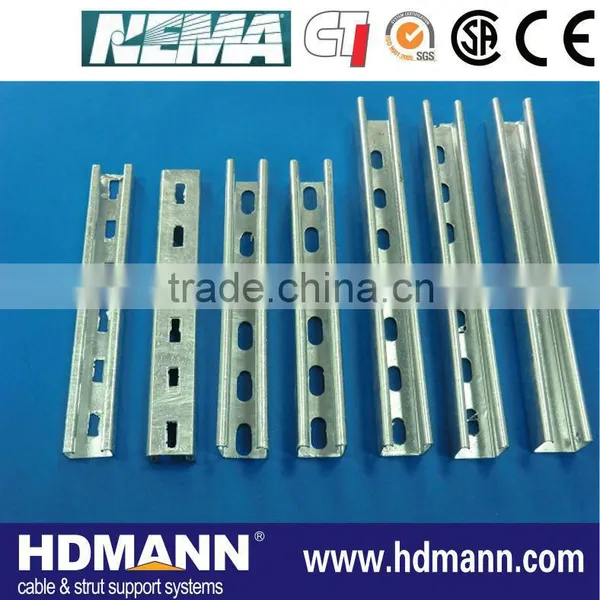

Zinic and kinel protection c strut steel channel
HDMANN C CHANNEL SYSTEM
HDMANN C channel is constructed of precision engineered, high quality and is the result of decades of research gained from the installation of hundreds of framing projects across the globe.
Our c channel is subjected to testing at every stage of the manufacturing process. In actual use, it has performed in a wide variety of office buildings and is widely used for solar project, house building purline, and anywhere there needs the framing and support.
Standard c channel is alailable in 41*21 41*41 41*72 41*82 41*25. The standard finish is electroplared zinc after fabrication. A variaty of other finishes available are including hot dipped galvanized after fabrication, pre-galvanized as well as multitude of colors in powder coating. The c channel is also available in type 304 and 306 stainless steels for extremely corrosive enviroments.
As for the fittings, a complement of accessories and brackets used for wire mesh installation are also provided. See our catalogue unpon request.
Standard c channel specification
Table of c channel standard dimensions, thinkness and weight(kg/meter) | |||||
W*H/Thinkness | 1.5mm | 2.0mm | 2.5mm | 2.75mm | 3mm |
41*41 | 1.68 | 2.22 | 2.78 | 3.07 | 3.35 |
41*25 | 1.29 | 1.72 | 2.14 | 2.36 | 2.57 |
41*21 | 1.18 | 1.59 | 1.98 | 2.2 | 2.37 |
41*72 | 2.42 | 3.22 | 4.03 | 4.43 | 4.82 |
41*82 | 2.65 | 3.53 | 4.4 | 4.85 | 5.28 |
Surface treatment |
Electro zinc plating: Thickness of coating >12um Application environment (Indoor): IDC, Factory, Hospital, Railway Industry, Electricity industry, Energy resources, automation industry |
Hot dip galvanized: Thickness of coating >60um Application environment (Indoor.Outdoor): Chemical Engineering, Railway Industry, Electricity industry, Energy resources, Wind power, solar energy |
Powder coating after zinc coated(Colored channel): Thickness of coating >60um Application environment (Indoor): Chemical Engineering, Railway Industry, Electricity industry , Energy resources, Wind power, solar energy |
Acid washing For stainless steel: Application environment(High corrosion occasions): Pharmacy Industry, Machinery and Equipment Automation Industry, Seabrone, Robotics , Food Industry |
Materials |
Q235B(SS400B), Aluminum, Pre-galvanized steel,FRP, Stainless steel 304/316/316L |
C CHANNEL COMBINATION
C CHANNEL FITTINGS
REAL C CHANNEL DISPLAY AND APPLICATION
PRODUCTION LINES AND QC
PACKING AND LOADING
HDMANN INDUSTRY CO., LTD.---CABLE SUPPORT AND FRAMING SYSTEM
CHINA LEADING OEM SUPPLIER
HDmann cable support&Framing system series products | ||
Photos | Name | Description |
perforated cable tray | A perforated(ventilated) tray has openings in the bottom of the tray, allowing some air circulation around the cables, water drainage, and allowing some dust to fall through the tray. Small cables may exit the tray through the ventilation openings, which may be either slots or holes punched in the bottom. | |
ladder cable tray | A ladder tray has the cables supported by a traverse bar, similarly to the rungs of a ladder, at regular intervals on the order of 4 to 12 inches (100 to 300 mm). Ladder and ventilated trays may have solid covers to protect cables from falling objects, dust, and water. Tray covers for use outdoors or in dusty locations may have a peaked shape to shed debris including dust, ice or snow. | |
wire mesh cable tray | Lighter cable trays are more appropriate in situations where a great number of small cables are used, such as for telephone or computer network cables. These trays may be made of wire mesh, called "wire mesh cable tray", or "wire basket". | |
trunking cable tray | A solid-bottom tray provides the maximum protection to cables, but requires cutting the tray or using fittings to enter or exit cables. A deep, solid enclosure for cables is called a cable channel or cable trough. | |
strut channel | A standardized formed structural system used in the construction and electrical industries for light structural support, often for supporting wiring, plumbing, or mechanical components such as air conditioning or ventilation systems. |
CERTIFICATION
What is the type of our bussines?
We are a exporter and manufacturer, and have factories in China.
What are the trading terms we practice?
Generally, we practice FOB/CIF/C&F and DAP.
What are the payment terms we accept?
T/T, L/C, 30% down payment and 70% against B/L, NEGOTIABLE
What is the delivery time?
Generally, it would take 10-20 days to finish the production for normal order quantity.
Can we provide the samples?
Yes, sample is free.
