Electrostatic Powder Coating Oven With Italian Riello Burner

Name: Electrostatic Powder Coating Oven With Italian Riello Burner
Brand: jsours
SKU: 109619927

US$ 100 - 10,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Type:

Other

Substrate:

Other, Stainless Steel

Yangzhou Ours Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other

Substrate Other, Stainless Steel

Coating Powder Coating

Place of Origin Jiangsu, China

Brand Name jsours

Model Number powder coating oven

Voltage Customer's request

Power(W) as per design

Dimension(L*W*H) as per design

Weight as per design

Certification ISO9001

Warranty 1 Year Waranty

After-sales Service Provided Engineers available to service machinery overseas

Etectrostatic Powder Coating Oven with Italian Riello Burner

1. Wallboard panel	- Rockwool steel colorful board,100 mmthick, density 120kgs/cbm.Outside is colorful steel,inside is gavalnized steel, anti-flame and heat-insulation.

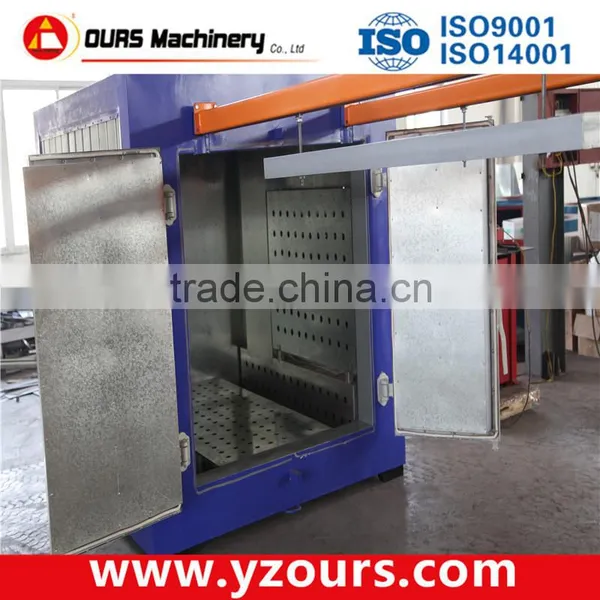

2. Working door	-One set of door or two sets of doors(go through type) for in and out,with lock lift.
3. Heating System	- Diesel burner * 1unit
	- One set of heat exchanger,made bystainless steel
	- 15~20 minutes reaching the baking temperature 180-200°C
	- Cabinet (rock woolinsulation) for the burner & heat chamber* 1unit
4. Air circulation System	One set of heat resistant fan for circulating the hot air,one set of cooling pump for cooling the axle bearing(special for 40 burner). 380v/50hz/3phase.(other voltage required need to add 150USD)
5. E-control Panel	- *1unit, including automatic/constant temprature,stop,emergency stop,start,oven temperature setting,constant temperature setting,hot air temperature setting,over indicator,failure indicator,normal indicator,power indicator,pre-work indicator.
6.Guide rail	1 set of guide rail for pushing the trolley in and out.
Included	- All Hardware, Fasteners, and Sealants
Optional	The trolley and water box should be made by the customers themselves.If you want to custom made by us,pls give us the drawing.
