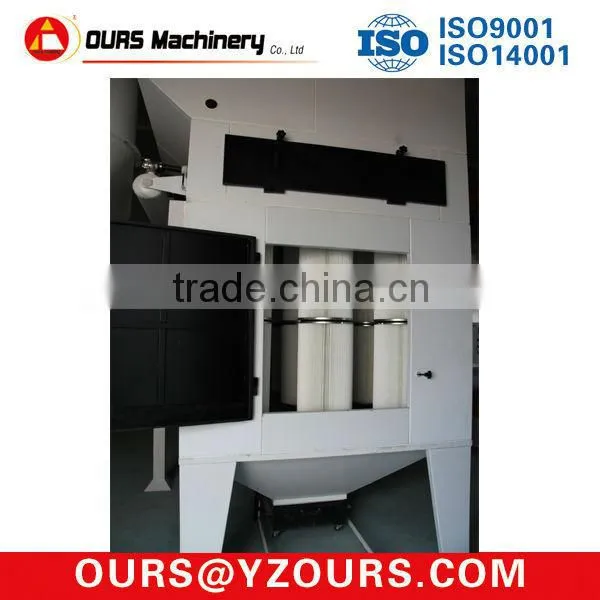

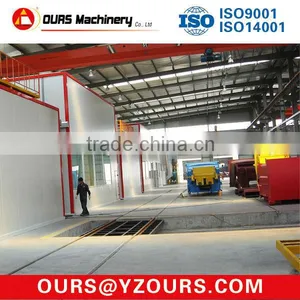

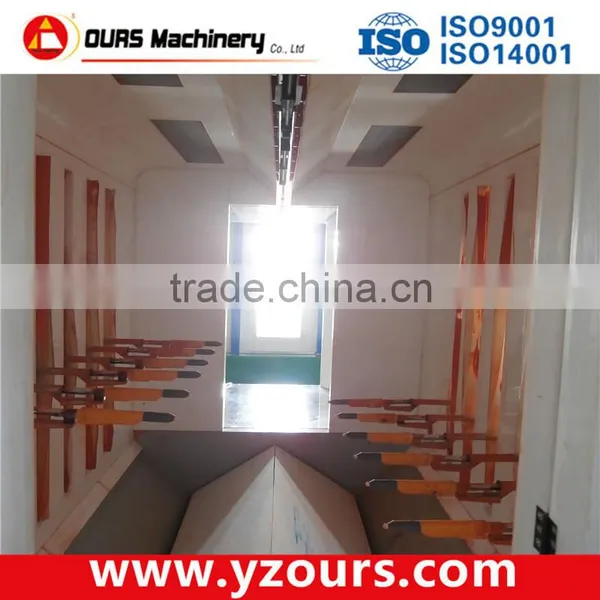

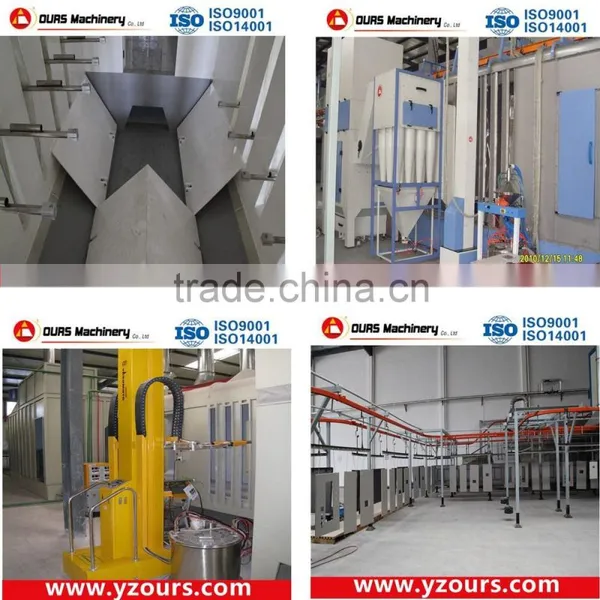

Paint Spray Booths, Electrostatic Powder Coating Booth
US$ 100 - 100,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Coating Production Line
Substrate:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
WET PAINT APPLICATION AND DRYING SYSTEMUS$ 1,000 - 10,000MOQ: 1 Unit -
Fully Automated Painting Line, Paint Factory Production LineUS$ 100 - 100,000MOQ: 1 Unit
-
Water Rotary Paint Spray BoothUS$ 1 - 100,000MOQ: 1 Set
-
Automatic Paint Spraying MachinesUS$ 100 - 10,000MOQ: 1 Unit
-
Complete Electrophoretic Spray Painting Line/machine for SaleUS$ 1 - 100,000MOQ: 1 Set
Condition
New
Type
Coating Production Line
Substrate
Aluminum
Coating
Painting
Place of Origin
Jiangsu, China
Brand Name
jsours
Model Number
booth
Voltage
Customer's Required
Power(W)
AS PER DESIGN
Dimension(L*W*H)
AS PER DESIGN
Weight
AS PER DESIGN
Certification
ISO9001
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Paint Spray Booths
| Item | Detailed Specification |
| Inside dimension | 16000×5000×6000 mm (L×W×H) |
| Outside dimension | 16140×8640×6600 mm (L×W×H) |
| Basement | Without basement, exhaust from both sides wall. |
| Front door | Folding door, 4-folds, 4000×4500mm (W×H), galvanized steel frame, EPS inside, color: blue. |
| Emergency door | 2 units, 800×2000 mm (WXH), color: white. |
| Room body | Profiled bar beams in the roof, to strengthen the room body; wall panel thickness:70mm, width:1150mm, tongue and groove structure, 0.476mm color steel with polystyrene(EPS) insulation inside, color: white. |
| Light system | Ceiling Lights: 20Units×4Pcs=80Pcs×36W, with electronic ballasts. |
| Side Lights: 24Units×4Pcs=96Pcs×36W, with electronic ballasts, up and down interleaving installation. | |
| Generator cabinet | Intake air from side upper direction, exhaust air from side upper direction, quadrate steel frame, outside is white coated steel, inside is galvanized steel,filled with heat preservation material in the middle, color: white |
| Intake and exhaust | Inlet: 4×7.5KW double-intake centrifugal fan, belt drive, motor outside, model TAE-500H, air capacity: 21000m3/h; |
| system | Outlet: 2×11KW double-intake centrifugal fan, belt drive, motor outside, model TAE-710H, air capacity: 36000m3/h, with manual damper; |
| Heating system | Without |
| Purification system | Pre-filter, high efficiency filter (ceiling filter), fiberglass filter, activated carbon filter. |
| Roof | 50mm thick EPS heat preservation panels. |
| Control system | Spraying, lighting switch, power supply switch, emergency stop, time meter, ampere meter, voltmeter, pressure gauge. |
| Power supply | 1*220V, 3*380V, 50HZ |
