HDG cable tray .(strong.with CE Hot Sell)
- 200 Ton / Tons per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
-
Standard Gi Galvanized Steel Metal Perforated Cable Tray
-
Standard Gi Galvanized Steel Metal Perforated Cable Tray
-
Standard Gi Galvanized Steel Metal Perforated Cable Tray
-
Standard Gi Galvanized Steel Metal Perforated Cable Tray
-
Standard Gi Galvanized Steel Metal Perforated Cable Tray
-
Perforated Ladder Type Cable Tray Systems in One-Step Forming Method
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | MDMANN | Model Number: | HM 100 |
| Type: | Ventilated or Perforated Trough | Material: | Steel | Width: | Max 1000mm |
| Length: | Max 6000mm | Side Rail Height: | 50-200mm | Max. Working Load: | 300kg/meter |
Product Description

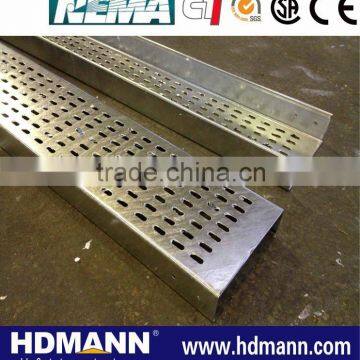

HDG cable tray
HDMANN PERFORATED CABLE TRAY SYSTEM
HDMANN perforated cable tray is constructed of precision engineered, high quality, welded steel and is the result of decades of research gained from the installation of 94,000 miles of tray across the globe.
Perforated cable tray is subjected to testing at every stage of the manufacturing process. In actual use, it has performed in a wide variety of office buildings and is widely used for from heavy power cable pathways on oil drilling platforms to data installation above the ceiling.
Our perforated cable tray is alailable in depths of 25-200 mm, and in a variaty of widths, ranging from 30-1000mm. The standard finish is electroplared zinc after fabrication. A variaty of other finishes available are including hot dipped galvanized after fabrication, pre-galvanized as well as multitude of colors in powder coating. The perforated cable tray is also available in type 304 and 316 stainless steels for extremely corrosive enviroments.
As for the cable tray fittings, a complement of accessories and brackets used for perforated cable tray installation are also provided. See our catalogue unpon request.

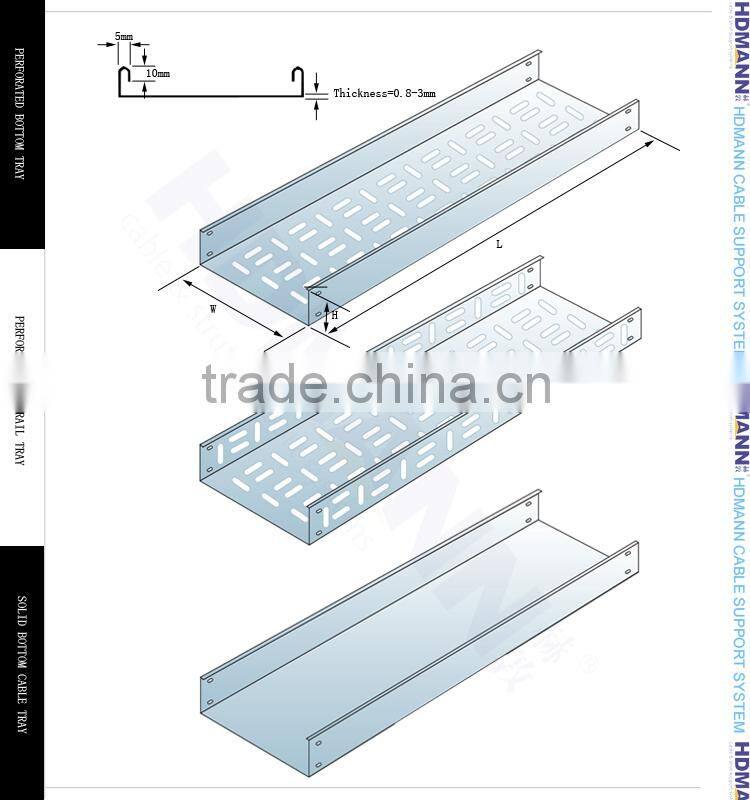

Perforated cable tray standard specification

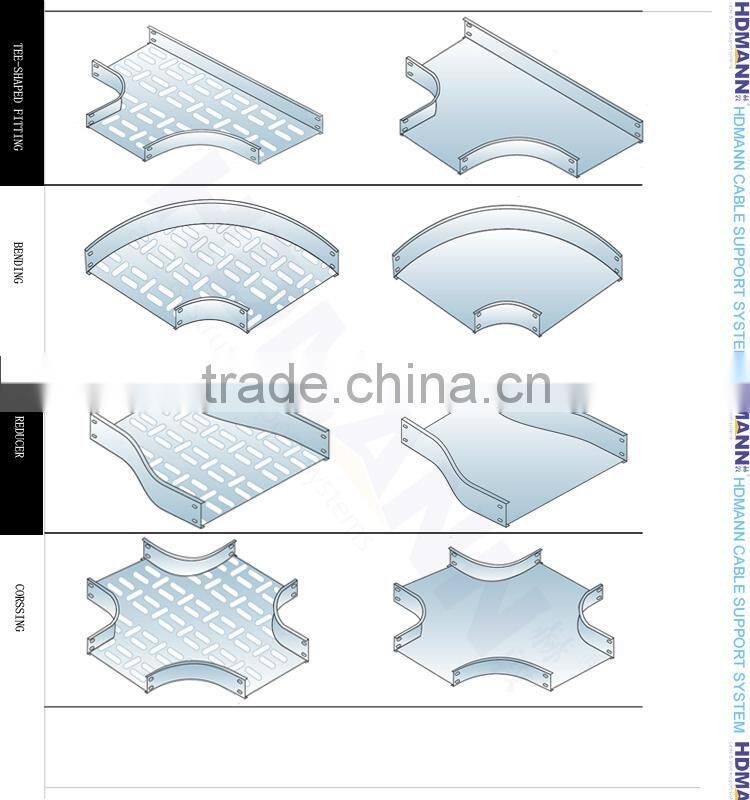

Perforated cable tray fittings

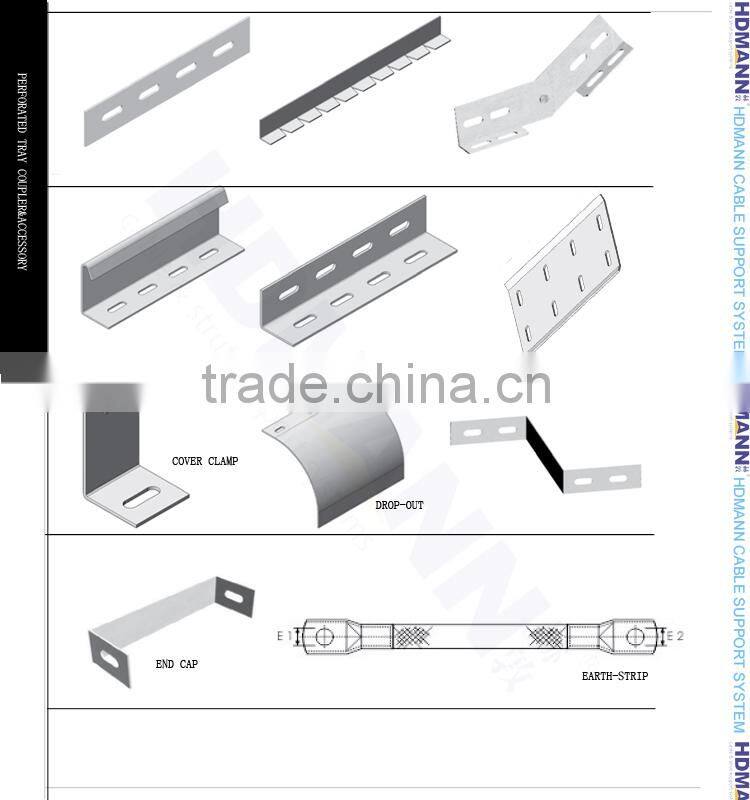

Perforated cale tray coupler&clamps
| Table of perforated cable tray dimension&weight(kg/meter) | |||||||
| W*H/Thick | 0.8 | 1 | 1.2 | 1.5 | 2 | 2.5 | |
| 50*50 | Lid | 0.53 | 0.66 | 0.79 | 0.99 | 1.32 | 1.65 |
| Tray | 1.17 | 1.48 | 1.78 | 2.23 | 2.97 | 3.71 | |
| 75*50 | Lid | 0.69 | 0.87 | 1.04 | 1.3 | 1.73 | 2.16 |
| Tray | 1.35 | 1.69 | 2.03 | 2.54 | 3.38 | 4.23 | |
| 100*50 | Lid | 0.86 | 1.07 | 1.29 | 1.61 | 2.14 | 2.68 |
| Tray | 1.52 | 1.9 | 2.28 | 2.84 | 3.79 | 4.74 | |
| 150*50 | Lid | 1.19 | 1.48 | 1.78 | 2.23 | 2.97 | 3.71 |
| Tray | 1.85 | 2.31 | 2.77 | 3.46 | 4.62 | 5.77 | |
| 200*50 | Lid | 1.52 | 1.9 | 2.27 | 2.84 | 3.79 | 4.74 |
| Tray | 2.18 | 2.72 | 3.26 | 4.08 | 5.44 | 6.8 | |
| 250*50 | Lid | 1.85 | 2.31 | 2.77 | 3.46 | 4.62 | 5.77 |
| Tray | 2.5 | 3.13 | 3.76 | 4.7 | 6.26 | 7.83 | |
| 300*50 | Lid | 2.18 | 2.72 | 3.26 | 4.08 | 5.44 | 6.8 |
| Tray | 2.84 | 3.54 | 4.25 | 5.32 | 7.09 | 8.86 | |
| 350*50 | Lid | 2.51 | 3.13 | 3.76 | 4.7 | 6.26 | 7.83 |
| Tray | 1.98 | 3.96 | 4.75 | 5.93 | 7.91 | 9.89 | |
| 400*50 | Lid | 3.54 | 4.25 | 5.32 | 7.09 | 8.86 | |
| Tray | 4.37 | 5.24 | 6.55 | 8.74 | 10.92 | ||
| 450*50 | Lid | 3.96 | 4.75 | 5.93 | 7.91 | 9.89 | |
| Trya | 4.78 | 5.74 | 7.17 | 9.56 | 11.95 | ||
| 500*50 | Lid | 4.37 | 5.24 | 6.55 | 8.73 | 10.92 | |
| Tray | 5.19 | 6.23 | 7.79 | 10.39 | 12.98 | ||
| 550*50 | Lid | 4.78 | 5.73 | 7.17 | 9.56 | 11.95 | |
| Tray | 5.61 | 6.73 | 8.41 | 11.21 | 14.01 | ||
| 600*50 | Lid | 5.19 | 6.23 | 7.79 | 10.39 | 12.98 | |
| Tray | 6.02 | 7.22 | 9.03 | 12.03 | 15.04 | ||
| 650*50 | Lid | 5.6 | 6.73 | 8.41 | 11.21 | 14.01 | |
| Tray | 6.43 | 7.71 | 9.64 | 12.86 | 16.07 | ||
| 700*50 | Lid | 6.02 | 7.22 | 9.03 | 12.03 | 15.04 | |
| Trya | 6.84 | 8.21 | 10.26 | 13.68 | 17.1 | ||
| 750*50 | Lid | 6.43 | 7.71 | 9.64 | 12.86 | 16.07 | |
| Trya | 7.25 | 8.7 | 10.88 | 14.51 | 18.13 | ||
| 800*50 | Lid | 6.84 | 8.21 | 10.26 | 13.68 | 17.1 | |
| Tray | 7.67 | 9.2 | 11.5 | 15.33 | 19.17 | ||
| 850*50 | Lid | 7.25 | 8.7 | 10.88 | 14.51 | 18.13 | |
| Tray | 8.08 | 9.69 | 12.12 | 16.16 | 20.2 | ||
| 900*50 | Lid | 7.67 | 9.2 | 11.5 | 15.33 | 19.16 | |
| Tray | 8.5 | 10.19 | 12.74 | 16.98 | 21.23 | ||
Finishes&materials: HDG, Pre-galvanized, Electronic-galvabized, Powder-coating, stainless steel 304/316, GI
Lenghth: Maximum 3000mm

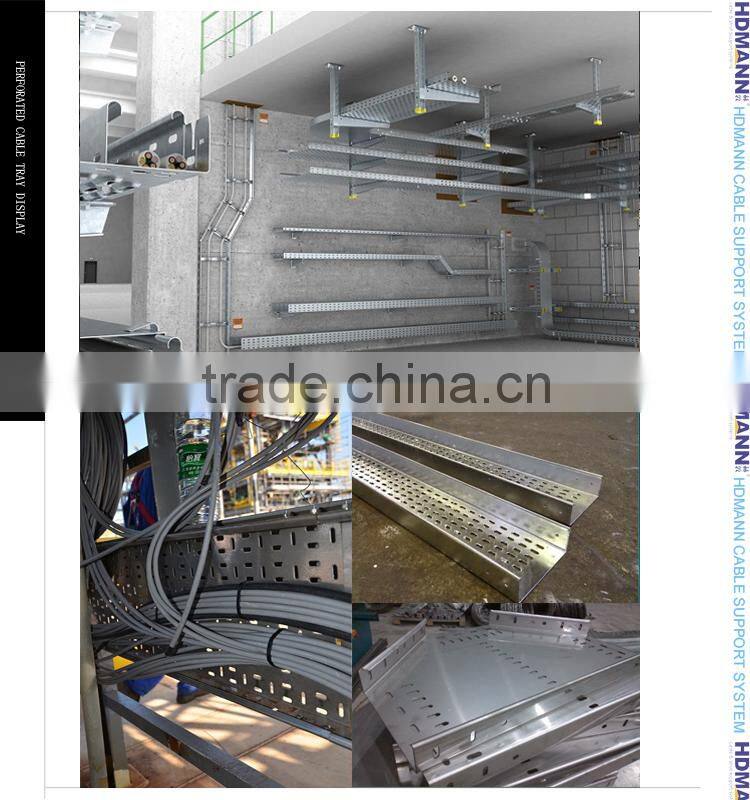

Real perforated cable tray display
Production line
Loading site
HDMANN INDUSTRY CO., LTD---CABLE SUPPORT&FRAMNG SYSTEM
CHINA LEADING OEM SUPPLIER IN THE LINE OF CABLE SUPPORT
CERTIFICATION
What is the type of our bussines?
We are a exporter and manufacturer, and have factories in China.
What are the trading terms we practice?
Generally, we practice FOB/CIF/C&F and DAP.
What are the payment terms we accept?
T/T, L/C, NEGOTIABLE
What is the delivery time?
Generally, it would take 10-20 days to finish the production for normal order quantity.
Can we provide the samples?
Yes, sample is free.
