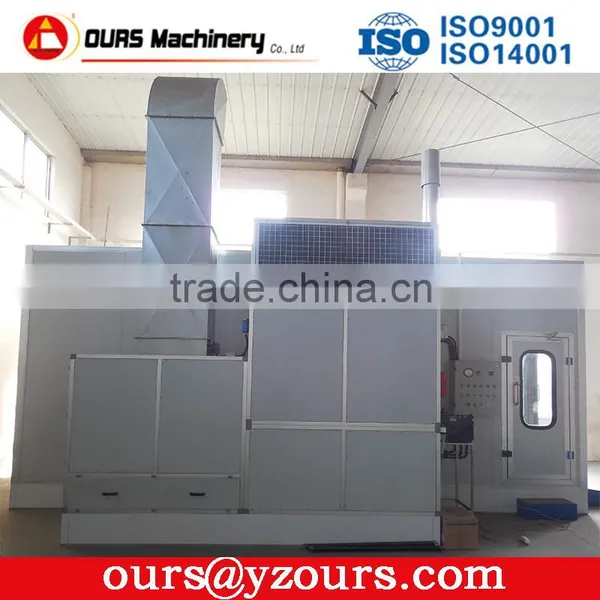

Specification (European Design)
Outside size:(mm) |
7110x5800x3810(LxWxH) |
Inside size:(mm) |
7000x4000x2800(LxWxH) |

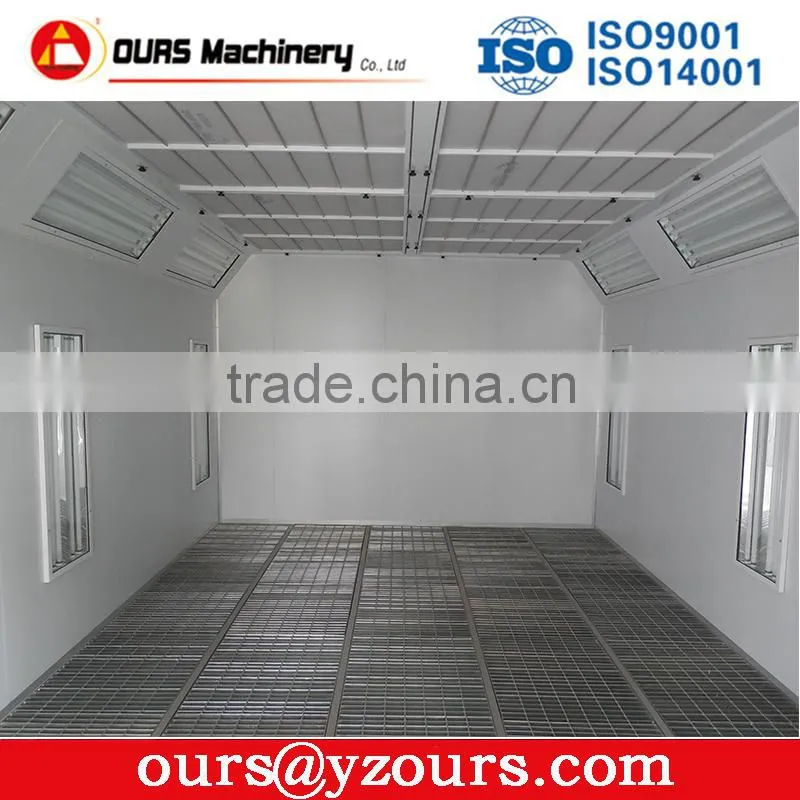

Foundation and floor |
Foundation |
Adopt galvanized bending forming, more durable and strong. Full grid, the grids are suppressive type of steel grating instead of traditional twisted steel for the cross bar steel grating. The biggest features for it are beautiful, durable and better force bearing. |
|
Surface area of foundation |
27 M²(full galvanized grids) |
||
Metal basement |
350mm height, the ventilation effect is better than traditional spray booth. |
||
Drive-in ramps |
3 big drive-in ramps + 2 side ramps, has multi-angle drive-in function, each size: 2000x1030mm, diamond plate structure. |
||
Wall and door |
Wallboard and roof panel |
High quality double construction fireproof insulation rock wool, thickness: 50mm |
|

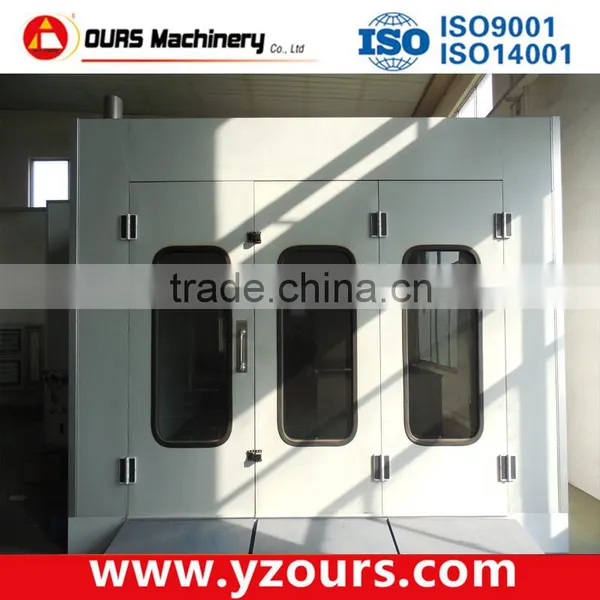

3-folded entrance door with safety glass window |
1set, size: 3200x2700 mm(B x H), tempering glass observation window , size is bigger and view is better than traditional spray booth. |
||
Operator’s door with safety glass window |
800x2000mm(B x H)the top of service door installs door closer to close the door automatically |
||
Spray gun hanging system |
Install hanging arm in cabin, convenient for operators to hang spray gun, etc. |
||
Lighting |
Ceiling lighting |
8units,each 4 x 58 W, total 1856w , adopt Germany OSRAM Lamp, grade of lighting box’s dustproof and waterproof reach IP54 grade. |
|
Side lighting |
8units,each 2 x 58 W, total 928w, adopt Germany OSRAM Lamp, grade of lighting box’s dustproof and waterproof reach to IP54 grade. |
||
Brightness |
≥1500 LUX |
||
Filtration system |
Pre-filters |
EU3 grade pocket filter, filter effect is much better |
|
Ceiling filter |
EU5 grade high efficient filter |
||
Bottom filter and exhaust filter |
Fibreglass paint-stop filters, G2 grade |
||
Ventilation system |
Inlet fan (Direct drive motor) |
Adopt big impeller turbo fan, Germany SIEMENS Brand motor, 11KW,6-pole motor, 970RMP, 380V,50HZ |
|
Outlet fan(Direct drive motor) |
Adopt big impeller turbo fan, Germany SIEMENS Brand motor, 11KW,6-pole motor, 970RMP, 380V,50HZ |
||
Painting and baking exchange system |
Solenoid valve+ pressure adjustment control cylinder driven damper exchange |
||
Total fan capacity |
32000m³/h |
||
Air flow speed in empty booth |
0.30m/s , inverter control |
||
Heating system |
Heating exchanger material |
Adopt high efficient heat-resistant stainless steel as cycling heat exchanger |
|
Heating exchanger capacity |
320KW(340.000Kcal/H) |
||
Burner model |
Adopt Italy RIELLO two range diesel burner RL34-2(340.000kcal/H),quicker heating and much better effect, more rest assure for quality |
||
Heating time |
2-4 minutes( from 20°C to 60°C) under baking status, the max baking temperature is 80°C |
||
Energy-saving system |
Model E-32000 |
When warm painting, the energy-saving system can collect exhaust air’s energy to heat the cold fresh air, then through second heating by furnace, the temperature of air in cabin will be increased quicker, more energy-saving, more environmental |
|
Control system |
Control system |
Inverter control system |
|
PLC controller |
Yes, PLC control, more reliable, lower breakdown rate |
||
Human-computer interface touching screen control system |
Yes, touching screen control, easier to operate |
||
Ceiling and floor filter change reminder function |
Ceiling filter and floor filter install differentiate pressure transmitter, when the ceiling and floor filter suck dust and paints to certain level, the control system will remind user to change filter humanely. |
||
Inverter control |
Inverter control , more energy-saving, more economic |
||
Function |
Painting, warm painting, baking, leveling, emergency stop switch, inverter, pressure adjust balance, failure indication, over-temperature alarm indication, baking delay stop protection |
||
