Economy Paint Booth
US$ 100 - 10,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, paint booth
Substrate:
Other, Stainless Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Industrial Spray Booth Bus Spray BoothUS$ 10,000 - 100,000MOQ: 1 Unit -
CE Certification and Spray Booths Type Bus Spray BoothUS$ 10,000 - 100,000MOQ: 1 Unit
-
Car Spray Painting MachineUS$ 1,000 - 100,000MOQ: 1 Unit
-
Automotive Spray Paint EquipmentUS$ 1 - 100,000MOQ: 1 Unit
-
Liquid Painting Line, Electrostatic Liquid Painting EquipmentUS$ 10,000 - 10,000,000MOQ: 1 Set
Condition
New
Type
Other, paint booth
Substrate
Other, Stainless Steel
Coating
Powder Coating
Place of Origin
Jiangsu, China
Brand Name
jsours
Model Number
paint booth
Voltage
as per design
Power(W)
as per design
Dimension(L*W*H)
as per design
Weight
as per design
Certification
ISO
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Economy Paint Booth

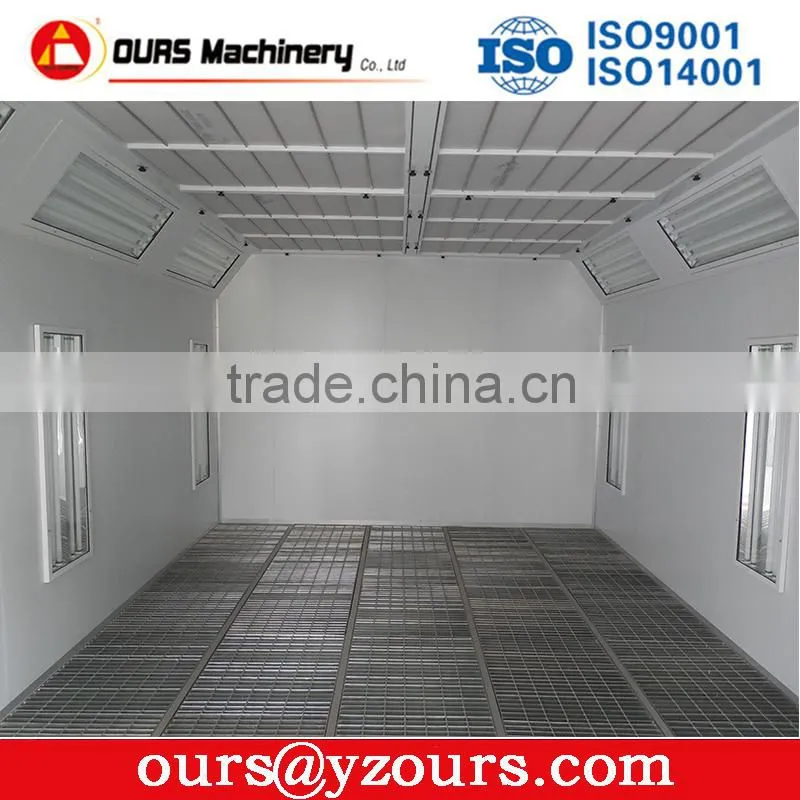

| Cabin System | 1.Wallboard | EPS (epispastics polystyrene) Colorful Steel Skin Heat Insulated Panel, Wall Boards: 70mm Thick, Ceiling Panel: 50mm Thick. Life Span:20 years | |||
| 2.Basement | Full Grid, Adjustable Height, Galvanized Steel Sheet Construction, Three Embossed Steel Ramps. | ||||

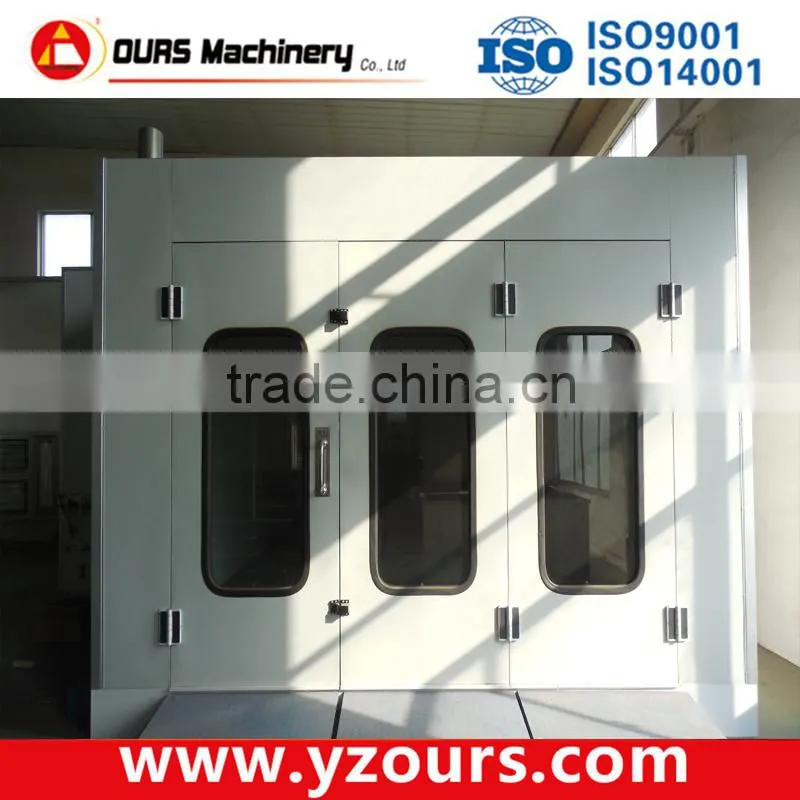

| 3.Enclosure | Sturdy body structure, especially the side door with a pressure lock which will automatically open when the pressure inside is over the limit | ||||

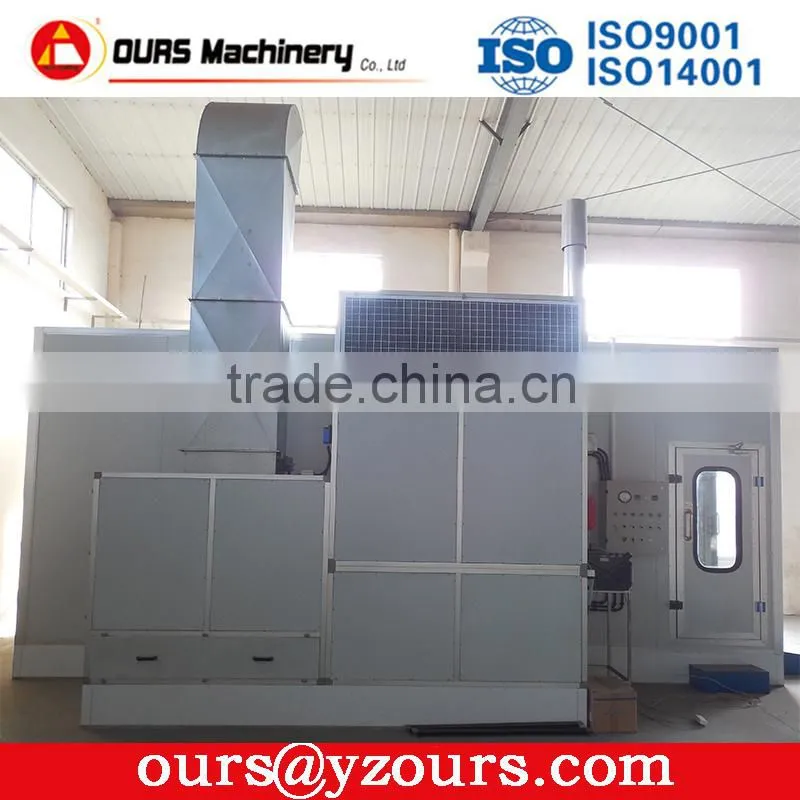

| Air Circulation System | Inlet Turbine Fan | Model: YDW4.5L | Outlet Turbine Fan | Model: 4-82-6.3E | |
| Capacity: 14000m3/h | Capacity: 30000m3/h | ||||
| Power: 4kw | Power: 15kw | ||||
| Pressure: 800Pa | Pressure:1236Pa | ||||
| Quantity: 2sets | Quantity: 1set | ||||
| The circulation system covers a set of automatic valve and two sets of manual valve. Manual adjustment valves are placed in inhaling and exhaust flue to control airflow volume and adjust pressure. A stainless steel trapezoid hood and a stainless cone hood are placed on the top of blow flue and exhaust flue separately. | |||||
| 40 pcs Ceiling Nozzles with 2 Centrifugal(power 1.5kw/set) fans drying water paint | |||||
| Air Purification system | Dual Filtering Structure, The Primary Filter Can Capture Granules Larger than 15 μm. Ceiling Filter Capture Granules Bigger than 5μm. The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%. | ||||
| Heating System | 1.Burner | Italy Riello Brand,RG5S Diesel Burner, 260000Kcal/h, 20N Damp Motor | |||
| 2.Heat Energy Converters | Stainless Steel, Argon Arc Welding, Heat Exchange Rate 85% | ||||
| Max Temp:80,Heating Time: 4-6min(20-60.C), Fuel Consumption: 6-8kg/vehicle | |||||
| Lighting System | Ceiling Light: 32 pcs 36w Philips Lamp; Bottom Light: 32 pcs 20w Philips Lamp, 800 Lux | ||||
| Electric Controlling System | PLC Controlling, Soft Touching Button, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm | ||||

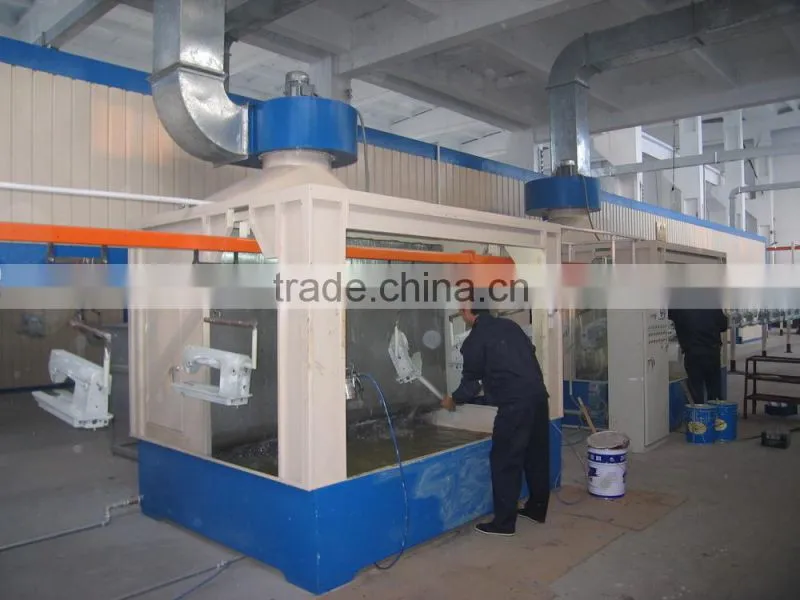

| Environmental Conversation System | No-pump water curtain paint for mist filtering device hat can reduce more than 98% of the fog without the trouble of replacing drying-method filter by fully mixing fog, water and air, and ensures a qualified exhaust according to the relevant state standards | ||||
