cable ladder

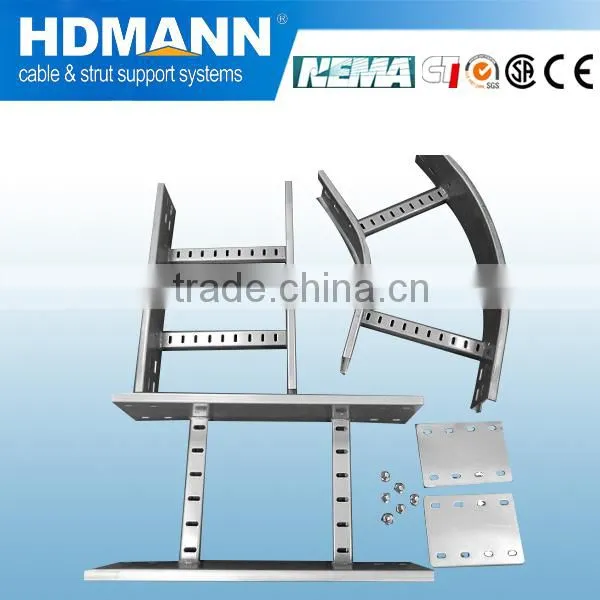

HDMANN CABLE LADDER TRAY SYSTEM
HDMANN cable ladder is constructed of precision engineered, high quality, welded steel wire and is the result of decades of research gained from the installation of hundreds projects across the globe.
Our cable ladder is subjected to testing at every stage of the manufacturing process. In actual use, it has performed in a wide variety of office buildings and is widely used for from heavy power cable pathways on oil drilling platforms to data installation above the ceiling.
Standard Cable ladders are alailable in depths of 25-150mm, and in a variaty of widths, ranging from 30-1000mm and thickness are 1.5-3mm. The standard finish is electroplared zinc after fabrication. A variaty of other finishes available are including hot dipped galvanized after fabrication, pre-galvanized as well as multitude of colors in powder coating. The wire mesh cable tray is also available in type 304 and 306 stainless steels for extremely corrosive enviroments.
As for the cable ladder installation, a complement of accessories and brackets used for cable ladder installation are provided. See our catalogue unpon request.

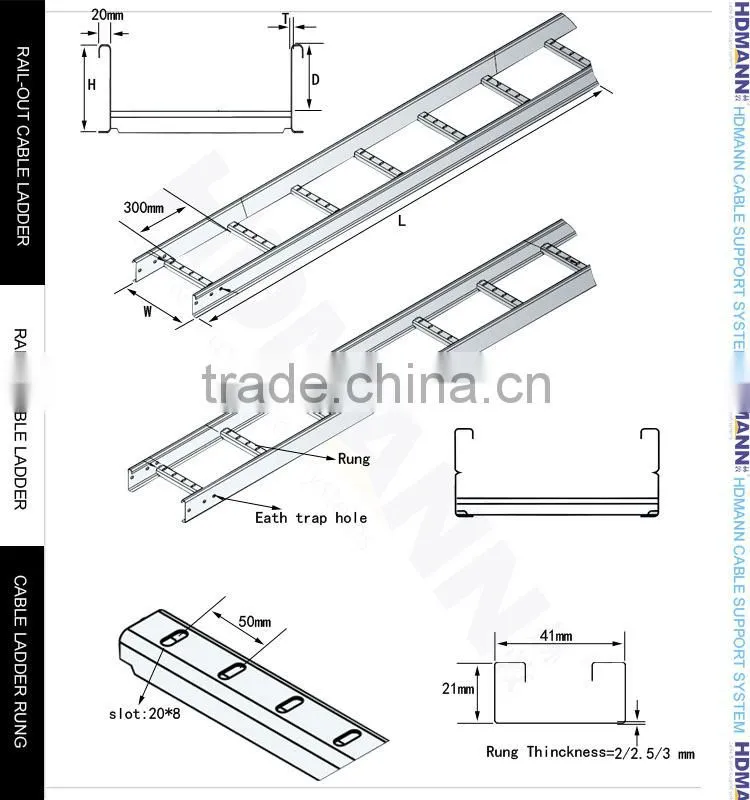

CABLE LADDER STANDARD SPECIFICATION
| Table of cable ladder side rail specification | |||
| Side rail height(H)/mm | Steel thickness(T)/mm | Aluminium weight/(kg/meter) | Steel weight/(kg/meter) |
| 100 | 2 | 0.9 | 2.04 |
| 100 | 2.5 | 1.18 | 2.55 |
| 100 | 3 | 1.3 | 3.06 |
| 120 | 2 | 1 | 2.36 |
| 120 | 2.5 | 1.25 | 2.94 |
| 150 | 2 | 1.2 | 2.83 |
| 150 | 2.5 | 1.45 | 3.53 |
| 150 | 3 | 1.75 | 4.24 |
| 200 | 2 | 1.5 | 3.61 |
| 200 | 2.5 | 1.9 | 4.51 |
| 200 | 3 | 2.2 | 5.42 |
Cable ladder width: Width(w) is available upon request and is determinated by the rung lenghth.
Finishes&materials: HDG, Pre-galvanized, Electronic-galvabized, Powder-coating, stainless steel 304/316, GI, Aluminium
Lenghth: Maximum 6000mm
Non-sandard sizes are available upon request.

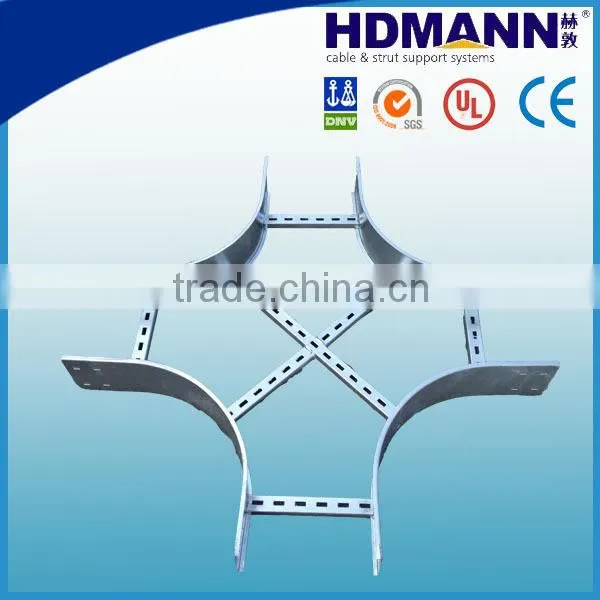

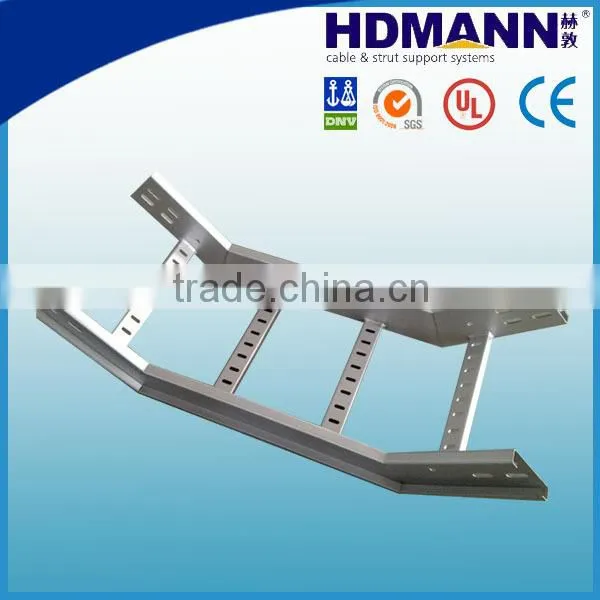

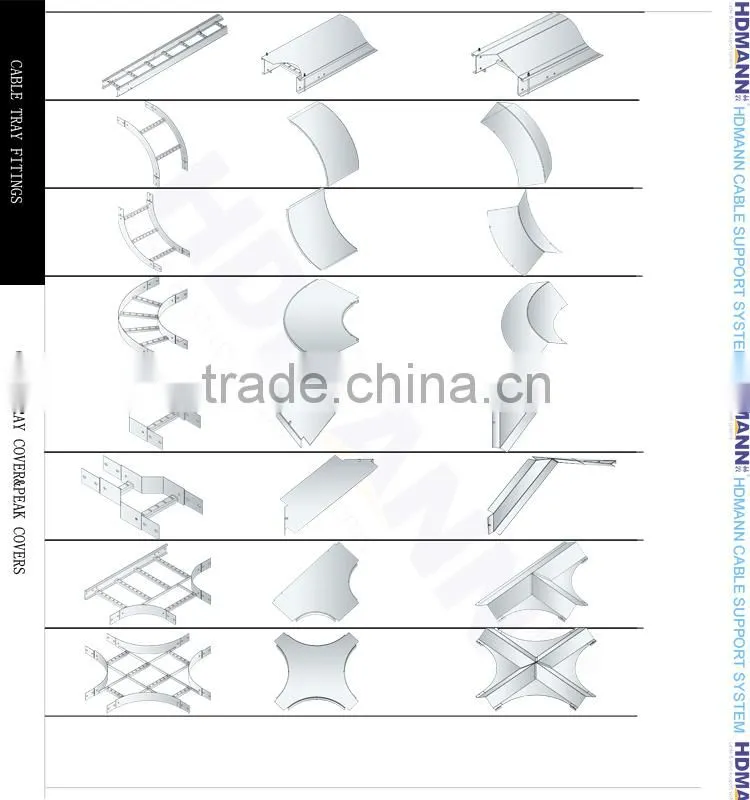

CABLE LADDER FITTINGS&COVERS

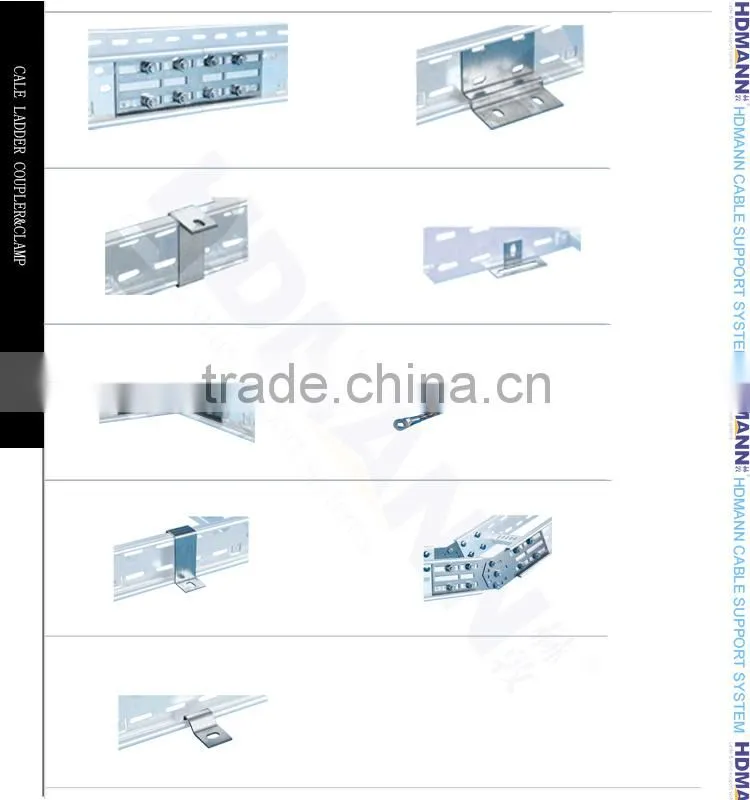

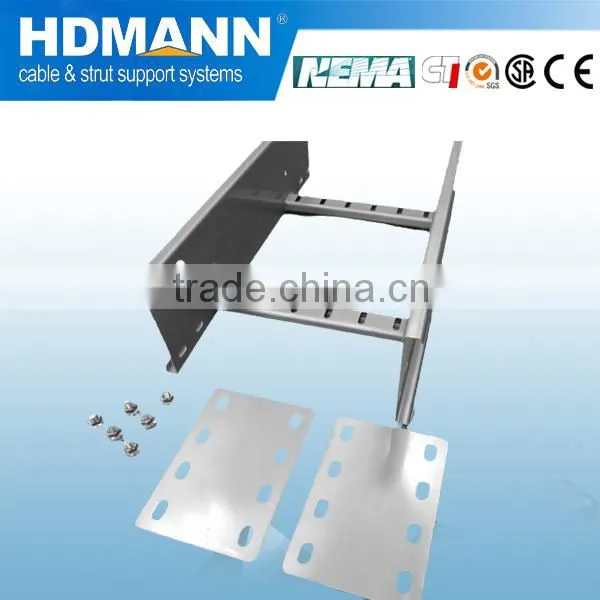

CABLE LADDER COUPLER&CLAMP

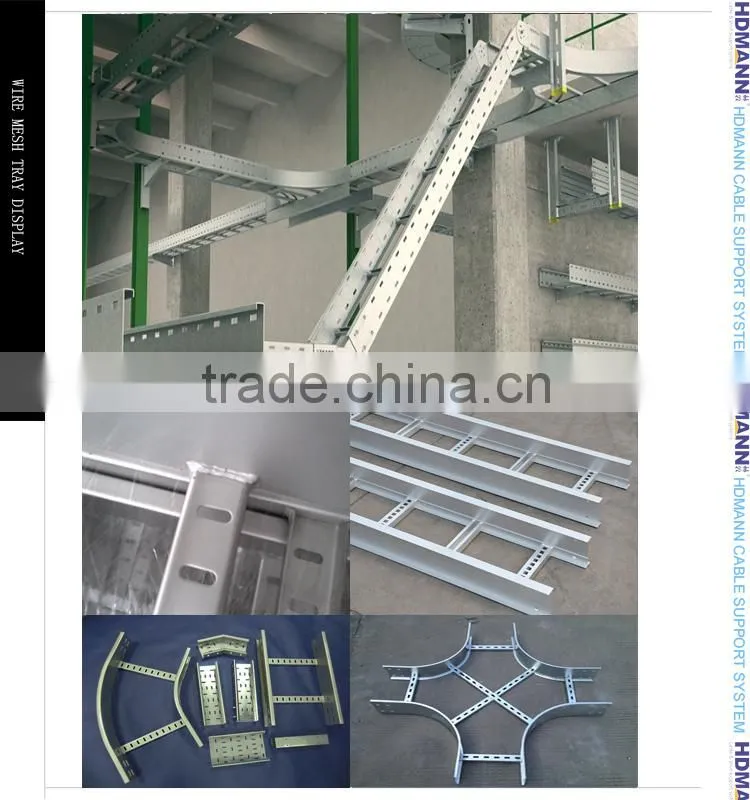

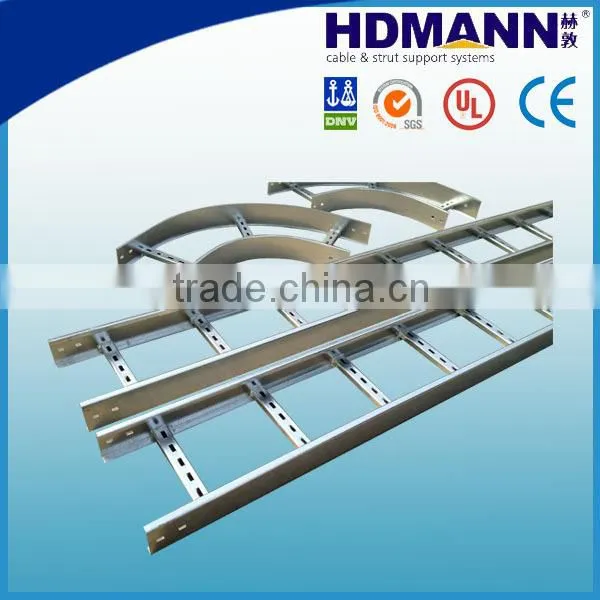

REAL CABLE LADDER DISPLAY

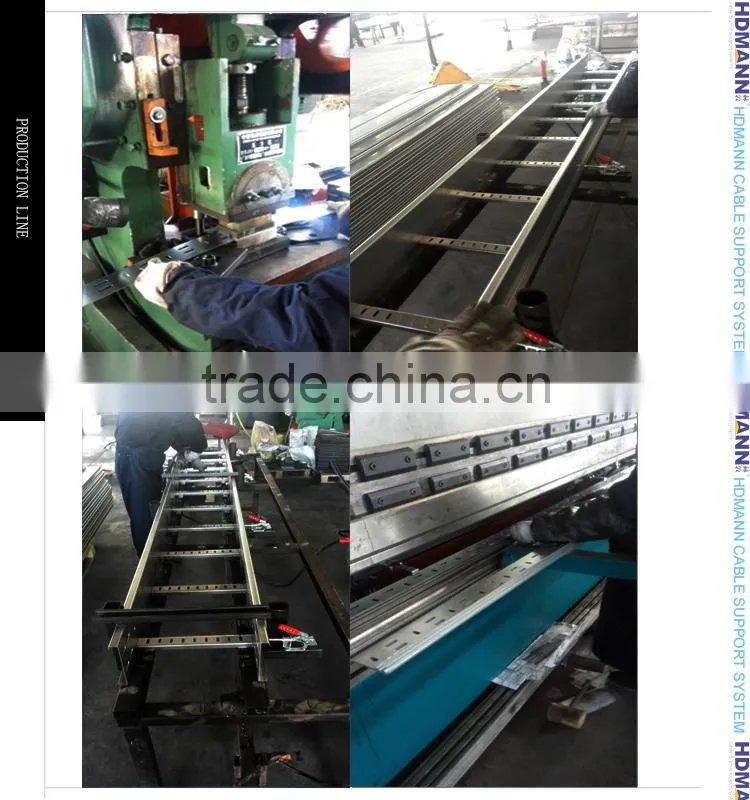

PRODUCTION LINES OF CABLE LADDER

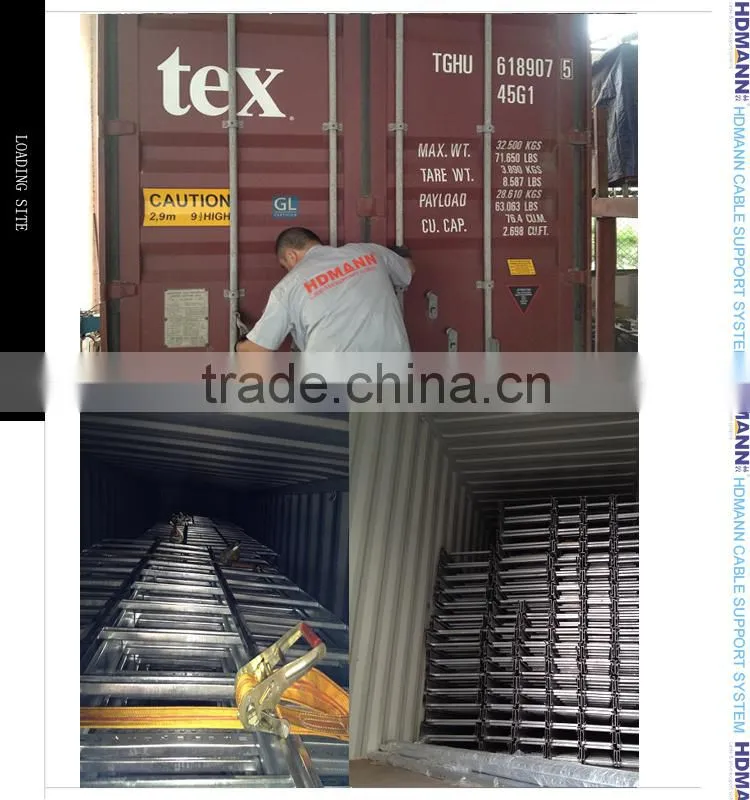

LOADING SITE
HDMANN INDUSTRY CO., LTD.---CABLE SUPPORT AND FRAMING SYSTEM
CHINA LEADING OEM SUPPLIER
HDMANN CERTIFICATION
What is the type of our bussines?
We are a exporter and manufacturer, and have factories in China.
What are the trading terms we practice?
Generally, we practice FOB/CIF/C&F and DAP.
What are the payment terms we accept?
T/T, L/C, 30% down payment and 70% against B/L, NEGOTIABLE
What is the delivery time?
Generally, it would take 10-20 days to finish the production for normal order quantity.
Can we provide the samples?
Yes, sample is free.
