Product Application
Single Point Natural Diamond Dressers are the most widely used dressing tools for truing grinding wheels. In most cases, they are the only ones which will produce the required results. When chosen carefully and used correctly, they can also be the most economical. Single point diamond dressers can be manufactured according to your specifications. Single point diamond dresser shanks can be modified or designed to meet your specific requirements.

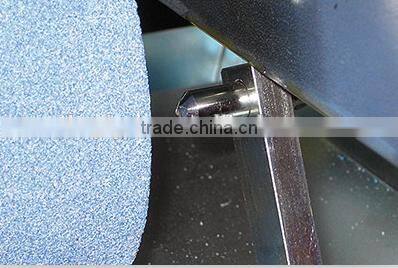

Use Tips
1. Choose the right size diamond for the wheel.

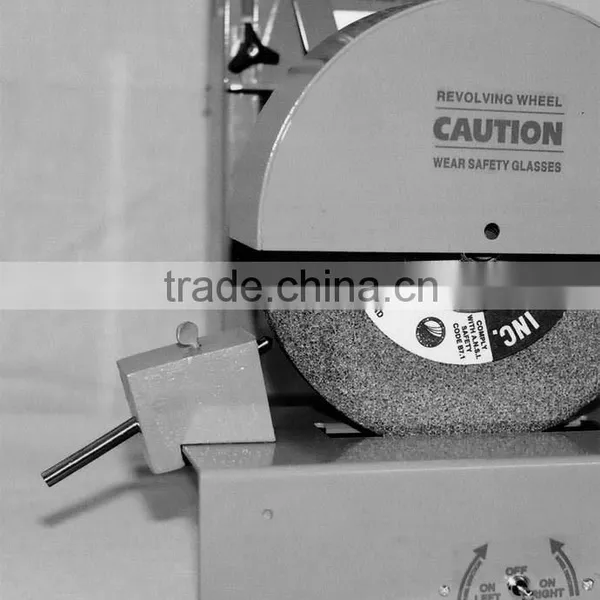

2. Mount the tool with minimum overhang to avoid vibration.
3. Mount only in the correct size hole (7/16" shank in 7/16" holder).

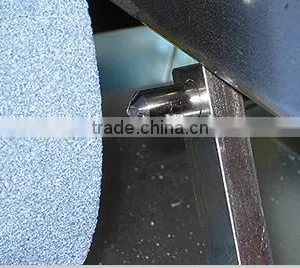

4. Set point at 10 to 15 degree angle pointing toward direction of wheel rotation.
5. Turn the tool frequently 20 to 40 degrees to maintain a sharp point. You cannot turn too often.
6. Flood tool with coolant when grinding wet. Always turn coolant on before starting to dress, never during. Only dress dry if you grind dry.
7. Begin to dress at the high point on the wheel. Proper 10 to 15 Degrees
8. Dress at regular short intervals.
9. Take light cuts, .001" or less per pass.
10. Do not overuse the diamond

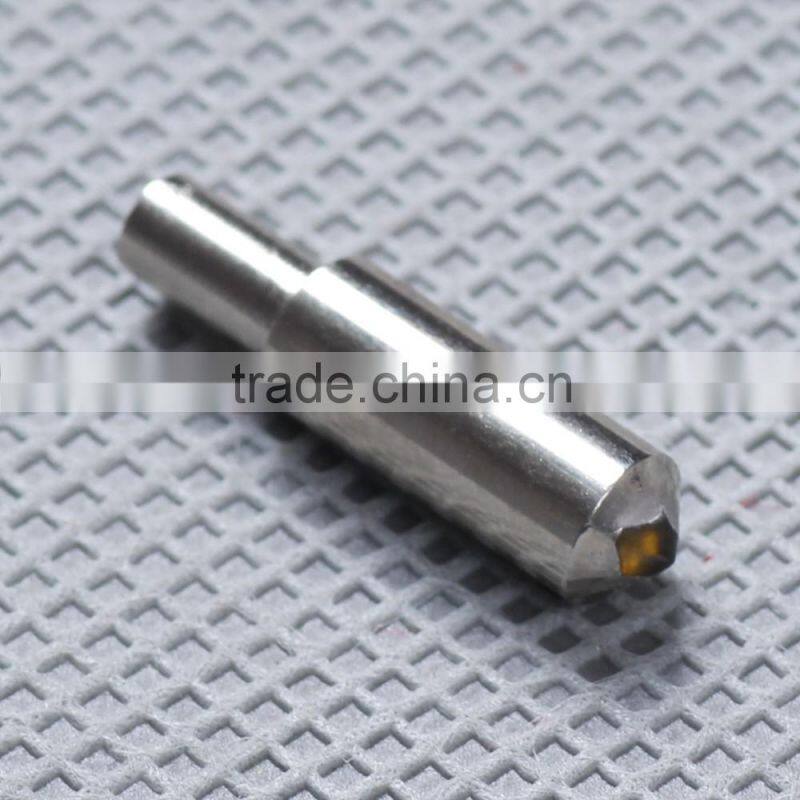

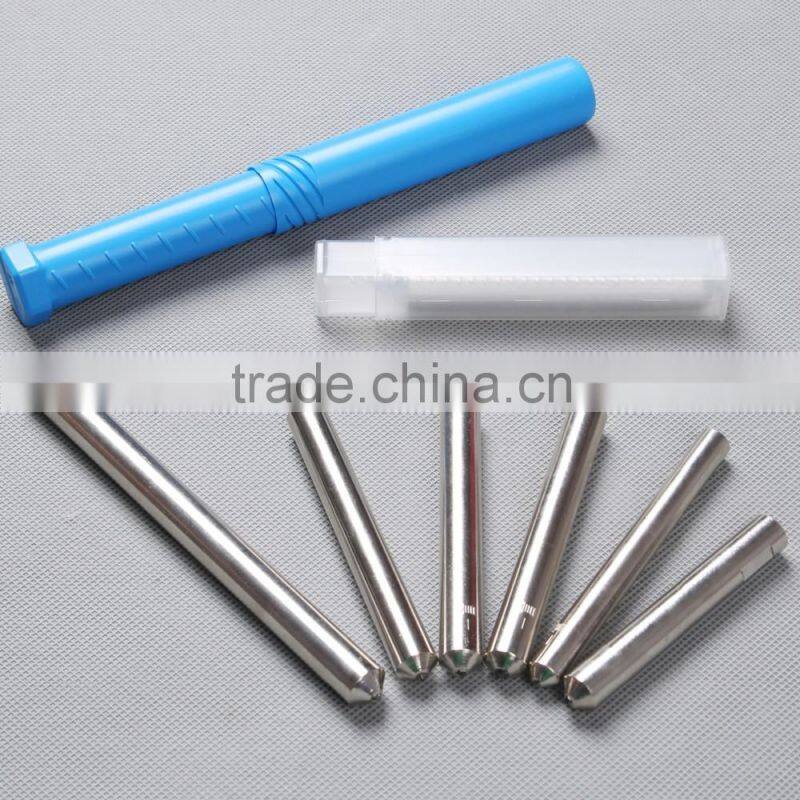

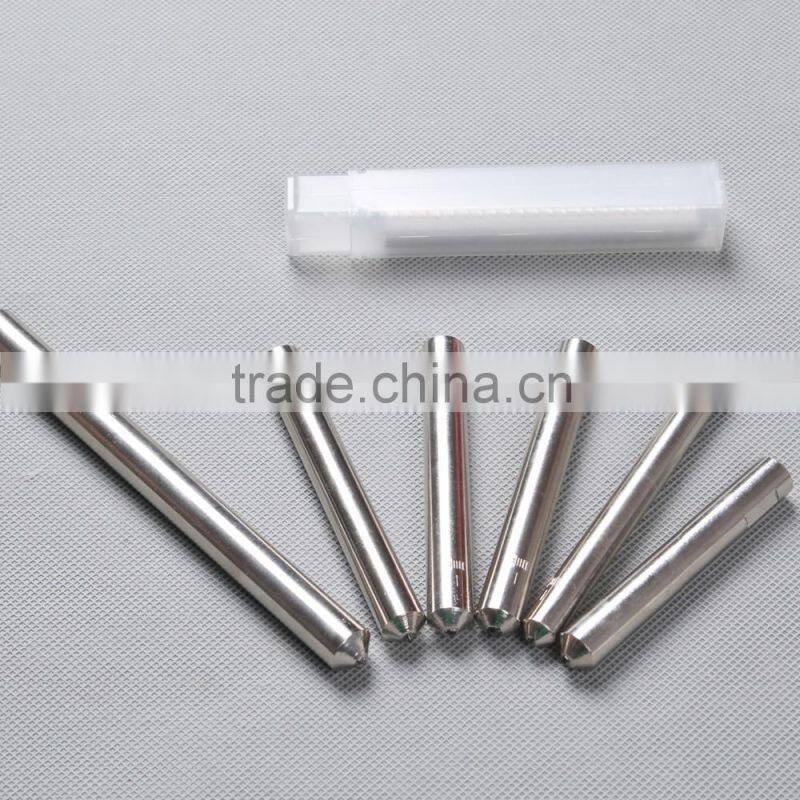

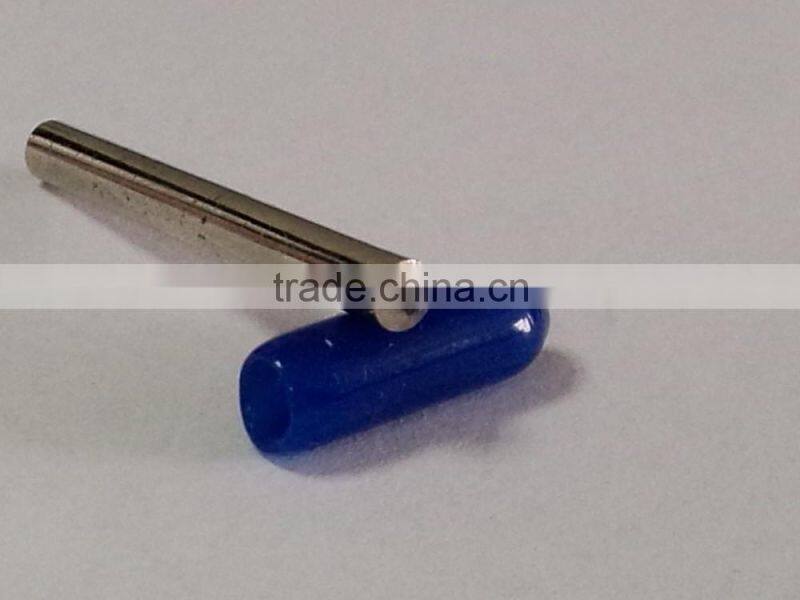

Straight shank
Name: single point diamond dresser - General type
Brand: YIYAN
Original: China(Mainland)
Shank sizes: Ø10mm*50mm, Ø12mm*100mm other shank types, pls kindly contact us freely.
Tip material: natural diamond and artifical diamond
Carat: 0.1ct-5ct

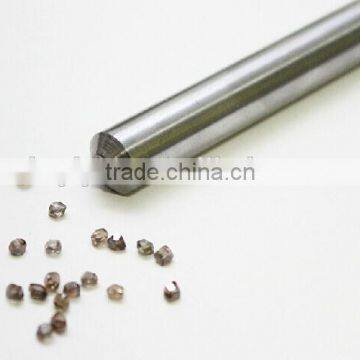

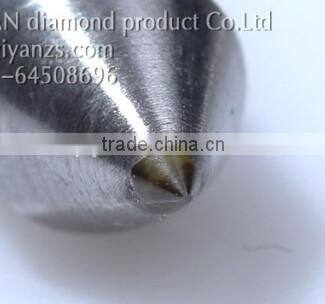

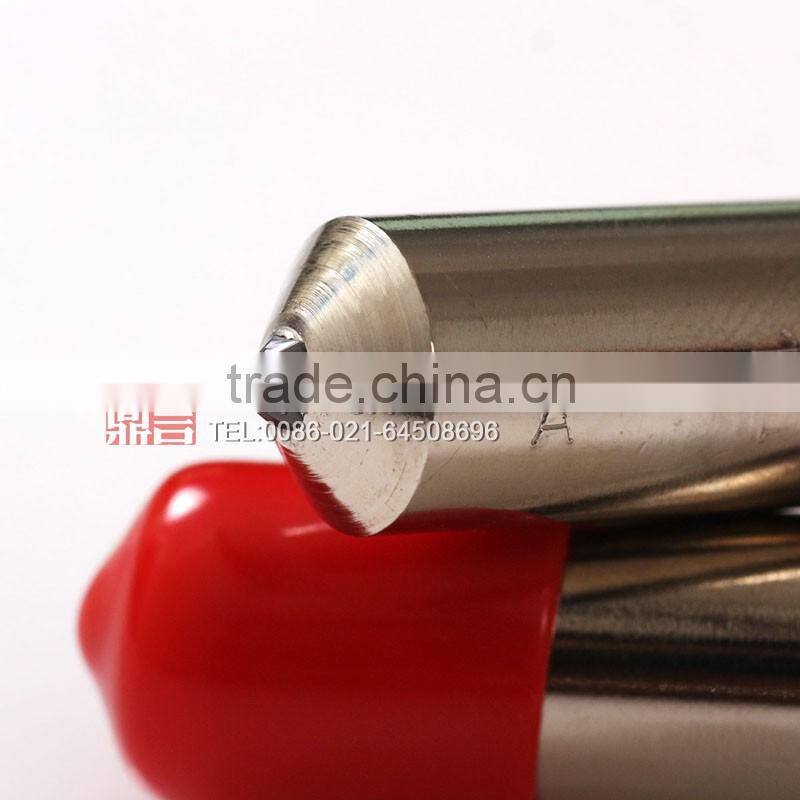

Cone tip & Phono point diamond dresser
Name: Phono point diamond dresser
Brand: YIYAN
Original: China
included Angle: 60°, 75°, 90°
Tip material: diamond
CNC stone needle dresser
Name: diamond stone needles
Brand: YIYAN
Original: China
Mono diamond tip diamond dresser for stone, marble engraveing, carving, scribing, drawing bits with 104 degrees, image, lines, letters.
Other sizes or types, pls kindly contact us!
Metal drag engraver bit
Name: natural diamond drag bit
Brand: YIYAN
Original: China
Shank sizes: 3mm *50mm, 3.175 *115mm
Tip Degree: 60° -170 °
Use on: Metal, glass, stone
OEM & ODM is avaiable. Contact us freely
Customized Service
* All kinds of diamond dresser is OK.
* Sample testing support.
* View our Factory.

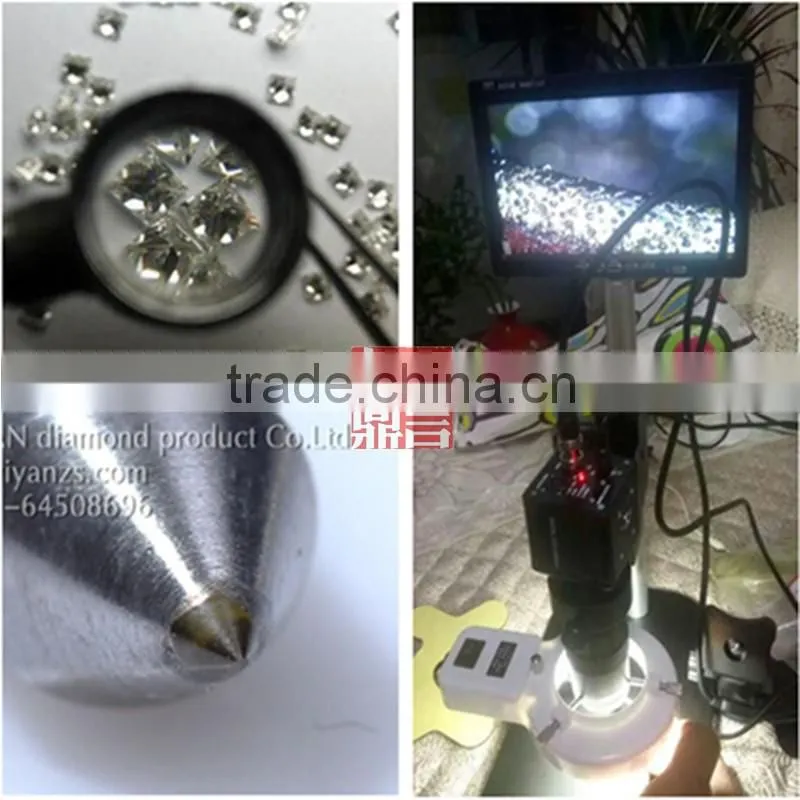

Material Service
* Quality diamond choose
* Quick and perfect production
* After-sale use and feedback service
Forming diamond dresser
Over 90% Response Rate

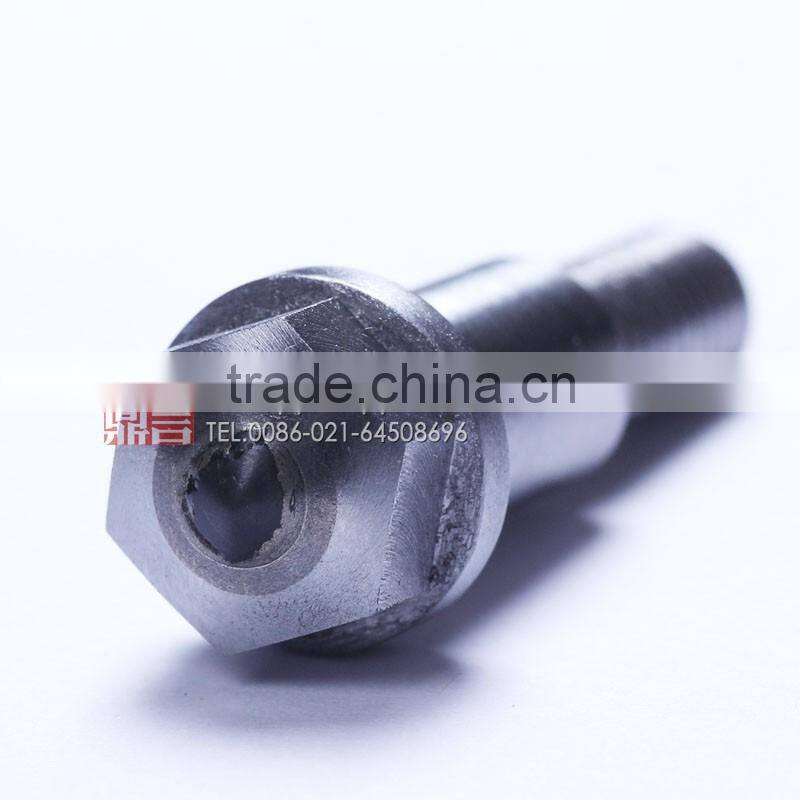

T bar diamond surfacing dresser
Over 90% Response Rate
Sintered diamond dresser
Over 90% Response Rate
