PVC insulation tape
General description of PVC insulation tape
PVC insulation tape is using soft PVC film as backing material and coated with rubber based adhesive. We have both PVC insulation tape with flame retardant and non-flame retardant.
Detailed information of PVC insulation tape
Name |
PVC Electrical insulation tape |
|
structure |
PVC film+Rubber adhesive |
|
Color |
Single color(black/white/yellow/red/green, etc.), clear color, printed color, special color(like yellow+green) |
|
Standard |
Flame retardant |
Non flame retardant |
Thickness |
100mic-400mic |
|
Inner core size |
25mm/32mm/38mm/76mm |
|
Surface |
Glossy |
Matte |
Package |
Standard:one roll with film wrap+label, 10 rolls in a shrink Special: cardboard or customerized |
|
size |
Cut roll:19mmx20m/10m etc. Log roll:1250mmx9/18m (longest 35m) |
|
Recommend type PEI13FR |
0.13mmx19mmx20m black flame retardant |
|
Popular Items of PVC insulation tape
Item name |
Part No. |
Adhesive |
Total thickness |
Flame retardant or NOT |
PVC insulation tape |
PEI13 |
Nature rubber adhesive |
0.13mm |
NO |
PVC insulation tape |
PEI13FR |
Nature rubber adhesive |
0.13mm |
YES |
PVC insulation tape |
PEI15 |
Nature rubber adhesive |
0.15mm |
NO |
PVC insulation tape |
PEI15FR |
Nature rubber adhesive |
0.15mm |
YES |
PVC insulation tape |
PEI18 |
Nature rubber adhesive |
0.18mm |
NO |
PVC insulation tape |
PEI18FR |
Nature rubber adhesive |
0.18mm |
YES |
Specifications of PVC insulation tape
For example:PEI13FR
Adhesion |
1.6 N/cm |
Tensile |
17M/CM up |
Elongation |
160% |
Temperature |
80 ℃ |
Voltage Breakdown |
5.5KV |
Flame retardant |
Yes |
Applications of PVC insulation tape
Applying to electric wire, cable winding, transformer, power distribution equipment, automobile circuit, electrical engineering, household electrical, motor, capacitor, regulators etc all kinds of motor, electronic parts of the insulation fixed use.
Package of PVC insulation tape
Cut roll
Producing process of PVC insulation tape
TRADE TERMS
Payment: T/T, Western Union, Paypal, Escrow.
Production Lead Time: 10 - 30 DAYS AFTER DEPOSIT PAYMENT.
Shipping Method: Sea, air, courier, etc or as your requirements.
Trade terms: EXW, FOB, CFR, CIF.
Guide of Order
1. Inquiry about our products |
| 2. Negotiation with our sales department |
| 3. We make the proforma invoice for customers |
| 4. Customer make the payment of the deposit |
| 5. We produce the adhesive tapes |
| 6. Customer pay the balance money |
| 7. Ship the goods |
| 8. We send the documents |
| 9. Goods arriving your port |
FAIR

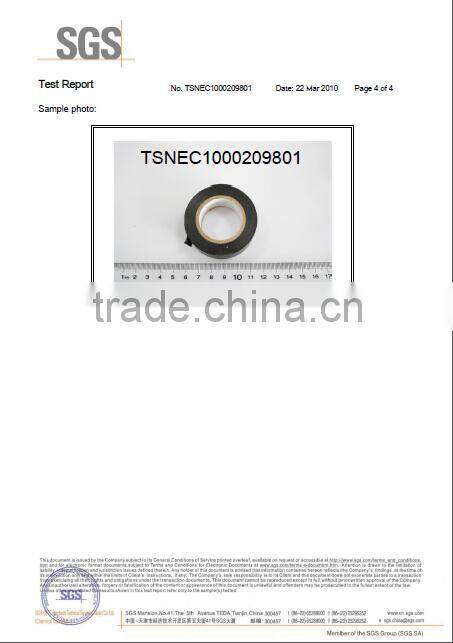

Certificate
