Specifications
Widely used in a variety of springs, shock absorbers, and other industries.Application:

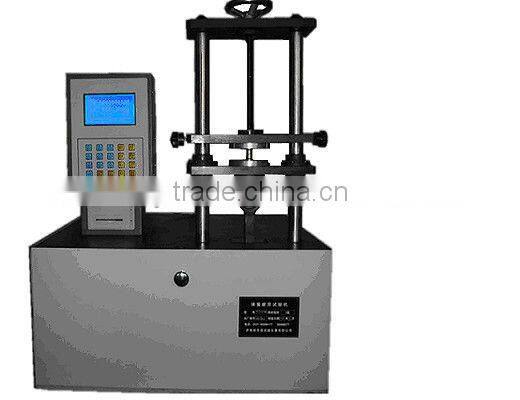

This machine is mainly used for a variety of coil springs, disc springs and shock absorbers such as fatigue life test. Widely used in a variety of springs, shock absorbers, and other industries.
Function characteristics:
(1) According to the technical requirements of the spring, the amplitude and frequency of the adjusting spring.
(2) LCD display, the number of tests and frequency requirements may enter the program, auto-complete.
(3) preset number of tests automatically shut down.
(4) is connected by a motor, reducer, the cam rod reciprocates, to achieve the compression of the spring movement.
(5) operation is simple, reliable and stable operation.
Technical data:
Max testing force |
1000N |
Specimen maximum length |
180mm |
Specimen maximum diameter |
D50 |
Test frequency |
0~3Hz |
Amplitude |
Max:50mm |
Counter capacity |
99999999 |
Specimen Volume |
1 |
Voltage |
220VAC 50Hz |
Power |
0.8kW |
Count down accuracy |
±1 |
