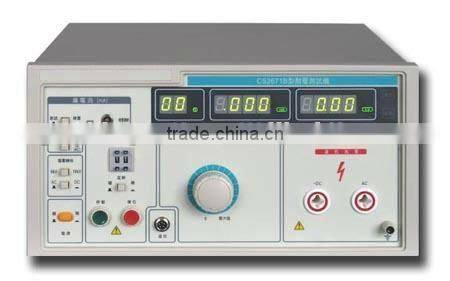

Resistance of Voltage Tester with Digital Display

Name: Resistance of Voltage Tester with Digital Display
Brand: PAC KING
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Product Details

Place of Origin:	Beijing, China	Brand Name:	PAC KING	Model Number:	RPT-DD-2671B
Power:	Other, Electronic, 220V	Usage:	Other, Voltage Tester

This instrument could test the voltage.

Features

1) Protection of high pressure breakdown.

2) High voltage, small current and more accuracy.

3) Time, test voltage and test current could display at the same time.

4) Tested by manual and remote distance.

Technical Data

Testing Range of Voltage AC/DC (kV)	0-10kV ± (5% + 5 letters)
Testing Range of Leak Current AC/DC (mA)	AC: 0.3-2/1-20/5-50 mA DC: 0.3-2/1-20mA ± (5% + 5 letters)
Preset Range of Alarm Value (Continuous Set) AC/DC (mA)	AC: 0.3-2/1-20/5-50 mA DC: 0.3-2/1-20mA ± (5% +5 letters)
Testing Range of Time	1-99s (continuous set) ± 1%
Transformer Capacity	500VA
Output Waveform	50Hz sine wave
Work Condition	Environment temperature: 0-40°C Relative Humidity: ≤ 75% Air Pressure: 101.25kPa
Volume (mm3)	375190280mm
Weight	20kg
Power	220V ± 10% 50Hz ± 2Hz
Accessories	1 test gun, 1 ground wire, 1manual, 1 warranty, 1 power line.

Beijing BCD Technology Co., Ltd.: Contact nameSusan Zhang; Phone86-10-56854586; Address2105, Floor 21, Bldg. 1, No. 8, Tonghui South Road
