Specifications
rectangle or V type guide rail.inverter control system, wide adjusting range, high precision.
Anti-dropping;
ISO
Welding Automation For Metal Pipes/Tanks/Vessels

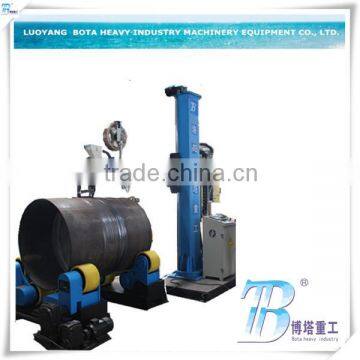

Introduction of Automatic Seam Welding Machine
It is the welding assistance equipment, whose machine head is equipped on the top of the boom, which can be elevated and retracted horizontal free by the rack and pinion, also rotated ± 180°;This machine can be used together with welding rotator, welding positioner and achieves the tank longitudinal and circle seam welding. According to the requirement, it can be adopted welding seam tracing and monitoring, welding flux recovery and feeding device. It has the structures of fixed type, fixed with rotation and moveable with rotation type.
Features of Automatic Seam Welding Machine
1. Auxiliary equipment for welding center.
2. Automatic welding manipulator can be adopted with various welding power
(Chinese or international famous brand) .
3. Stretching of cross boom adapts AC frequency converter stepless speed control and run with steady speed
4. Head equipped with electric cross slides, can adjust position of welding .
5. Chain break-resistant and anti-slip device in boom to guarantee safety. .
6. Braking device can ensure column work in safe environment.
7. Customized manipulator requirements are accepted.
8. Automatic flux feeding, recovering devices, wire feeder device, working platform and chair (Optional).
Options:
1. Universal Automatic Welding Machine
Technical Parameter of Universal Automatic Welding Machine
Universal Welding Column & Boom | ||||||
Model |
BCZQ1x1 |
BCZQ2x2 |
BCZQ3x3 |
BCZQ4x4—5x5 |
||
Lifting stroke(mm) |
1000 |
2000 |
3000 |
4000 |
||
Retracting stroke(mm) |
1000 |
2000 |
3000 |
4000—5000 |
||
Lifting speed(mm/min) |
1000 |
|||||
Retracting speed(mm/min) |
120-1200 |
|||||
Minimum distance between boom and track surface(mm) |
740(Movable with rotation) |
|||||
690(stationary with rotation) | ||||||
Boom end maximum loading(kg) |
80 |
|||||
Column revolving |
Manual revolve then locked by screw |
|||||
Trolley traveling |
Manual push then locked by screw |
|||||
Inner span of trolley rail (mm) |
1000 |
1500 |
1750 |
|||
Above are the standard parameter also we can design according to the customer requirement | ||||||
2. Heavy-duty Automatic Welding Machine
Technical Parameter of Heavy-duty Automatic Welding Machine
3. Manned Automatic Welding Machine
Technical Parameter of Manned Automatic Welding Machine
4. Futher Functionality
4.1 Fixed and manual rotating welding manipulator
Machine fixed on base and rotates by hand(cannot move)
4.2 Fixed and electrical rotating welding manipulator
Machine fixed on base and rotates by motor(cannot move)
4.3 Fixed and electrical moving welding manipulator
Machine fixed on trolley and moves by motor(cannot rotate)
4.4 Electrical moving and rotating welding manipulator
Machine fixed on trolley, moves and rotates by motors
4.5 Saw Welding Head and Flux Recovery Device
Application of Automatic Welding Machine
Package and Transport of Automatic Welding Machine
Our Services
9.1 Installation
Free installation and commissioning for foreign customers can be provided; board and
lodging costs are on the foreign customer.
9.2 Training
Free training for foreign customers, if required, also operation manual will be sent
along with the machine.
9.3 Warranty
Warranty period is one year. Provide longtime free technical advisory services and
Provide free technology consulting services During warranty period, free maintenance
and technical support can be provided. (Except man-made major damages or damages
arising from irresistible natural factors).
Taking Part in Essen Exhibition in Beijing
For more detailed information, please feel free to contact us.
