Specifications
IR Beam Sensor DetectorWaterproof for outdoor use
Anti-RFI/ EMI
Work with home alarm system

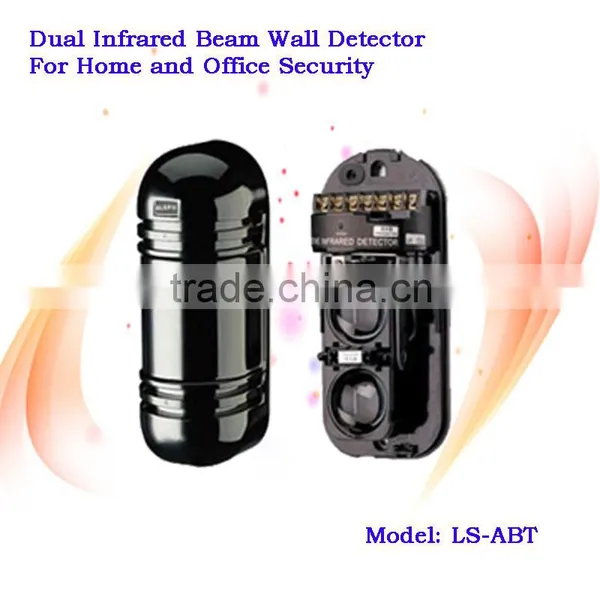

Outdoor Dual Infrared Beam Detector for Lenser Home Security Alarm System
Features:
1. Active security infrared beam alarm with digital frequency conversion
2.Transmission gain return circuit and auto-control to anti-rain and fog and snow.
3. Horizontal 180(± 90°) of optical axis
4. Vertical 24(± 12°) of optical axis adjust
5.Auto error code antijam technology.
6.Display voltage of flushbonding optical axis
7.Anti-tamper fucntion
8.Alarm: the indicator lights when alarm occurs
9.Compatible with other alarm systems
Model |
ABT-20 |
ABT-30 |
ABT-40 |
ABT-60 |
ABT-80 |
ABT-100 |
|
Guard distance |
Outdoor |
20 |
30 |
40 |
60 |
80 |
100 |
(M) |
Indoor |
60 |
90 |
120 |
180 |
240 |
300 |
Height (CM) |
17 |
17 |
17 |
17 |
17 |
17 |
|
No. of beam |
two beam |
||||||
Detection way |
Lights covered at the same time |
||||||
Light source |
infrared LED |
||||||
Alarm output |
Relay output 1C point implement AC/DC30 0.5A max |
||||||
Response speed |
50-700msec adjustable |
||||||
Working voltage |
DC12V~18v |
||||||
Current consumption |
50mA max. |
55mA max. |
65mA max |
||||
Temperature and humidity scope |
-25 °C ~ 55 °C-95%RH |
||||||

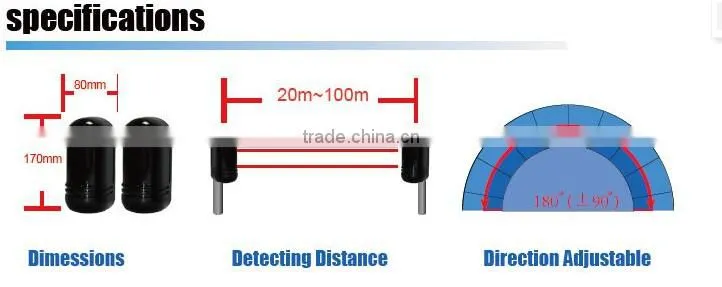

Dimensions |
190*75 *80 mm |
||||||
Forestall disassemble output |
Reply output 1b AC/ DC 30V 0.5A Max |
||||||
Optical axis adjustment (H) |
180°(± 90°) |
||||||
Optical axis adjustment (V) |
24°(± 12°) |
||||||
View finder |
Built-in |
||||||
Anti-fog and frost |
Ultrasonic Wave Implement |
||||||
Other additional function |
Light accepting indicator,Ok sign, test terminal |
||||||
Material |
PC cover, ABS resin |
||||||
Weight |
300g (Transmitter /Receiver each) |
||||||
