Help CenterHigh Efficency LED Street Light Replacing 230-280w HPS
Related Products
-
High Efficency LED Street Light Replacing 250-300w HPSUS$ 290 - 330MOQ: 1 Piece -
40W LED Street Light--NEW Type !! Lowest PriceUS$ 107 - 140MOQ: 1 Piece
-
2014 Newest Meanwell Cree 150w Led Street LightUS$ 330 - 425MOQ: 1 Piece
-
New 80W LED Street Light; 20W-185W High Quality Led Street LightUS$ 181 - 220MOQ: 1 Piece
-
60w 80w 100w 120w 150w Led Street Light With CREE Chips 5 Years Warranty LED Street LightUS$ 290 - 330MOQ: 1 Piece
Specifications
IP68, 50000~100000H lifespanUL/DLC/ATEX/CE approved
wide input voltage
Bridgelux/CREE chip LED
Die-casting aluminum housing
Note |
ITEM NO. |
DESCRIPTION |
TOTAL POWER |
Reflector/wide angle |
NOMINAL LUMENS |
DRIVE CURRENT |
# OF LEDS |
SYSTEM EFFICACY |
UL & CUL /CE Certify |
CES-L200 |
Replacing 600-800w HPS |
185 |
Wide angle |
16,650 |
350 mA |
144 |
90 LM/W |
UL & CUL /CE Certify |
CES-L150 |
Replacing 400-500w HPS |
150 |
Optional for both |
13,500 |
350 mA |
120 |
90 LM/W |
CE Certify |
CES-L120 |
Replacing 300-400w HPS |
120 |
Optional for both |
11,160 |
300 mA |
120 |
93 LM/W |
*actual product may vary from picture show.

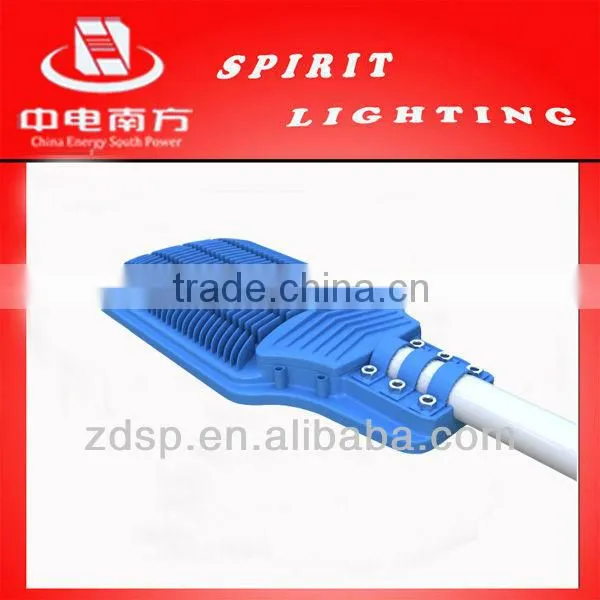

LED Street Light: Pole Mount
LED LIGHT ENGINE
Ø High quality Bridgelux 700Ma 45Mil
Ø Efficacy : up to 150lm @ 350Ma (per watt)
Ø Rated Life of 100,000+ hrs
Ø Operation temp: -30 ºC to +50 ºC
Ø No toxic chemicals/Rohs compliant
Ø 70%-80% saving compare to HPS/MH
PRODUCT FEATURE
Ø 5 years warranty
Ø Highest Ingress Protection rating : IP68
*Total power consumption may vary due to installation location.
Perfection is the Goal
APPEARANCE
Ø Material: Die Cast Aluminum
Ø Light Color option: Cool White
Warm White
Custom color
Ø LENS: Super Clear Tempered Glass
ELECTRICAL CHARACTERISTICS
Ø Wide AC input: 90-305 VAC
Ø (UL marking: 100-240VAC/277VAC)
Ø Power Factor: ~0.98
Ø Total Harmonic Distortion: < 10%
Ø Surge protection: IEC/EN 61000-4-5
Ø EMC test standard
