Home > Products > IP65 UFO LED high bay lights > CESP 100W UL CE and RoHS Approved LED High Bay Light/High Bay

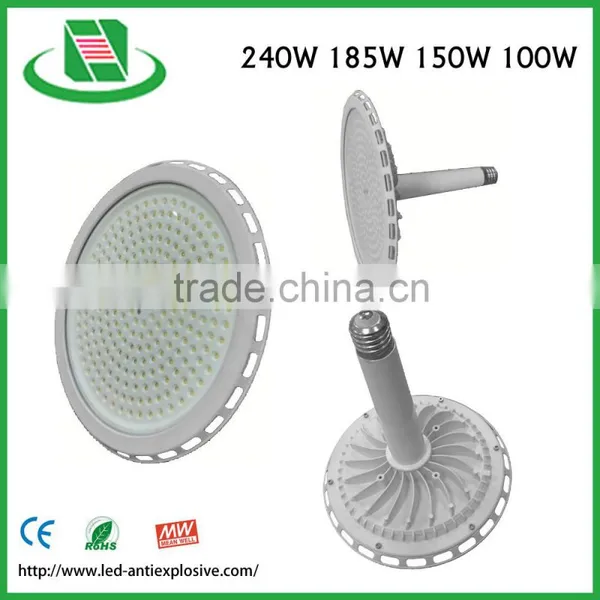

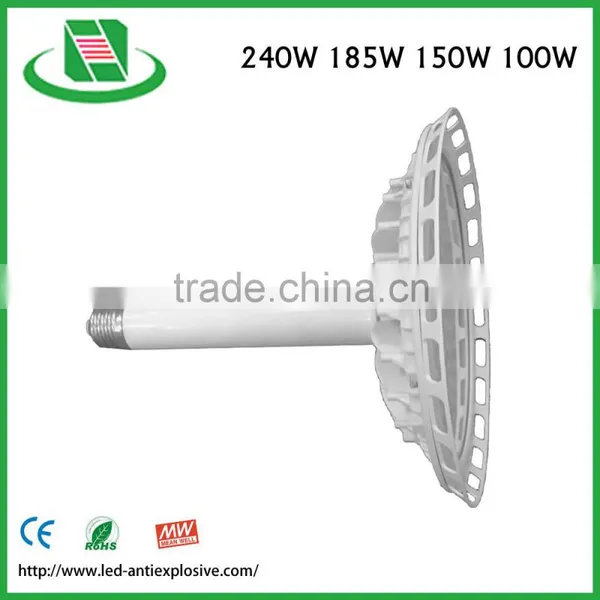

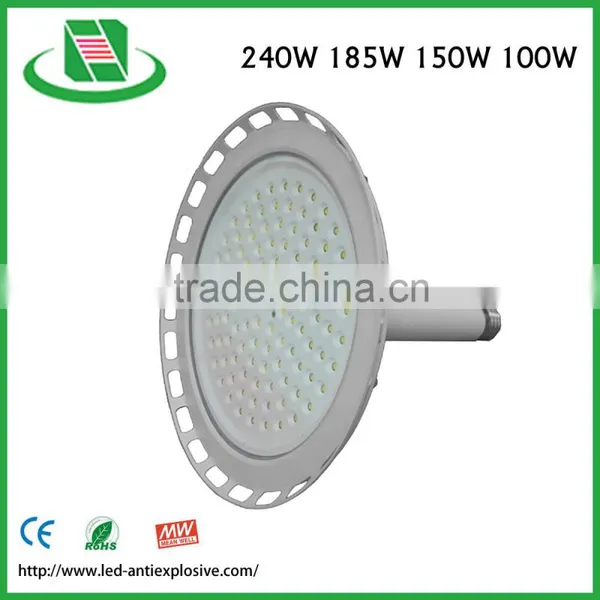

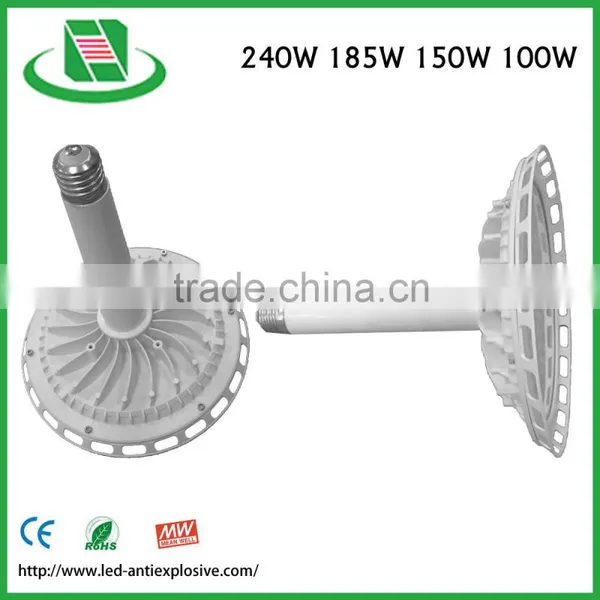

CESP 100W UL CE and RoHS Approved LED High Bay Light/High Bay

Name: CESP 100W UL CE and RoHS Approved LED High Bay Light/High Bay
Brand: CESP
Availability: InStock

FOB Price

USD $250.00 - $250.00 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Dongguan
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	Bridgelux	Warranty(Years)	5
Input Voltage(V)	90-305VAC	Lamp Power(W)	150
Lamp Luminous Flux(lm)	26400	Lamp Luminous Efficiency(lm/w)	360
Color Temperature(CCT)	Other, custom	Working Temperature(℃)	-30, 30
Working Lifetime(Hour)	50000	Lamp Body Material	Aluminum
IP Rating	IP65	Certification	CE
Place of Origin	Guangdong, China	Brand Name	CESP
Model Number	CESP-T Series

Product Description

Specification

DIMENSIONS & APPEARANCE
Length	400MM for T240/T200 300MM for T150/T100
Width	400MM for T240/T200 300MM for T150/T100
Height	130MM for T240/T200 120MM for T150/T100
Weight	5.3KG for T240/T200 3.1KG for T150/T100
Material	Die Cast Aluminum
Light Color Option	5700/4000/2700k Custom color
Lens	Super Clear Tempered Glass

Product Description

LED LIGHT ENGINE

High quality LM80 Certify Chip

Efficacy:up to 150lm@350Ma(Per watt)

Rated Life of 50,000+hrs

Operation temp:-30°C to +30°C

No toxicchemicals/Roshs compliant

70%-80% saving compare to HPS/MH

ELECTROICAL CHARACTERISTICS

Wide AC input:90—305VAC

Power Factor:~0.98

Total Harmonic Distorition:<10%

Surge Protection:IEC/EN 61000-4-5

EMC test standard

QUALIFICATION

CE:Recognition with CNAS

ISO 14001:Recognition with IAF&CNAS

ISO 9001:Recognition with IAF&CNAS

INSTALLATION

Easy in stallation -Plug and Play

High Bay Hook

PRODUCT FEATURE

5 years warranty

Ingress Protection rationg:IP65

Note	Item No	Description	Total Power	Reflector Angle	Nominal Lumens	Drive Current	#OF LEDs	System Efficacy
Taiwan Meanwell HLG(external Driver)	T240	Replacing 1000w HPS/MH	240	120/60/40/30	28,000	350m/A	240	120LM/W
	T200	Replacing 1000w HPS/MH	185	60/40/30	24,000	350m/A	144	120LM/W
	T150	Replacing 700w HPS/MH	150	120/60/40/30	18,000	350m/A	108	120LM/W
	T100	Replacing 700w HPS/MH	100	120/60/40/30	12,000	350m/A	108	120LM/W
Taiwan Meanwell HLG(internel Driver)	T240	Replacing 1000w HPS/MH	220	120/60/40/30	26,400	350m/A	156	120LM/W
	T200	Replacing 1000w HPS/MH	185	120/60/40/30	24,000	350m/A	144	120LM/W
	T150	Replacing 700w HPS/MH	150	120/60/40/30	18,000	350m/A	108	120LM/W
	T100	Replacing 400w HPS/MH	100	120/60/40/30	12,000	350m/A	108	120LM/W

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.
