UL DLC Led High Bay Light 40w

UL DLC Led High Bay Light 40w thumbnail-1
UL DLC Led High Bay Light 40w thumbnail-2
UL DLC Led High Bay Light 40w photo-1
UL DLC Led High Bay Light 40w photo-2
US$ 100 - 300 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
USA Bridgelux chip or Cree chip
Warranty(Years):
5
Input Voltage(V):
AC 100-277V
Contact Supplier Request Quote Chat Now
China Energy South Power Equipment (Shenzhen) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
senzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source USA Bridgelux chip or Cree chip
Warranty(Years) 5
Input Voltage(V) AC 100-277V
Lamp Power(W) 120
Lamp Luminous Flux(lm) 10800
Lamp Luminous Efficiency(lm/w) 90
Color Temperature(CCT) Cool White
Working Temperature(℃) -40, 50
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum Alloy
IP Rating IP68
Certification CE, Energy Star, UL
Place of Origin Guangdong, China
Brand Name cesp
Model Number CES-J120-RF

CUL UL  IP65 led high bay light  retrofit

induction high bay  retrofit  40w-120w







Why CESP?











1. For hazardous area lighting products like LED EXPLOSION PROOF LIGHTS, it is fairly important to choose specialized manufacturer because the security for hazardous area lighting is essential.







2. CESP is a specilized LED EXPLOSION PROOF LIGHT manufacturer in the passed 8 years,  with CE/ROHS/UL/CUL/DLC/SAA/PSE certification, and most important, ATEX and CNEX explosion proof certification.







3. Besides, we'll soon get the UL844(class 1 division 2) explosion proof certification, which means we'll be the only manufacturer who owns these qualifications at the same time.







4. By now we have a whole series LED EXPLOSION PROOF LIGHTS (CES-J), including 20W-185W wide power range and various installation brackets, and also customizable product color. can satisfy most of the hazardous area lighting application.















UL DLC led high bay light 40w















 Key features;







-Die-cast aluminum by 1800 Ton of pressure to make the body strong enough.



-Powder Coated (similar to vehicles coating) and holder are cover with a thin layer of Zink, color can be ---customizable.



-IP 68, highest rating of protection.



-Anti- flame, high quality water proof silicon, 4MM super-strength tempered glass.



-5 year warranty.



-Best driver: Meanwell HLG driver.







Main Technology

LED Chips:

BridgeLux LED chips packaged professionally ensure the light source kept in optimum performance; mirror surface processed technology collect and reflect the invalid light into efficiency; use of lens controls the horizontal and vertical beam angle actively.

Power Supply:

To use world’s leading brand MeanWell power supply ensure the fixture works in stableness with better performance and enjoy its long life; power supply is CE RoHS TUV CB certificated.

Heat Dissipation:

LEDs combined with aluminum radiator directly and closely make the LEDs have better performance of heat dissipation; sufficient area of aluminum radiator and full range air permeability of the fixture reduce the optical attenuation and control LEDs failure.

















Specification:















Item No

Product Specification

Certificate for Europe

Certificate for US&Canada

Rated Power

Size(mm)

With reflector(RF) or not

Beam

IP

Angle

Rating

CES-J200

185W

400*400*185mm

NO

120°x120°

IP68

CE/ROHS

UL/CUL/DLC

CES-J150

150W

400*400*185mm

NO

120°x120°

IP68

CE/ROHS

UL/CUL

CES-J120

120W

400*400*185mm

Optional

60°x30°(RF)
/120°x120°

IP68

ATEX/CE/ROHS

UL/CUL

CES-J100

100

300*300*175mm

NO

120°x120°

IP68

ATEX/CE/ROHS

UL/CUL/DLC

CES-J80

80W

300*300*175mm

Optional

60°x30°(RF)
/120°x120°

IP68

ATEX/CE/ROHS

UL/CUL

CES-J40S

40W

200*200*270mm

Optional

60°x30°(RF)
/120°x120°

IP68

ATEX/CE/ROHS

UL/CUL/DLC















LED Specification

Driver  Specification

Item No.

LED QTY

Lumens

Lumen

CCT

CRI

Input V

Input Current

PF

THD

Type

Lm/W

CES-J200

156 pcs

16550

90Lm/W

Cool White:5700-6500K

>70

AC100-277V

350mA

>0.98

<10%

HLG MEANWELL driver with IP68 protective

Aluminum Housing

CES-J150

144 pcs

13500

90Lm/W

>70

AC100-277V

350mA

>0.98

<10%

CES-J120

96 pcs

10800

90Lm/W

Natural White:3700-4500K

>70

AC100-277V

350mA

>0.98

<10%

CES-J100

84 pcs

9000

90Lm/W

>70

AC100-277V

350mA

>0.98

<10%

CES-J80

60pcs

7200

90Lm/W

Warm White:2700-3500K

>70

AC100-277V

350mA

>0.98

<10%

CES-J40S

24pcs

3600

90Lm/W

>70

AC100-277V

350mA

>0.98

<10%

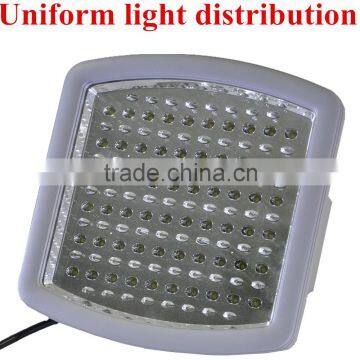

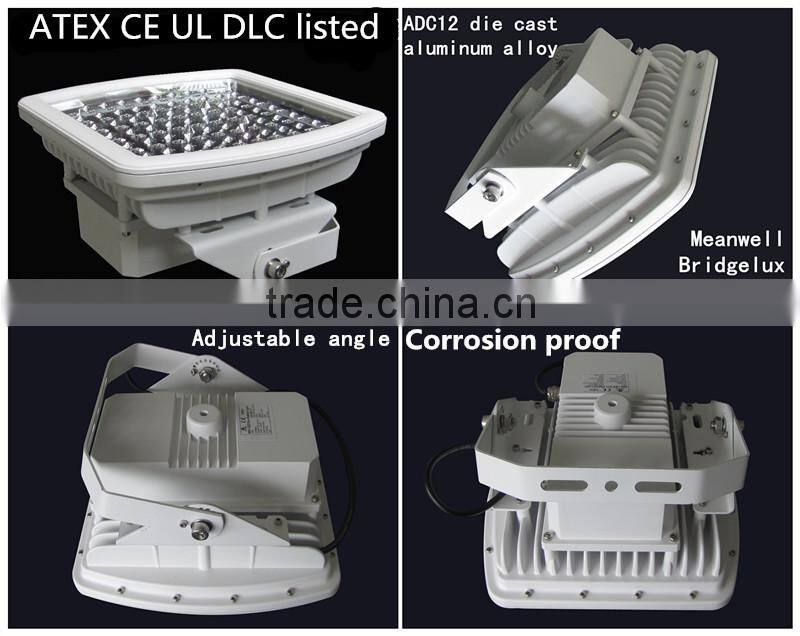

Product image:

































UL DLC led high bay light 40w

UL DLC led high bay light 40wUL DLC led high bay light 40w





UL DLC led high bay light 40w

 UL DLC led high bay light 40w













Certification:









UL DLC led high bay light 40w

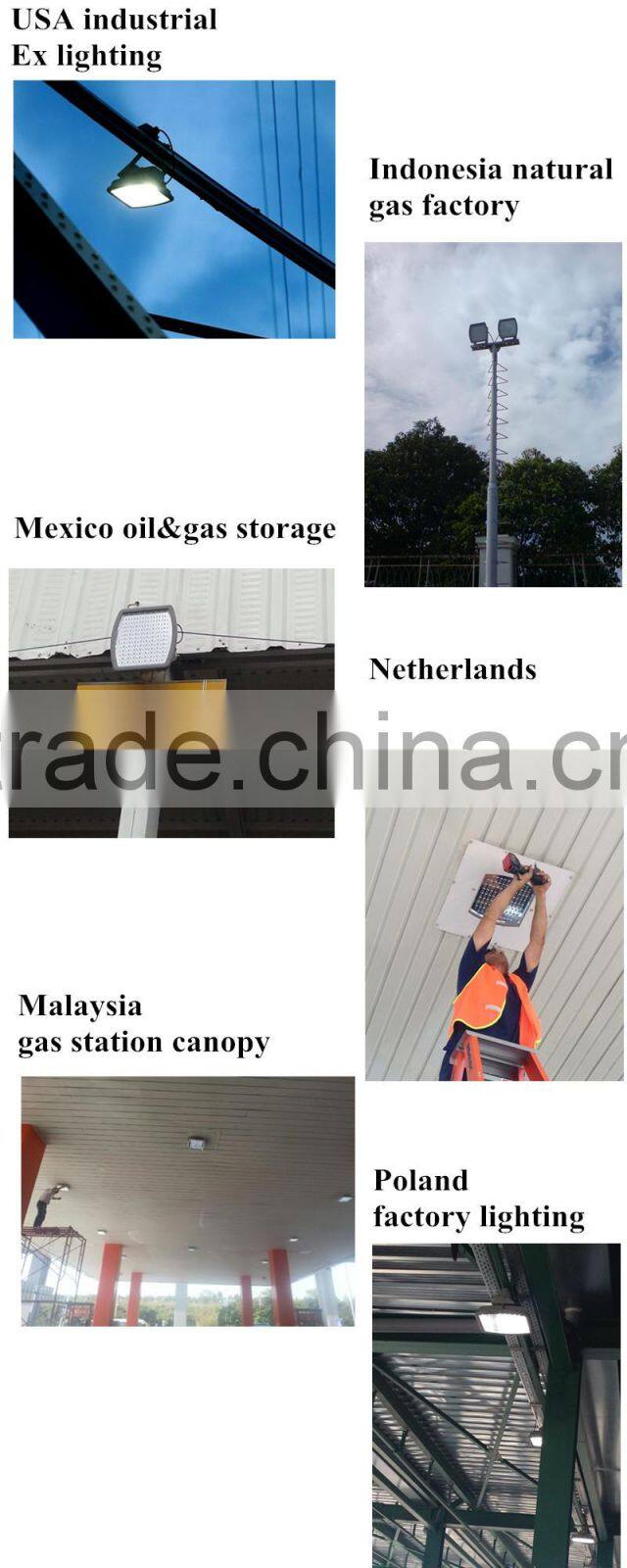

Application:



UL DLC led high bay light 40w

 UL DLC led high bay light 40w














Factory show:









UL DLC led high bay light 40w
