US$ 1,800 - 2,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
South
Model Number:
NTS-352R
Contact Supplier Request Quote Chat Now
Shanghai Sursup Precision Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name South
Model Number NTS-352R

Specifications

1.SOUTH NTS-352R Total station
2.1 prism 5km,3 prism 6km.
2.Reflectorless Range 300m.
3.Delivery time:3 working days.


Product Description

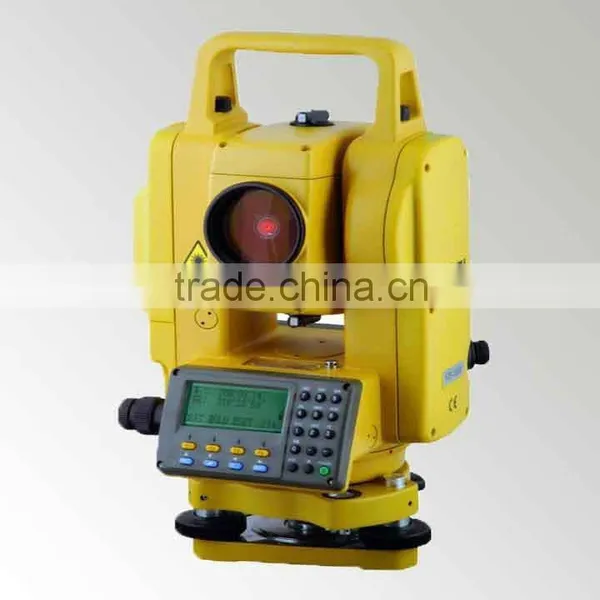

SOUTH NTS-352R total station



Quick Details

Place of Origin: China (Mainland)

Brand Name: SOUTH

Model Number: NTS-352R

1 prism:5km

3 prism:6km

Mini prism:800m

Non-prism: 300m

Distance Accuracy: 2mm+2ppm.D

measuring time: Fine mode:1S

Tracking mode:0.5s

Angle Measuring method: absolute coding

Angle accuracy:2"

Laser Plummet: optional.

Dust & splash proof :IP55 class



Specification



  NTS-352R
Telescope:
Image Erect
Magnification 30×
Effective   aperture Telescope:45mm(Object   lens:50mm)
Resolving   power 4″
Field   of view 1°30′
Minimum   focus 1m
Tube   length 154mm
Angle   Measurement
Measuring   method absolute   encode
Dia   of circle(vertical, horizontal) 79mm
Minimum   reading 1″ 5″Selectable
Detection   method Horizontal:   Dual          Vertical: Dual
Accuracy 2″
Distance   Measurement: fine weather condition
Max. Range single   prism 5km
Triple prism 6km
mini prism 800m
Reflectorless 300m
Displaly Max:99999999.9999m   Min:0.1mm
Unit m/ft
Accuracy Reflectorless Fine ±(5mm+2ppm·D)
Tracking ±(10mm+2ppm·D)
Reflector Fine ±(2mm+2ppm·D)
Tracking ±(5mm+2ppm·D)
IR sheet ±(5mm+2ppm·D)
measuring time Fine   mode:1S;Tracking mode:0.5s
Atmospheric correction Auto   correction by inputting parameter
prism constant correction Auto   correction by inputting parameter
Vial
Plate vial 30″/ 2mm
Circular vial 10′/2mm
Auto Vertical Compensator
Type Liquid-electric Detection
Compensation range ±3′
Accuracy 1″
Optical Plumment
Image Erect
Magnification 3×
Focusing range 0.5m~∝
On-board Battery
type Ni-H   ,Rechargeable
Voltage DC 6V
charging time 3hrs
Continuous operation time 8 hrs   (small battery);10hrs (big battery)
Others
Display LCD,  4 lines
Data  Communication RS-232C
Operating temperature -20ºC~+45ºC
Dimension L200×H350×W180mm,5.8kg
