24 bits rgb interface 480x272 4.3 inch tft lcd capacitive touch panel
Skype:yunlea.sales
The specification of 4.3 inch touch display
| Specification | |
| Size | 4.3 inch |
| Model number | YL043MY01 |
| product name | 4.3" tft lcd touch screen |
| Type | LCD + CTP |
| Outline Dimension | 105.5x67.2x4.48 mm |
| Active area | 95.04x53.86 mm |
| Resolution | 480x272 dots |
| TFT interface | RGB |
| Brightness | 300 cd/m2 |
| Touch controller | MSG2138A |
| CTP interface | I2C |
| Surface Hardness | 6H |
| Transparency | 85%min |
| Touch Points | 3 points |
| Operating temp | -20 to 70 degree |
| General Business Clauses | |
| MOQ | 1 piece |
| Lead time | Samples in stocks,3~5 weeks for mass production |
| Trade Terms | EXW or FOB |
| Payment |
100% Paypal or T/T or Western union in advanc for samples , 50% T/T in advance and 50% before delivery for mass production |
| Warranty | 12 months |
| Package | Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton |

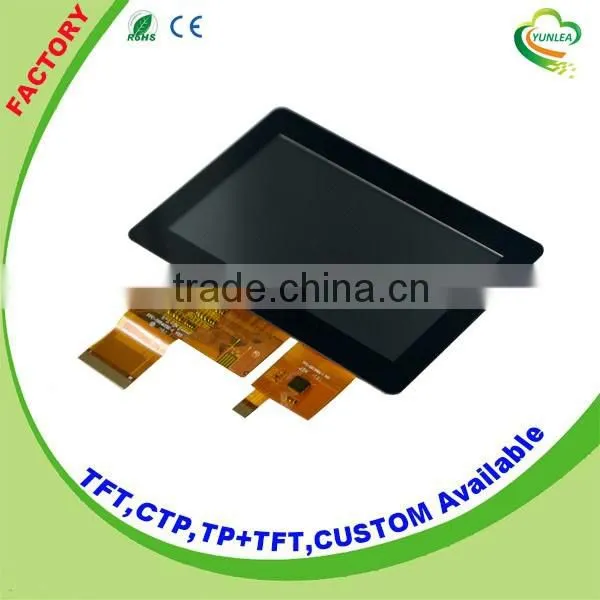

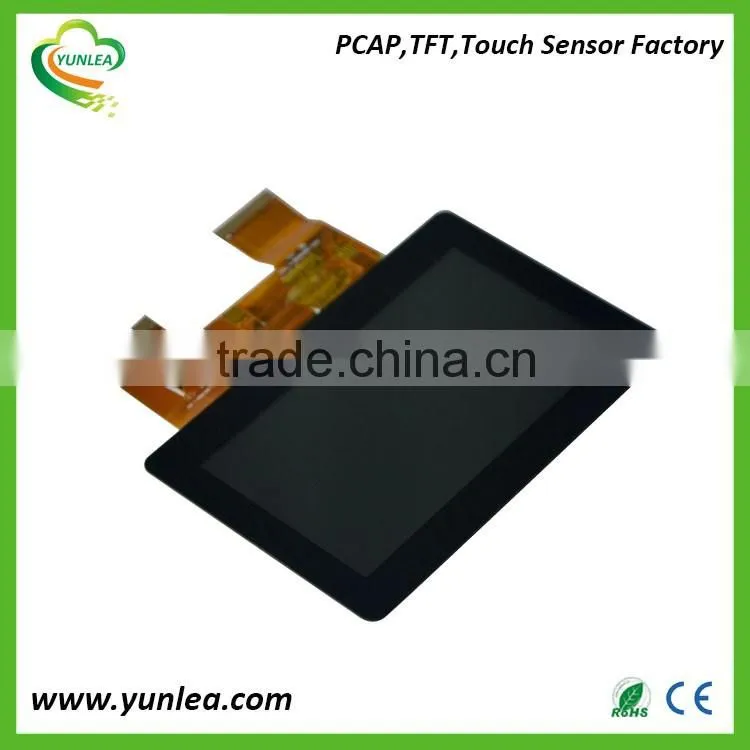

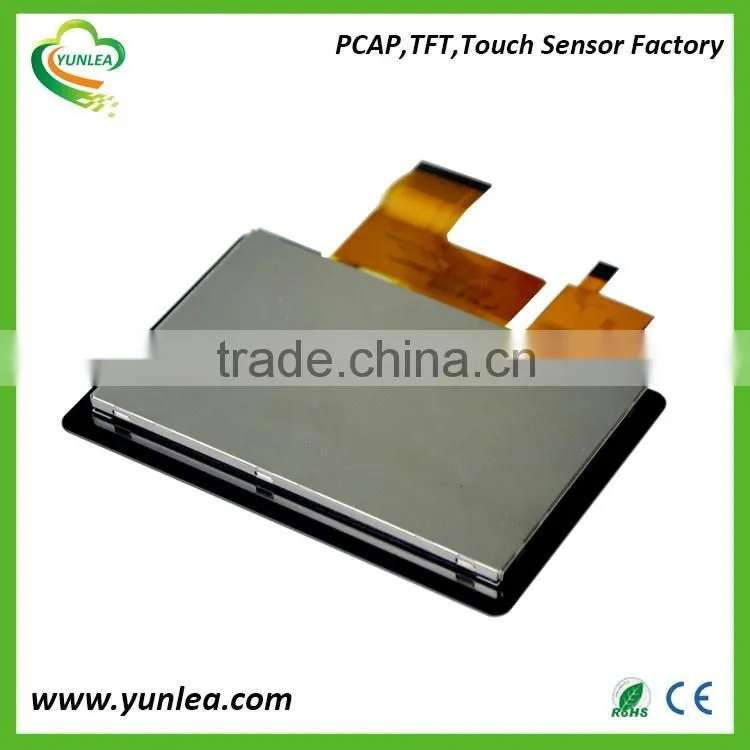

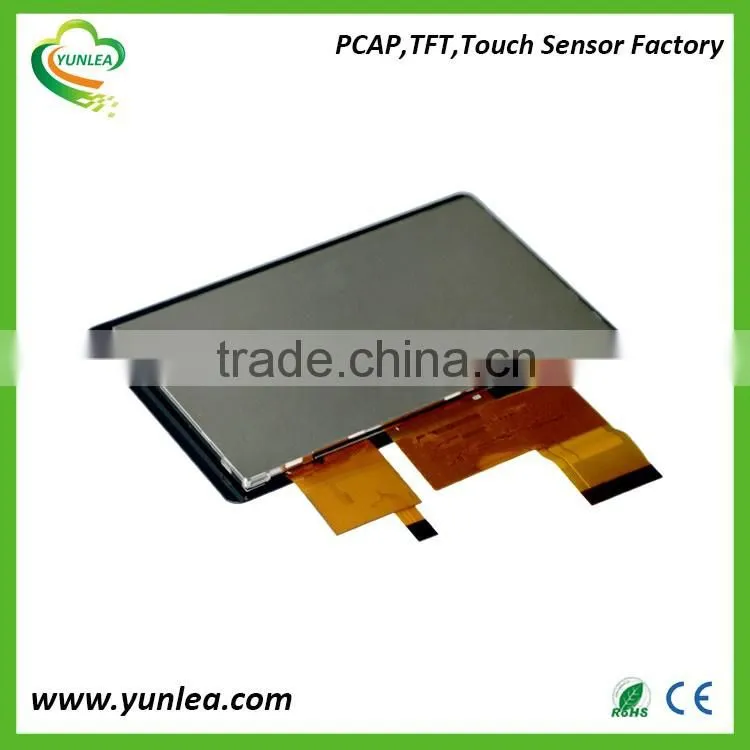

The show of 4.3 inch touch display
The application of all touch screen and touch screen module
1)Pls see all items smaple as follow,if you want to customize your own product ,we are provide customized service,welcome to inquiry.
2)Factory price and high quality with CE,ROHS
3)we will provide you the best option,come on!
Other hot selling touch screen module and touch screen
(click items you like)
| Standard Capacitive Touch Screen Module(TFT bonded CTP) List: | ||||||||
| Pictures | Panel Size | Part No. | Resolution | Outline Dimensions | Active area | Brightness | Contrast Ration | Remarks |
|
3.5 inch |
YL035MY01 | 320xRGBx480 | 66.86x94.94x3.3 |
95.04x53.86 | 300 |
500:1 | Read More |
4.3 inch |
YL043MY01 | 480xRGBx272 | 114x77x4.48 | 95.04x53.86 | 340 | 400:1 | Read More | |
|
5.0 inch |
YL050MY01 | 800xRGBx480 | 127x85.8x4.93 | 108x64.8 | 250 | 700:1 | Read More | |
| 7.0 inch | YL070MY01 | 800xRGBx480 | 164.9x100x6.93 | 154.08x86.42 | 360 | 500:1 | Read More | |
| Standard Capacitive Touch Screen List: | ||||||||
Pictures |
Panel Size |
Part No. | Interface | Outline Dimensions | Structure | Touch Controller | No. of touch | Remarks |
|
3.5 inch | YL035CY03 | I2C | 66.86x94.94x1.3 | Glass+Glass | MSG2133A | 2 Points | Read More |
| 4.3 inch | YL043CY01 | I2C | 118x61.46x1.28 | Glass+Glass | MSG2138A | 3 Points | Read More | |
| 5.0 inch | YL050CY01 | I2C | 127.0x85.8x1.83 | Glass+Glass | FT5316 | 5 Points | Read More | |
| 7.0 inch | YL070C701 | I2C | 163.5x99.6x1.43 | Glass+Glass | FT5316 | 5 Points | Read More | |
| 10.1 inch | YL1012934 | I2C and USB | 251x 174 x 1.1 | Glass+Film+Film | GT9271 | 5 Points | Read More | |
| 10.4 inch | YL1042934 | I2C | 227X175.8X2.2 | Glass+Flim+Flim | EETI | 5 Points | Read More | |
Why choose Yunlea?
(1)13000 Square meter factory,main for CTP and TFT ,larger productuion capacity ensure the fastest delivery.
(2)High quality Control with CE,ROHS and so on approved.
(3)Precise and advanced equipments
(4)More than 10 years of industry experience and involved main markets all over the world
(5)Dedicated and professional sales team will offer you 24 hours online and immediate service
(6)OEM and ODM welcome,12months warranty on our product
(7)Our mission is to help our customers achieve success, then fulfill our both dreams
1.What is your delivery method?
DHL , UPS , FEDEX ,TNT
2. What is the lead time of the products?
Samples in stock will be sent within 3 days after payment.
Two to Four weeks for mass production
3. Payment methods?
T/T, Paypal and Western union etc.
For samples: payment in advance.
For mass production: 50% deposit and 50% balance before shipment.
4. How long is the warranty period?
Generally the warranty period is one year. It depends on different products.
5.What is the Product MOQ?
Different product has the different MOQ, please contact us sales for detailed information.
6.What is the products application?
Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields.
