GOWIN TKS 202 TOTAL STATION ,station Total Topcon,brand Total Station,surveying Equipment,surveying Instrument,surveying
US$ 2,400 - 2,660
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Gowin
Model Number:
TKS-202
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GOWIN TKS 202 TOTAL STATION ,GOWIN TOPCON TOTAL STATION,ESTACION TOTAL GOWIN TKS-202,GEOMAX PRISMUS$ 2,550 - 2,660MOQ: 1 Piece -
GOWIN TKS 202 TOTAL STATION ,ESTACION TOTAL GOWIN,BRAND TOTAL STATION,FOIF,TOPCON,SOUTH,LEICA,KOLIDA,TRIMBLE,FOIF,GNSS GPSUS$ 2,550 - 2,660MOQ: 1 Piece
-
GOWIN TKS 202 TOTAL STATION ,GOWIN PRISMUS$ 2,550 - 2,660MOQ: 1 Piece
-
GOWIN TKS 202 TOTAL STATION ,KOLIDA PRISM,ESTCION TOTAL GOWIN,FOIF,SOUTH,TOPCON GOWIN TOTAL STATIONUS$ 2,550 - 2,660MOQ: 1 Piece
-
GOWIN TKS 202 TOTAL STATION ,TOPCON ,SOUTH ,ESTACION TOTAL GOWIN,BRAND TOTAL STATION,BEST TOTAL STATION,FOIF,LEICA,LASER LEVELUS$ 2,550 - 2,660MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Gowin
Model Number
TKS-202
Specifications
1.GOWIN TKS 202 total station2.High reliability
3.Lower price
GOWIN TKS 202 TOTAL STATION
Brief introduction:
Leveraging on Topcon's optimal manufacturing excellences; GOWIN ensured every single production process of the TKS-202 Total Station is in compliance with international standards and went through stringent quality control.
From fully-automated EDM trials, to 48 hours of non-stop extreme environment conditioning testing, GOWIN Total Station demonstrated its durability and operational superiority, highlighting GOWIN commitment to constantly improve.
| Model Name :TKS202 | ||
| Telescope | Objective Lens Diameter | 45mm (EDM: 50mm) |
| Magnification | 30x | |
| Image | Erect | |
| Field of View | 1°30' | |
| Resolving Power | 3.0" | |
| Min. Focus Distance | 1.3m | |
| Angle Measurement | Accuracy | 2" |
| Method | Absolute | |
| Minimum Reading | 1"/5" | |
| Distance Measurement | ||
| Distance Range | 1 Prism | 2,000 |
| 3 Prisms | 2,700m | |
| Accuracy | ±(+2mm + 2ppm x D**)m.s.e. | |
| Measuring Time | Fine Measurement Mode | 1.2 sec.(Intial 4 sec.) |
| Coarse Measurement Mode | 0.7 sec. | |
| Tracking Measurement Mode | 0.4 sec. | |
| Atmospheric Correction Range | Yes | |
| Prism Constant Correction Range | Yes | |
| Software & Memory | ||
| On-Board Software Functions | Data Collection, Resection, Road, Stakeout, Area Calculation, Height Measurement, etc. | |
| Internal Memory | 24,000 points | |
| Interface | RS-232C (Standard) | |
| Display | Display Unit | Graphics LCD, 2 Sides |
| Keyboard | 24-Alpha-Numeric Key | |
| Tilt Correction (Automatic Index) | ||
| Tilt Sensor | Yes | |
| Correction Method | Liquid Type | |
| Compensating Range | ± 3' | |
| Level Senstivity | ||
| Plate Level | 30"/2mm | |
| Circular Level | 10'/2mm | |
| Optical Plummet Telescope | ||
| Image | Erect | |
| Magnification | 3x | |
| Focusing Range | 0.5 to infinity | |
| Field of View | 3° and above | |
| Others | ||
| Protection against water and dust*** | IP 54 (with BT-L1 Battery) | |
| Operating Temperature | -20°C~+50°C (-4°F~+122°F) | |
| Dimension | 336 (H) x 184 (W) x 172 (L)mm | |
| Weight (with Battery) | 4.8Kg | |
| On Board Battery | BT-L1 (Lithium-ion) | |
| Battery Charger | BC-L1 | |
| Maximum Operating Time | ||
| Including Distance Measurement | 14 Hours | |
| Angle Measurement Only | 60 Hours | |
| Output Voltage | DC 10V | |

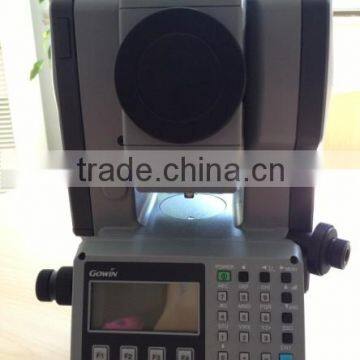

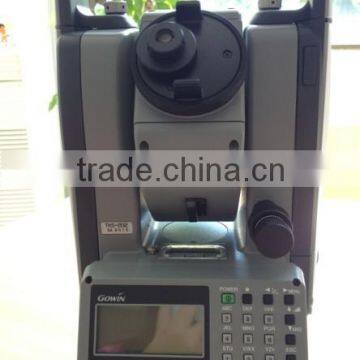

Pictures:
