Yunlea 4.3 inch custom lcd and touch screen module with multi-touch
USD $1 - $28
/ Piece
1 Piece(Min.Order)
- 10000 Piece / Pieces per Month
- Shenzhen or HK
- T/T Credit Card
You May Like
-
negative segment character running machine lcd display,practical STN,blue backlight, fitness equipment
-
digital fire alarm installation module display, HTN segment display with blue led lcd panel
-
negative autoreclose circuit-breaker lcd display, segment module with blue led
-
charger negative character lcd display,white led ,battery segment small flexible display
-
character small charger lcd display ,custom battery display ,white led
-
segment positive temperature time clock lcd display,blue TN white backlight
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | Yunlea | Model Number: | YL043MY01 |
| Type: | Other, Touch screen module |
Product Description
Yunlea 4.3 inch custom lcd and touch screen module with multi-touch
Skype:yunlea.sales
Product Description
What's specification of 4.3 inch touch screen module?
---The specification of 4.3 inch touch screen--- | |
| Specification | |
| Size | 4.3 inch |
| Product name | 4.3 inch touch screen module |
| Model number | YL043MY01 |
| Type | LCD + CTP |
| Struture | CTP(Glass+Glass)+LCD |
| Outline Dimension | 114x77x1.28mm |
| Active area | 95.04x53.86mm |
| Resolution | 480x272 dots |
| Brightness | 300 cd/m2 |
| Touch controller | FT5206 |
| Interface Of tft | 24 bits rgb interface |
| Interface of CTP | I2C |
| Surface Hardness | 6H |
| Transparency | 86%min |
| Touch Points | 5 points |
| Operating temp | -20 to 70 degree |
| General Business Clauses | |
| MOQ | 1 piece |
| Lead time | Samples in stocks,2~4 weeks for mass production |
| Trade Terms | EXW or FOB |
| Payment | 100% Paypal or T/T or Western union in advanc for samples , 50% T/T in advance and 50% before delivery for mass production |
| Warranty | 12 months |
| Package | Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton |

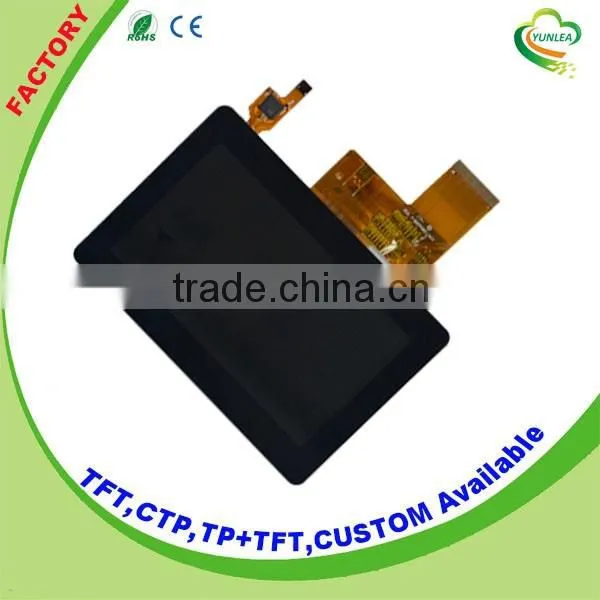

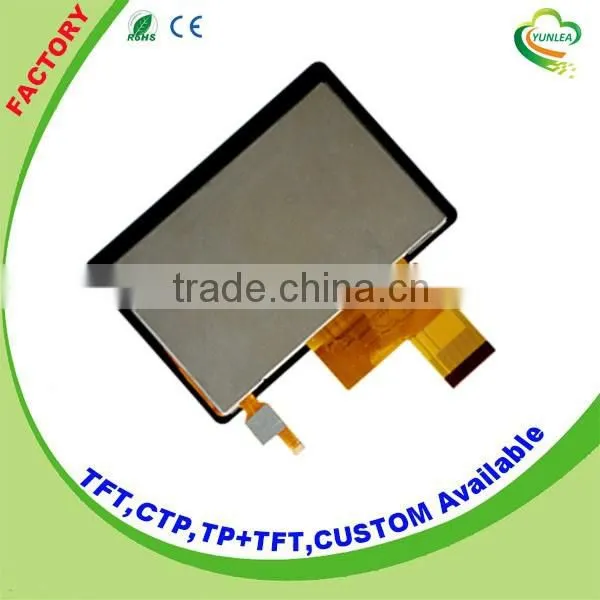

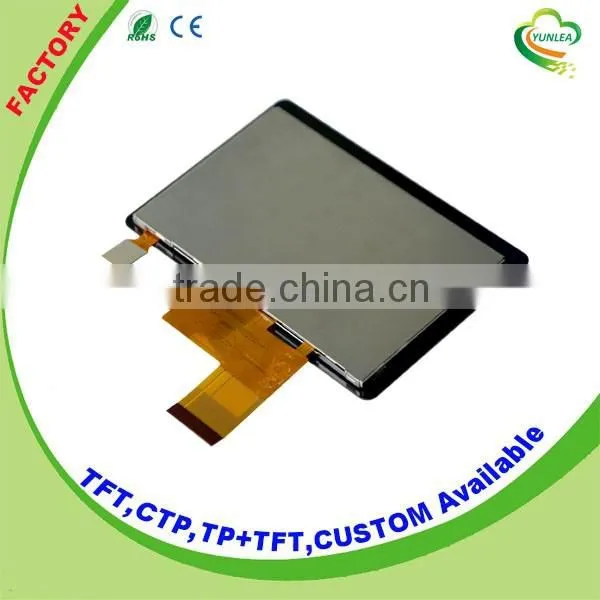

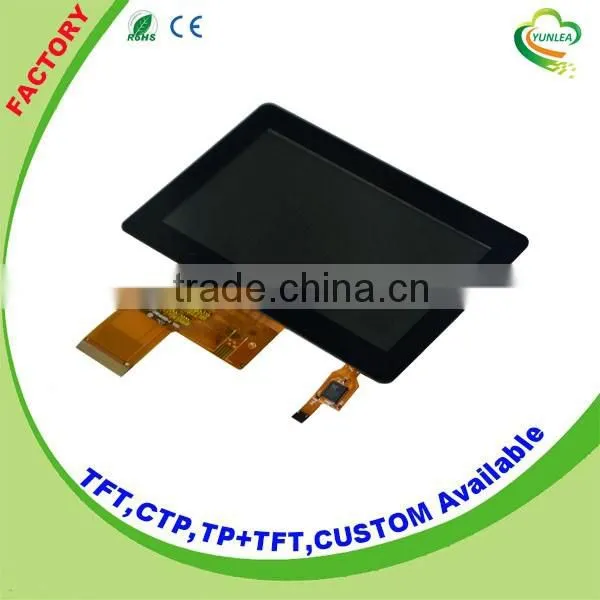

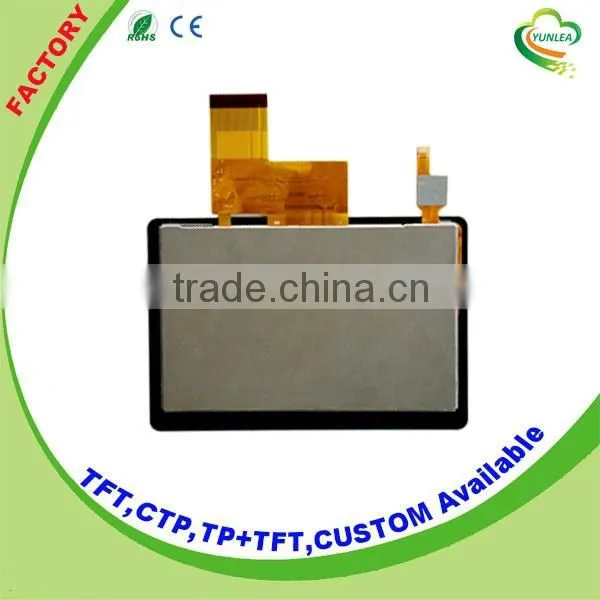

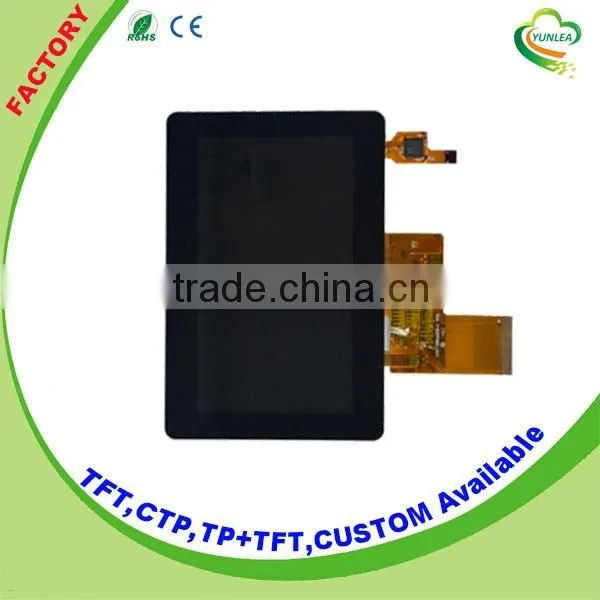

---The picture of 4.3 inch touch screen module--- |
| |
| |
