Home > Instruments & Meters > Optical Lens & Instrument > Optical Lens > TOPCON GTS-102N TOTAL STATION

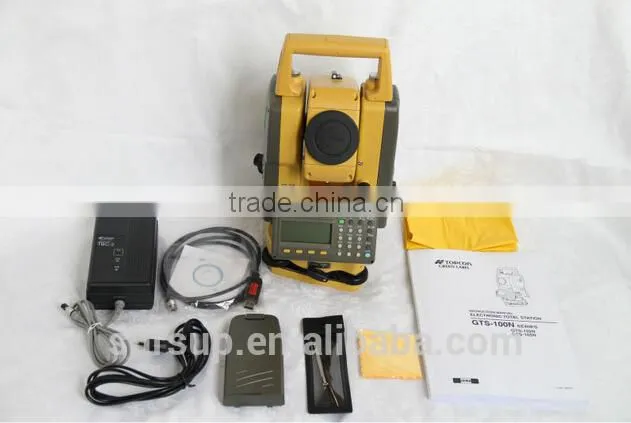

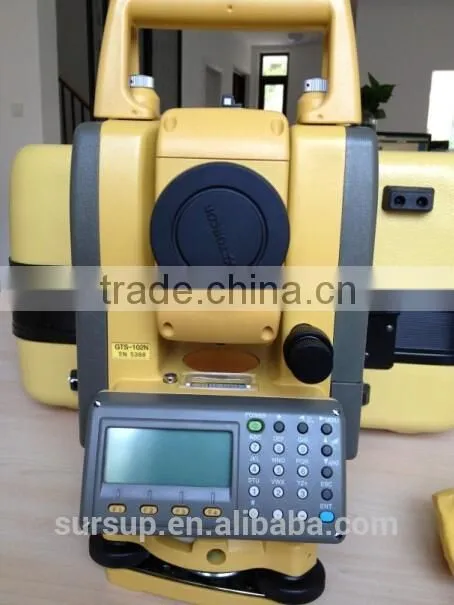

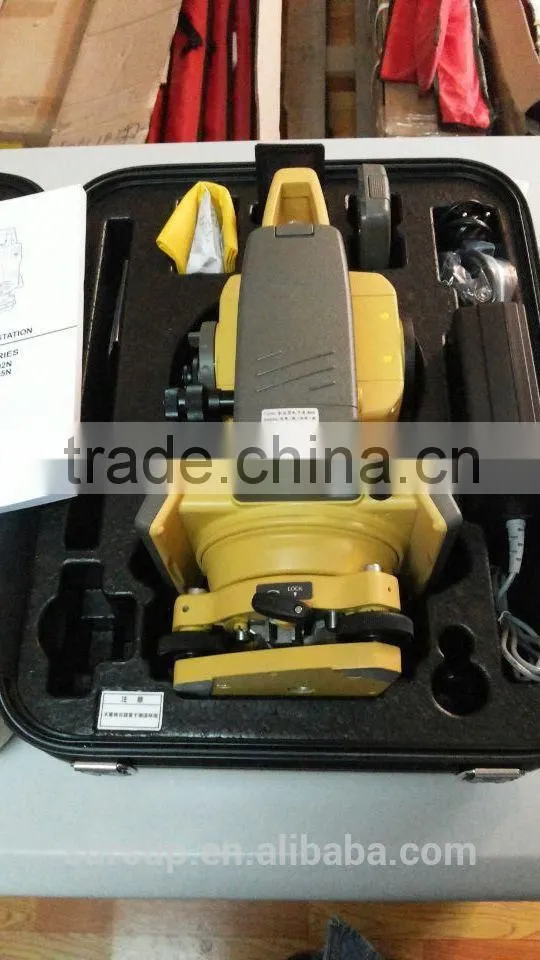

TOPCON GTS-102N TOTAL STATION
US$ 3,100 - 3,600
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
Topcon
Model Number:
GTS-102N
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
South 312rUS$ 2,380 - 2,600MOQ: 1 Piece -
SOUTH NTS-312R+ TOTAL STATION,reflectorless 250mUS$ 1,660 - 1,800MOQ: 1 Piece
-
SOUTH NTS-312B TOTAL STATIONUS$ 1,500 - 1,620MOQ: 1 Piece
-
GOWIN TKS 202 TOTAL STATIONUS$ 2,550 - 2,650MOQ: 1 Piece
-
KOLIDA KTS442R TOTAL STATIONUS$ 2,270 - 2,470MOQ: 1 Piece
Place of Origin
Beijing, China
Brand Name
Topcon
Model Number
GTS-102N
Product Description
| Telescope | |
| Length | 150 Millimeters |
| Objective Lens Diameter | 45mm (EDM:50mm) |
| Magnification | 30x |
| Image | Erect |
| Field of View | 1°30 |
| Resolve Power | 3 " |
| Min. Focus Distance | 1.3 meters |
| Measurement Range | |
| 1 Prism | 6560 ft, 2000 meters |
| 3 Prism | 8856 ft, 2700 meters |
| Measuring Accuracy | |
| Prism Mode | ±(2mm + 2ppm x D)m.s.e. fine, N/A |
| Measurement Time | 1mm: 1.2sec. (Initial 4sec.) fine, 0.2sec. (Initial 3sec.) coarse, N/A |
| Angle Measurement | |
| Method | Absolute Reading |
| Detection | 2 horizontal, 1 vertical |
| Minimum reading | 5”/1”, 1/5 mgon |
| Tilt Correction | |
| Type | Automatic Vertical and Horizontal compensator |
| Method | Liquid surface reflective profile sensor reading type |
| Compensating Range | ±3' |
| Correction Unit | 1 arc sec, N/A |
| Computer Unit | |
| Display | 2 screen, dot matrix graphic LCD display |
| Power | |
| Approximate battery life | 9 hours including distance measurement , 40 Angle measurement only |
| Durability | |
| Protection against water and dust | IP54 |
| Temperature | -20 to 50 degrees C (-4 to 122 degree F) |
| Weight | Instrument 4.9KG (10.8lb) |
