High Capacity Industrial Dehydrator Machine For Cow and Poulty

High Capacity Industrial Dehydrator Machine For Cow and Poulty photo-1

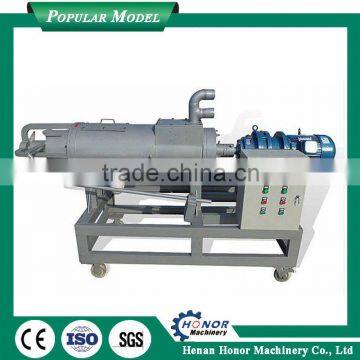

High Capacity Industrial Dehydrator Machine For Cow and Poulty photo-2

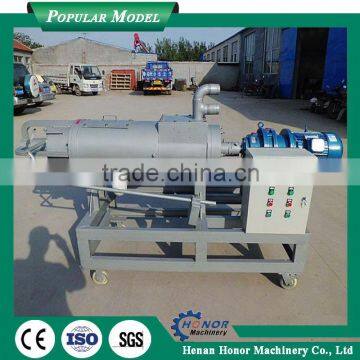

High Capacity Industrial Dehydrator Machine For Cow and Poulty photo-3
High Capacity Industrial Dehydrator Machine For Cow and Poulty photo-4
High Capacity Industrial Dehydrator Machine For Cow and Poulty photo-5
High Capacity Industrial Dehydrator Machine For Cow and Poulty photo-6
US$ 2,000 - 6,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Dewater Machine
Use:
Dewatering animal dung,dewatering animal manure
Certification:
ISO9001, CE, Form A, Form E, CO
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Type Dewater Machine
Use Dewatering animal dung,dewatering animal manure
Certification ISO9001, CE, Form A, Form E, CO
Place of Origin Henan, China
Brand Name Honor
Model Number HNTS-200
Condition New
After-sales Service Provided Engineers available to service machinery overseas
High Capacity Industrial Dehydrator Machine For Cow and Poulty
Product Description


High Capacity Industrial Dehydrator Machine For Cow and Poulty Brief Introduction



1.This High Capacity Industrial Dehydrator Machine For Cow and Poulty is used to reduce the water content of animal dung, like chicken, pig, sheep, cattle/cow.

2.Dung dewater machine is widely used in high humidity separating from the water, such as residue, sludge, manure and other dehydration.

3.The material in the raw material can be 50%, and the moisture of final product is about 30%, you can’t press out any water by hands.



High Capacity Industrial Dehydrator Machine For Cow and Poulty



Structure



High Capacity Industrial Dehydrator Machine For Cow and Poulty Structure

High Capacity Industrial Dehydrator Machine For Cow and Poulty

High Capacity Industrial Dehydrator Machine For Cow and Poulty









This Automatic Screw Press Cow Dung Dewatering Machine Cow Manure Separator used to reduce the water content of animal dung.

The solid content in the raw material can be 50%, and the moisture of final product is about 30%, you can’t press out any water by hands.





High Capacity Industrial Dehydrator Machine For Cow and Poulty Technical Parameters



Model

HNTS-200

HNTS-280

Main Power

5.5KW 380V 3P

5.5KW 380V 3P

Feeding Pump

3KW 380V 3P

3KW 380V 3P

Screen Diameter

20cm

28cm

Screen Hole Size

0.25mm/0.5mm/0.75mm/1.0mm

Pump Feeding Dia

76mm

76mm

Overflow Diameter

76mm

76mm

Water Discharge Dia

108mm

108mm

Weight

510kg

680kg

Dimension

1900*500*1280mm

2200*800*1300mm





High Capacity Industrial Dehydrator Machine For Cow and Poulty Capacities



Raw Material

Capacity(Cubic meters)/Hour

HNTS-200

HNTS-280

Cow dung sludge

10-12

15-20

Pig dung sludge

10-15

20-25

Chicken dung sludge

3-4

6-7

Slaughterhouse waste water

10-15

20-25

Biogas waste

7-9

10-15

Chinese Medicine Reside

7-9

10-15

Fermented Grains

10-12

15-20




Work Principle
High Capacity Industrial Dehydrator Machine For Cow and Poulty Work Principle

Sludge pump in the manure pits upgrade the original fecal residue to solid-liquid separator, the extrusion screw which is installed inside the screen will push the original feces residue to move forward to the outlet. Dry product will come out from discharge outlet by pressing of screw. The liquid which is filtered through the screen mesh will flow outside.



Spare Parts



High Capacity Industrial Dehydrator Machine For Cow and Poulty Detail Photos



High Capacity Industrial Dehydrator Machine For Cow and Poulty

High Capacity Industrial Dehydrator Machine For Cow and Poulty Working Flow





High Capacity Industrial Dehydrator Machine For Cow and Poulty







High Capacity Industrial Dehydrator Machine For Cow and Poulty Working Spot


High Capacity Industrial Dehydrator Machine For Cow and Poulty
High Capacity Industrial Dehydrator Machine For Cow and Poulty

Our Services

Our Service About High Capacity Industrial Dehydrator Machine For Cow and Poulty

1. Service Online: 24 hours online service
2. Quick Response: no response within 8 hours Warranty
3. Quality Conditions: Quality guarantee term is for one year dysfunctions that are caused by the auto-maker and the quality will be responsible for our manufacturer Other failures that are caused by operating errors, problems of man, etc .. will be responsible for self-customers.
4. Spare parts: the cheapest spare parts
5. Delivery: faster delivery of security
6. CEO refund reasonable complain

FAQ

Some FAQ about High Capacity Industrial Dehydrator Machine For Cow and Poulty

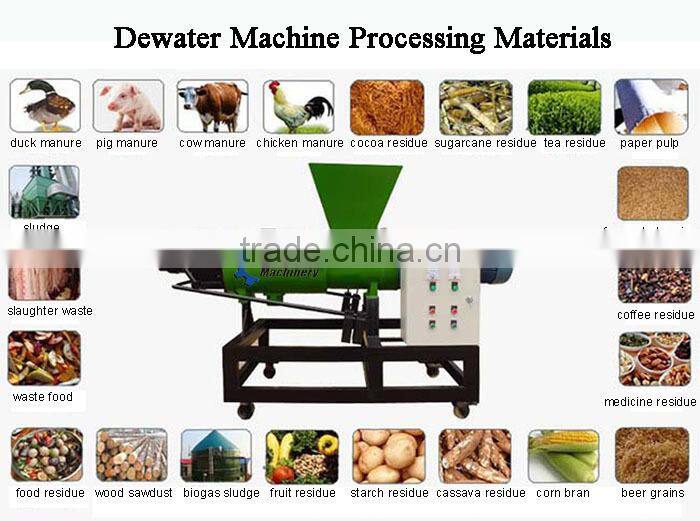

Q1: What materials are suitable for this High Capacity Industrial Dehydrator Machine For Cow and Poulty?

A1: animal's manure, Such As duck, pig, cow, chicken, amany materials'residue, for example, cocoa, sugarcane, tea, coffee, medicine,, food, wood and fruit and beer / fermented grains.
Q2: How to find the right model?
A2: According to your raw materials, final product dimensions and capacity you want, welcome to inquiry our sales anytime
