Product Name : Standard or customized 2.8 , 3.5 , 4.3 , 5 , 7 to 24 inch multi touch screen panel with tft lcd available
We can provide some standard capacitive touch screen module and just the capacitive touch screen, also, we can customize the capacitive touch screen according to the customer's requirements.
3.5 inch capacitive touch screen specification :
| Item | Specification | Unit |
| Product name | 3.5 capacitive touch screen | |
| Part number | YL035CY03 | |
| Size | 3.5 | inch |
| Outline Dimension | 66.86x94.94 | mm |
| Active area | 48.96x73.44 | mm |
| Resolution | 320x480 | dots |
| Touch controller | MStar 2133A | |
| Structure | Sensor glass + Cover glass | |
| CTP interface | I2C | |
| Surface Hardness | 6H | |
| Transparency | 86%min | |
| Operating temp | -20 to 70 | degree |
| Remark | customized available, LCD bonded with CTP available |
| Item | Specification | Unit |
| Size | 4.3 | inch |
| Model number | YL043CY01 | |
| product name | 4.3 inch capacitive touch screen | |
| Type | Sensor glass + Cover glass | |
| Outline Dimension | 105.5x67.2 | mm |
| Active area | 95.04x53.86 | mm |
| Resolution | 480x272 | dots |
| Touch controller | MSG2138A | |
| CTP interface | I2C | |
| Surface Hardness | 6H | |
| Transparency | 85%min | |
| Touch Points | 2 | points |
| Operating temp | -20 to 70 | degree |
| Remark | Customized available, LCD bonded CTP available |
| Item | Specification | Unit |
| Size | 5 | inch |
| Product name | 5" capacitive touch screen | |
| Model number | YL050CY01 | |
| Type | Sensor glass + Cover glass | |
| Outline Dimension | 127x85.8 | mm |
| Active area | 108x64.8 | mm |
| Touch controller | FT5316 | |
| Interface | I2C | |
| Surface Hardness | 6H | |
| Transparency | 85%min | |
| Touch Points | 5 | points |
| Operating temp | -20 to 70 | degree |
| Remarks | Customized available , LCD+CTP available |
| Item | Specification | Unit |
| Size | 7 | inch |
| Product name | 7 inch capacitive touch screen | |
| Type | Sensor glass + Cover glass | |
| Model number | YL070CY01 | |
| Outline Dimension | 164.9x100 | mm |
| Active area | 154.08x85.92 | mm |
| Resolution | 800x480 | dots |
| Touch controller | FT5316 | |
| CTP interface | I2C | |
| Surface Hardness | 6H | |
| Transparency | 86%min | |
| Touch Points | 5 | points |
| Operating temp | -20 to 70 | degree |
| Remarks | Customized available, LCD+CTP available |
| Yunlea products's special features: | |
| 1. | Supports multi-touch up to 10 points. |
| 2. | Using various industrial or medical gloves. |
| 3. | Touch with water available. |
| 4. | Optical bonding available with LCM. |
| 5. |
Provide AG/AR/AF tempered cover glass solution. |

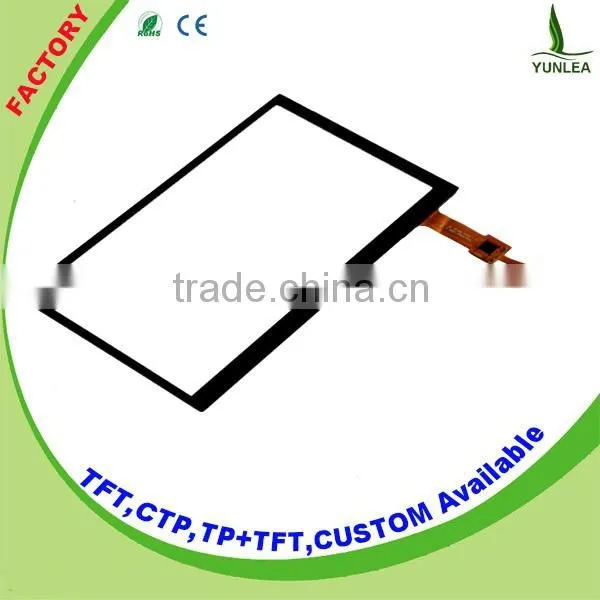

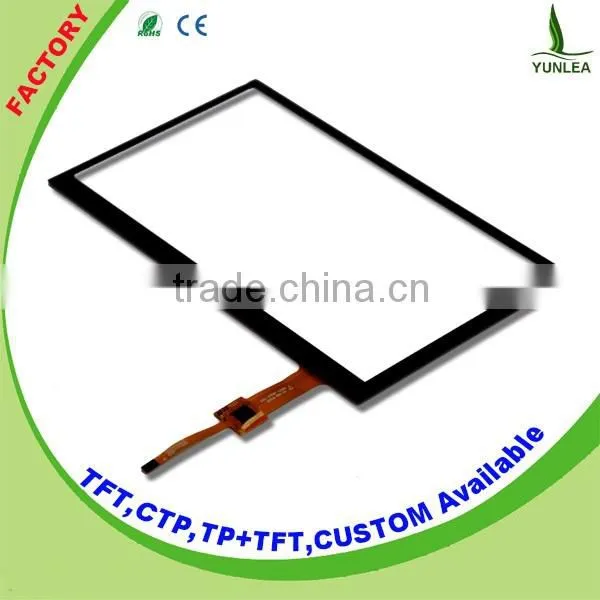

touch screen panel product picture:
Other hot selling touch screen module and touch screen
| Standard Capacitive Touch Screen Module(TFT bonded CTP) List: | ||||||||
| Pictures | Panel Size | Part No. | Resolution | Outline Dimensions | Active area | Brightness | Contrast Ration | Remarks |
|
3.5 inch |
YL035MY01 | 320xRGBx480 | 66.86x94.94x3.3 |
95.04x53.86 | 300 |
500:1 | Read More |
4.3 inch |
YL043MY01 | 480xRGBx272 | 114x77x4.48 | 95.04x53.86 | 340 | 400:1 | Read More | |
|
5.0 inch |
YL050MY01 | 800xRGBx480 | 127x85.8x4.93 | 108x64.8 | 250 | 700:1 | Read More | |
| 7.0 inch | YL070MY01 | 800xRGBx480 | 164.9x100x6.93 | 154.08x86.42 | 360 | 500:1 | Read More | |
| Standard Capacitive Touch Screen List: | ||||||||
Pictures |
Panel Size |
Part No. | Interface | Outline Dimensions | Structure | Touch Controller | No. of touch | Remarks |
|
3.5 inch | YL035CY03 | I2C | 66.86x94.94x1.3 | Glass+Glass | MSG2133A | 2 Points | Read More |
| 4.3 inch | YL043CY01 | I2C | 118x61.46x1.28 | Glass+Glass | MSG2138A | 3 Points | Read More | |
| 5.0 inch | YL050CY01 | I2C | 127.0x85.8x1.83 | Glass+Glass | FT5316 | 5 Points | Read More | |
| 7.0 inch | YL070C701 | I2C | 163.5x99.6x1.43 | Glass+Glass | FT5316 | 5 Points | Read More | |
| 10.1 inch | YL1012934 | I2C and USB | 251x 174 x 1.1 | Glass+Film+Film | GT9271 | 5 Points | Read More | |
| 10.4 inch | YL1042934 | I2C | 227X175.8X2.2 | Glass+Flim+Flim | EETI | 5 Points | Read More |
|

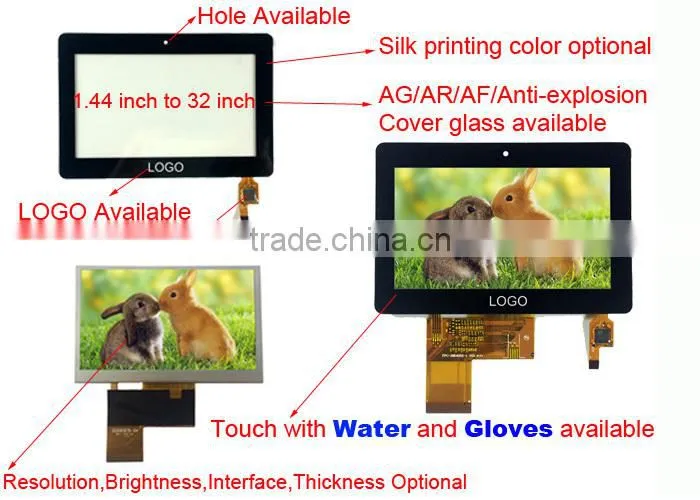

We have some standard products, also, we can customized the capacitive touch screen according to the customers' special requirements, the customized solution as the following:
All our products are standard packed, you can contact us sales for detailed information.
We can ship the products by DHL, UPS, FedEx,EMS Express.
The solution and application of all touch screen and touch screen module
Why choose Yunlea?
(1)13000 Square meter factory,main for CTP and TFT ,larger productuion capacity ensure the fastest delivery.
(2)High quality Control with CE,ROHS and so on approved.
(3)Precise and advanced equipments
(4)More than 10 years of industry experience and involved main markets all over the world
(5)Dedicated and professional sales team will offer you 24 hours online and immediate service
(6)OEM and ODM welcome,12months warranty on our product
(7)Our mission is to help our customers achieve success, then fulfill our both dreams
1.What is your delivery method?
DHL , UPS , FEDEX ,TNT
2. What is the lead time of the products?
Samples in stock will be sent within 3 days after payment.
Two to Four weeks for mass production
3. Payment methods?
T/T, Paypal and Western union etc.
For samples: payment in advance.
For mass production: 50% deposit and 50% balance before shipment.
4. How long is the warranty period?
Generally the warranty period is one year. It depends on different products.
5.What is the Product MOQ?
Different product has the different MOQ, please contact us sales for detailed information.
6.What is the products application?
Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields.
