Home > Products > Auto Level > auto level b20,sokkia automatic level,rotary laser level,strumenti topografici topcon,auto nivel,digital level,topcon laser
auto level b20,sokkia automatic level,rotary laser level,strumenti topografici topcon,auto nivel,digital level,topcon laser
USD $419 - $420
/ Set
1 Set(Min.Order)
- 100 Unit / Units per Month
- SHANGHAI
- Credit Card
You May Like
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | sokkia | Model Number: | B20 |
Product Description
Product Description
Sokkia B series automatic levels feature enhanced reliability under all environmental conditions. Tough and compact bodies are more tightly sealed against water, humidity and dust (IPx6). The B series levels provide quick setup, easy sighting, and superior durability against vibration and shock, ensuring the increased productivity over an extra-long period of time.

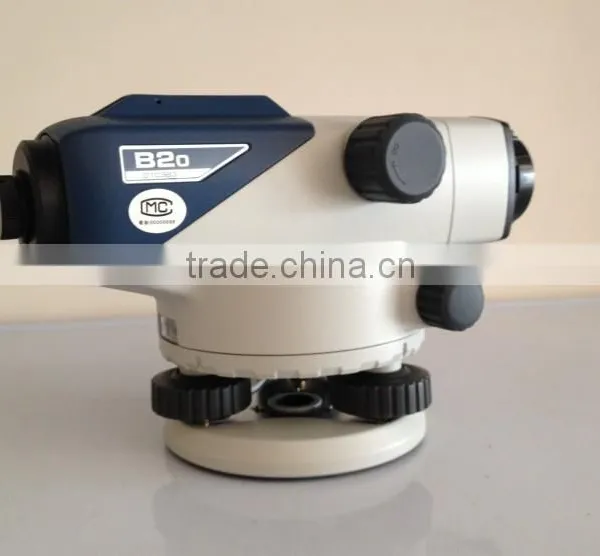

Sokkia automactic level B20
| Model | B20 |
| Telescope | |
| Length | 215mm (8.46in.) |
| Magnification | 32x |
| Objective aperture | 42mm (1.65in.) |
| Resolving power | 3" |
| Field of View | 1°20' |
| (at 100m/328ft.) | (2.3m / 7.5ft.) |
| Minimum focus | 0.2m (7.9in.) from end of telescope |
| 0.3m (1ft.) from instrument center | |
| Image | Erect |
| Reticle pattern | Wedge |
| Stadia constant | 0 |
| Stadia ratio | 100 |
| Focusing knob | 2-speed |
| Sighting aid | Peep sight |
| Lens hood | Retractable |
| Accuracy (standard deviation for 1km double run leveling) | |
| Without micrometer | 0.7mm |
| (0.03in.) | |
| With micrometer | 0.5mm |
| (0.02in.) | |
| Compensator | |
| Type | Pendulum compensator with magnetic damping system |
| Setting accuracy | 0.3" |
| Working range | ±15' |
| Circular level | |
| Sensitivity | 10' / 2mm |
| Mirror | Pentaprism |
| Horizontal circle | |
| Diameter | 103mm (4.1 in.) |
| Graduations | 1° / 1gon |
| General | |
| Horizontal motion drive | Clampless, endless, double-sided knobs |
| Water resistance | IPX6 (EC 60529:2001) |
| Operating temperature | -20 to +50°C (-4 to +122°F) |
| Width | 130mm (5.12in.) |
| Length | 215mm (8.46in.) |
| Height | 140mm (5.51in.) |
| Weight | 1.85kg (4.1 lb.) |
