Help CenterSokkia B20 Auto Level
US$ 419 - 420
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Sokkia
Model Number:
B20
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Pentax AP281 Auto Level,nivelUS$ 119 - 120MOQ: 1 Piece -
GANCE G3 Gance G2 AUTO LEVELUS$ 99 - 100MOQ: 1 Set
-
Good Quality AUTO LEVEL AT-B4 Surveying InstrumentUS$ 209 - 210MOQ: 1 Set
-
Hot Sell AUTO LEVEL AT-B4 Nice PriceUS$ 209 - 210MOQ: 1 Set
-
AUTO LEVEL AT-B4 Surveying Instrument Have a Good PriceUS$ 209 - 210MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
Sokkia
Model Number
B20

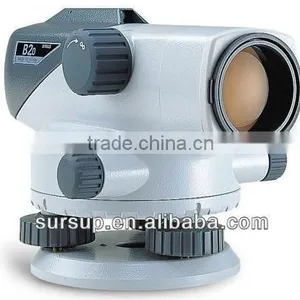

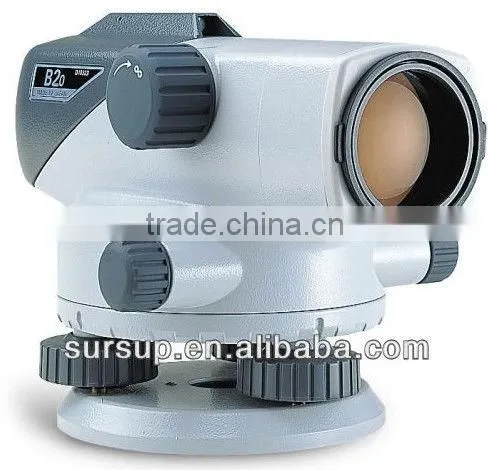

Sokkia B20 Auto Level
Place of Origin:Guangdong China (Mainland)
Brand Name:Sokkia
Model Number:B20
Telescope Length:215mm (8.46in.)
Telescope Magnification:32x
Objective Aperture:42mm (1.65in.)
Field of View (at 100m/328ft.):1°20' (2.3m / 7.5ft.)
Minimum Focus:0.2m (7.9in.) from end of telescope 0.3m (1ft.) from instrument center
Image:Erect
Compensator Type:Pendulum Compensator With Magnetic Damping System
Compensator Setting Accuracy:0.3"
Compensator Working Range:±15'
Water Resistance:IPX6 (EC 60529:2001)
| Model | B20 |
| Telescope | |
| Length | 215mm (8.46in.) |
| Magnification | 32x |
| Objective aperture | 42mm (1.65in.) |
| Resolving power | 3" |
| Field of View | 1°20' |
| (at 100m/328ft.) | (2.3m / 7.5ft.) |
| Minimum focus | 0.2m (7.9in.) from end of telescope |
| 0.3m (1ft.) from instrument center | |
| Image | Erect |
| Reticle pattern | Wedge |
| Stadia constant | 0 |
| Stadia ratio | 100 |
| Focusing knob | 2-speed |
| Sighting aid | Peep sight |
| Lens hood | Retractable |
| Accuracy (standard deviation for 1km double run leveling) | |
| Without micrometer | 0.7mm |
| (0.03in.) | |
| With micrometer | 0.5mm |
| (0.02in.) | |
| Compensator | |
| Type | Pendulum compensator with magnetic damping system |
| Setting accuracy | 0.3" |
| Working range | ±15' |
| Circular level | |
| Sensitivity | 10' / 2mm |
| Mirror | Pentaprism |
| Horizontal circle | |
| Diameter | 103mm (4.1 in.) |
| Graduations | 1° / 1gon |
| General | |
| Horizontal motion drive | Clampless, endless, double-sided knobs |
| Water resistance | IPX6 (EC 60529:2001) |
| Operating temperature | -20 to +50°C (-4 to +122°F) |
| Width | 130mm (5.12in.) |
| Length | 215mm (8.46in.) |
| Height | 140mm (5.51in.) |
| Weight | 1.85kg (4.1 lb.) |
