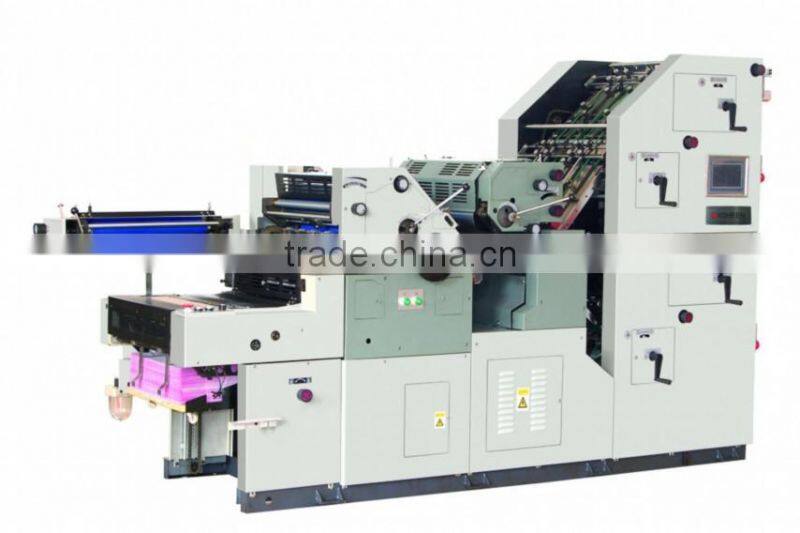

double colors printer with collating machine ,double numbering machine
Product Features of double colors printer with collating machine,double numbering machine:
1.The high degree of automation, adopt printing "key" operation, effectively improve the work efficiency.
2. Reasonable structure design, low machine height, easy to operate, large amount could be loaded at one time.
3. Adopt microcomputer control, human-machine interface touch screen. Paper feed and number code dial controlled by pneumatic components, fully ensure a stable and reliable machine operation.
4. Precise detection by ultrasonic, to avoid double sheets, paper jam etc.
5. Automatic oil supply system, the vertical and horizontal perforating blade could be adjusted accordingly.
6. The angle of every paper feeding unit is small, ensure the paper delivery smoothly.
7. The double numbering, collating and printing machine can realize skipping bill edge printing function (same bill no. different bill edge content).
8. Double colors print and double number codes print system are the options.
Technical Parameters of double colors printer with collating machine, double numbering machine
Type |
XH47ANPS-4PC |
XH56ANPS-4PC |
Max. paper size |
460*365mm |
560*390mm |
Max. printing area |
450*345mm |
544*375mm |
Min. paper size |
210*210mm |
250*210mm |
Paper weight |
28-157g/sqm |
28-157g/sqm |
No. of ink rollers |
Main system :10pcs ink rollers (2pcs form ink rollers) NP system: 6pcs ink rollers(2pcs form ink rollers)(one set) |
|
No. of dampening rollers |
4pcs(1pc form dampening roller) |
|
Registering mechanism |
Wheel roller type side pull |
|
Printing speed |
2000-6000 sheets/hour |
|
Min. space between codes |
Vertical Number: vertical: 71mm,horizontal:48mm,gripper:25mm Horizontal Number: vertical:47mm,horizontal:60mm, gripper:25mm |
|
Motor power |
Main motor:1.5KW/220V Pump motor:0.55KW/220V *4SETS |
|
Machine size |
2900*935*1680mm |
2900*1035*1680mm |
Weight |
1900kg |
2000kg |
Your best partner on on numbering, printing, perforating equipment
About XSHEEN Technology:
Any requirements can immediately contact me on mobile/whatsapp/wechat:+86 18616909963
