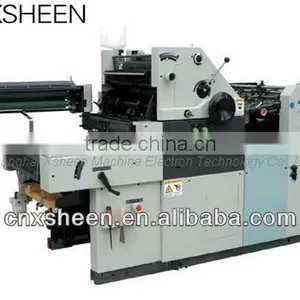

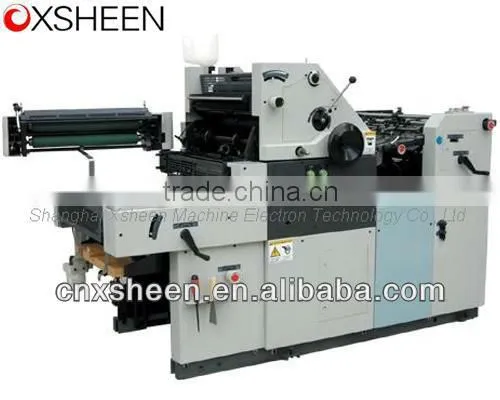

XH-62S single color offset press
Features:
1.Easy operation: Water&ink feeding and impression are both operated by one switch separatedly. The impressing roller on/off is controlled by Electric Eye accurately and reliably.
2.Precise location: Front guide, side-pulled-guide, feed-table tune-up, plate tune-up, which ensure locating precision of paper sheets and perfect printing results.
3.Separating damping from inking: Damping system is separated from inking system. It can adjust dampening and inking flexibly, which can content the request of different prints for water and ink.
4.Presetting counter. It adopts electromagnetic presetting counter. If the printing of presetting finishes, the input stops automatically.
5.Overlap detection: It can exclude the trouble such as overlap and non-stoped print.
6.The whole machine is controlled by PLC Computer, with the function of stoping printing automatically when paper blocked.
Specification
Model |
XH62S |
XH62SNP |
|
Max. paper width(mm) |
620x440 |
620x440 |
|
Max. printing size(mm) |
610x420 |
610x420 |
|
Min. paper size(mm) |
210x297/A4 |
210x297/A4 |
|
Plate size(mm) |
620x485x0.15 |
620x485x0.15 |
|
Rubber blanket size(mm) |
620x510x1.95 |
620x510x1.95 |
|
Paper weight |
40~250gsm |
40~250gsm |
|
Register device |
Side pull guide |
||
Ink roller |
16pcs (3 forme roller) |
16pcs (3 forme roller) |
|
Damping roller |
5pcs (2 forme roller) |
5pcs (2 forme roller) |
|
Printing speed |
2000~9000 pcs/h |
2000~9000 pcs/h |
|
Main power (KW) |
1.1 |
1.1 |
|
Air pump motor (KW) |
0.55 |
0.55 |
|
Power |
220V50Hz |
220V50Hz |
|
Overal dimension(mm) |
2200x1100x1500 |
2200x1100x1500 |
|

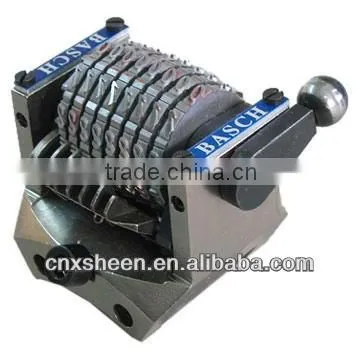

Number capacity: |
Lateral: 7 row x 7 column=49; Vertical: 5 row x 8 column=40; Ink roller: 6 pcs (Ink fountain roller: 2 pcs) |
||
