Air Compressor parts DC 24V / AC 24V hydraulic solenoid valve 39583943

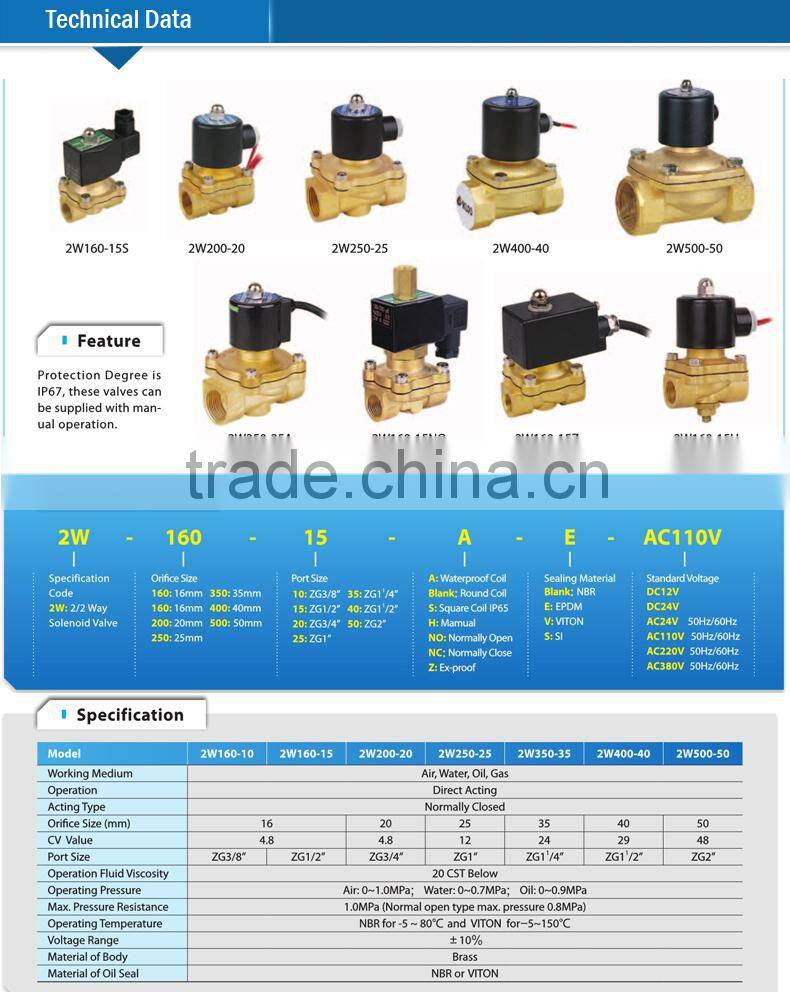

General Characteristics
Solenoid Valve Technical data: 1. Working Pressure: 0.4 ~ 0.6Mpa 2. Working Media: Clean air 3. Voltage: DC24± 10%, AC220V± 10% if you need others voltage, please also tell us, we can offer 24V, 110V.
Air Compressor Solenoid Valves , Ingersoll Rand Low Pressure Solenoid Valve 39583943
Solenoid Valve Function : Control compressor loading and unloading, according to the loading and unloading pressure control pressure unloading valve open or closed.
| Type | Solenoid valve |
Characteristic |
Low pressure solenoid valve with pilot operated diaphragm construction for vacuum use |
Working Medium |
Vacuum, air |
Type |
Normally closed (open) type |
Operating Temperture |
NBR Seal:14F to 176F, -10 to 80°C EPDM Seal:14F to 250F,-10 to 120°C VITON Seal:14F to 300F,-10 to 150°C |
Port Size |
1/2",3/4", |
Port Thread |
BSPP ,BSPT ,NPT ,FLANGE |
Orifice (mm) |
15,20 |
Voltage |
DC - 12V,24V AC - 24V,120V, 240V@60HZ 110V, 220V@50HZ |
Tolerance |
-10%~+10% |
Working-pressure |
0.1~0.5Mpa |
Coils |
S21B, 22VA(AC), 14W(DC), IP65,100%ED NASS COIL 0543 on request |
Material |
Body - Brass Seal -VITON Armature Tube - Stainless Steel 304 Plunger - Stainless Steel 430F Stop -SS430F Springs - SS 304 Shading Rings - Stainless Steel 304 |

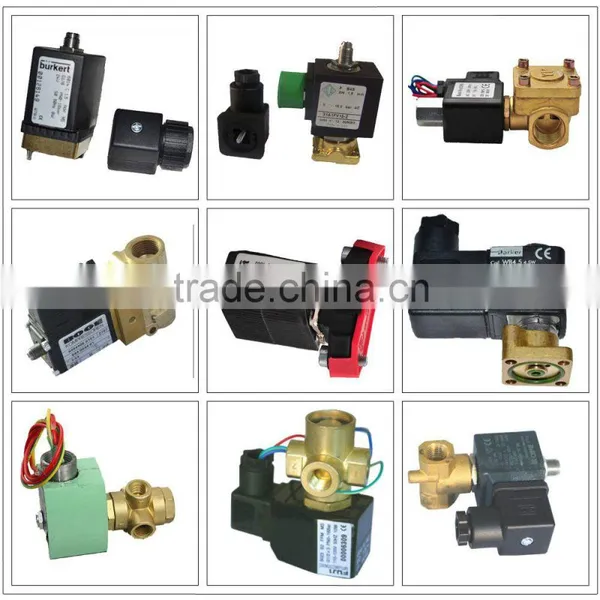

--Part Number for refer:
| Solenoid valve | 1089062113 |
| Solenoid valve | 1089062119 |
| Solenoid valve | 1089062111 |
| Solenoid valve | 22410286 |
| Solenoid valve | 22516025(110V) |
| Solenoid valve | 39184841(110V) |
| Solenoid valve | 39120472(110V) |
| Solenoid valve | 39476569(110V) |
| Solenoid valve | 250038-666 |
| Solenoid valve | 220V/1089062114 |
| Solenoid valve | 24V/1089062110 |
| Solenoid valve | 1089070209 |
| Solenoid valve | 1089050506(24v) |
| Solenoid valve | 1089070213 |
| Solenoid valve | 1089070210 |
| Solenoid valve | 1089070214 |
| Solenoid valve | 250038-666(110V) |
| Solenoid valve | 250038-755(220V) |
Payment packing and shipping
Fore more details, welcome to contact us! :-)
| Dongguan City Jiubei Compressor Parts Co., Ltd. |
| Whatapp: 137584179 |
| Mob: 0086-13412579191 |
| Skype: part.fg19 |
| QQ: 2017846174 |
| Add: 2F, Building C , Xingshun Industry Zone ,Chang'an Town , Dongguan, China |
