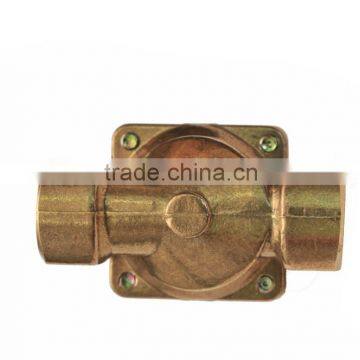

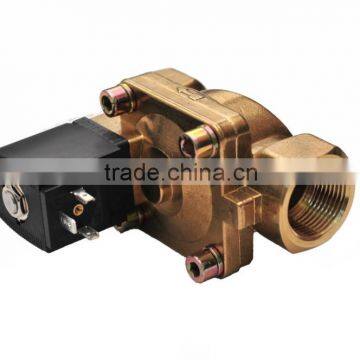

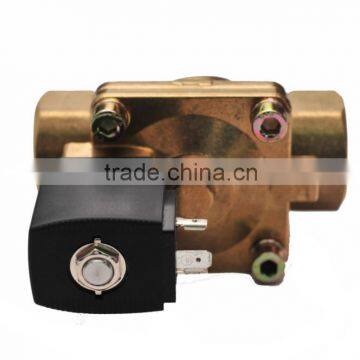

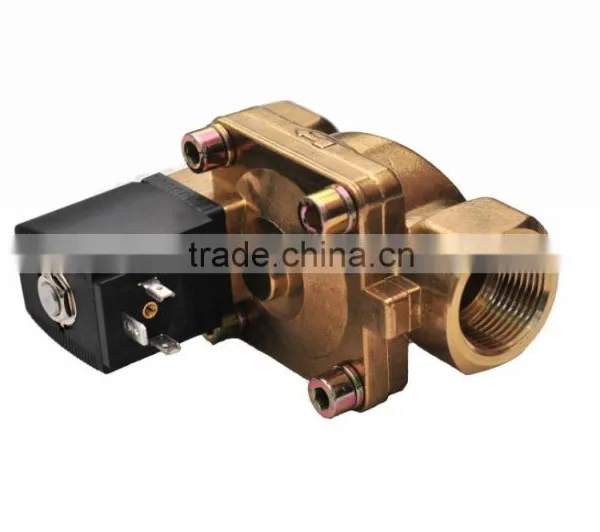

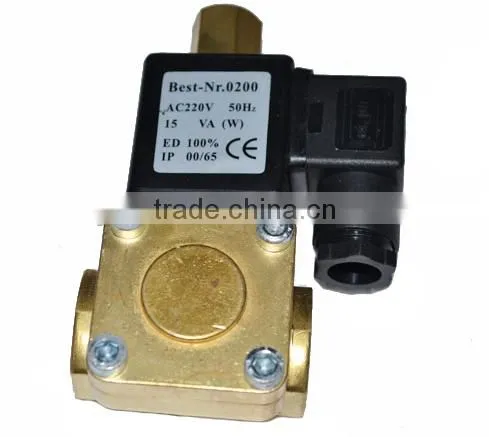

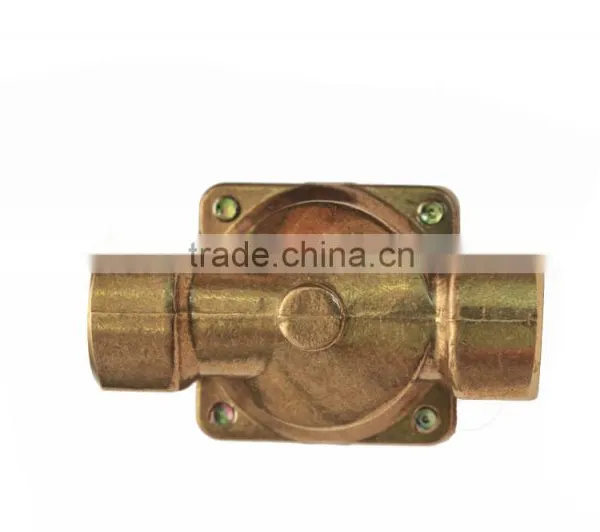

Compressor replacement parts OEM BEST unloading soleniod valve
General Characteristics
1. Supplied both normally closed (NC) and normally open (NO) with de-energized coils.
2. Wide choices of coils for AC and DC.
3. Suitable for all fluorinated refrigerants.
4. Opening pressure diff.: 0-21bar
5. Max. working pressure:25bar
6. Temperature of medium -25℃~120℃.
7. Working life:≥250,00hrs
8. Versions with UL and CUL can be supplied to special order.
| Type | Solenoid valve |
Characteristic | Low pressure solenoid valve with pilot operated |
Working Medium | Vacuum, air |
Type | Normally closed (open) type |
Operating Temperture | NBR Seal:14F to 176F, -10 to 80°C EPDM Seal:14F to 250F,-10 to 120°C VITON Seal:14F to 300F,-10 to 150°C |
Port Size | 1/2",3/4", |
Port Thread | BSPP ,BSPT ,NPT ,FLANGE |
Orifice (mm) | 15,20 |
Voltage | DC - 12V,24V |
Tolerance | -10%~+10% |
Working-pressure | 0.1~0.5Mpa |
Coils | S21B, 22VA(AC), 14W(DC), IP65,100%ED |
Material | Body - Brass |

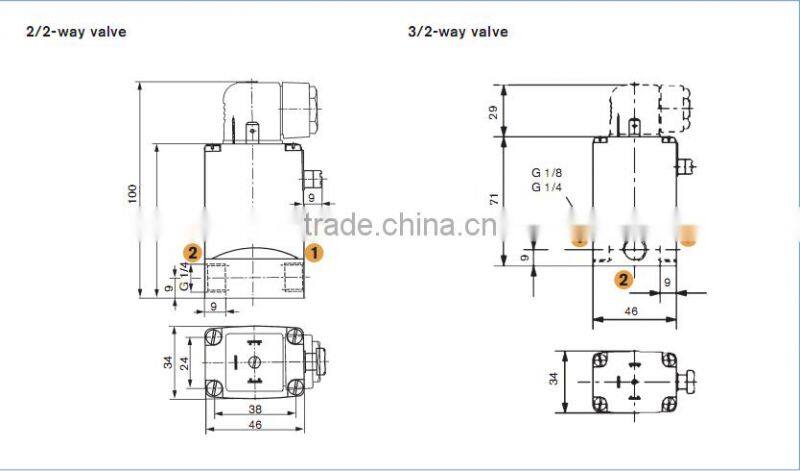

Model choosing:
| Port | Orifice | Cv | Min Pressure | Max Pressure | Seals | Body | |
| Material | Material | ||||||
| Size | AC(22VA) | DC(14W) | |||||
| 1/2" | 15 | 4.5 | 0.0MPa | 0.1MPa | 0.1MPa | NBR, | Brass |
| EPDM, | |||||||
| 3/4" | 20 | 9.3 | 0.0MPa | 0.03MPa | 0.03MPa | VITON | |
Part Number for refer:
| Solenoid valve | 1089062113 |
| Solenoid valve | 1089062119 |
| Solenoid valve | 1089062111 |
| Solenoid valve | 22410286 |
| Solenoid valve | 22516025(110V) |
| Solenoid valve | 39184841(110V) |
| Solenoid valve | 39120472(110V) |
| Solenoid valve | 39476569(110V) |
| Solenoid valve | 250038-666 |
| Solenoid valve | 220V/1089062114 |
| Solenoid valve | 24V/1089062110 |
| Solenoid valve | 1089070209 |
| Solenoid valve | 1089050506(24v) |
| Solenoid valve | 1089070213 |
| Solenoid valve | 1089070210 |
| Solenoid valve | 1089070214 |
| Solenoid valve | 250038-666(110V) |
| Solenoid valve | 250038-755(220V) |
Dongguan City Jiubei Compressor parts Co., Ltd was established in 2000, located in Chang' an town, Dongguan city--" China National Machinery and hardware mold town".
We are a Hi-Tech company specialized in researchm development, manufacture and distribution of air compressor spare parts. With our rich experience, professional technology and rigorous quality control, our products are widely used in various brand air compressors.
Sticking on the principle of " super quality, satisfactory service ", we have been stricing hard to build the most complete variety platform of air compressors spare parts in China.
1 Q: How many payment I can choose?
A: The payment include: TT, Paypal, West union
2 Q: How about delivery time?
A: If we have the stock, we will shipping it in 2 workdays after we recieved your payment; if out of stock, it depends.
3 Q: Can I get the samples?
A: Yes, we offer the sample, but not free, and please pay the shipping cost.
4 Q: How about the pakage?
A: Neutral packing or brand pack as your requirement
5 Q: How many delivery ways?
A: Three shipping ways: Air freight, express and sea
