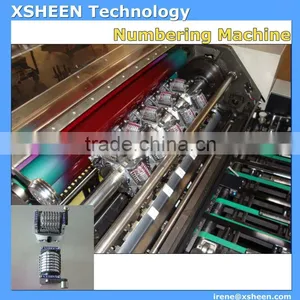

23) Number Plate Press Machine

Name: 23) Number Plate Press Machine
Brand: XSHEEN
SKU: 109543335
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

XSHEEN

Model Number:

XHDM570

Shanghai Xsheen Machine Electron Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name XSHEEN

Model Number XHDM570

After-sales Service Provided Engineers available to service machinery overseas

Condition New

Certification CE

Specifications

number plate press machine XHDM570 , printing numbering machine, numbering machine

number plate press machine XHDM570 , printing numbering machine, numbering machine

Features of number plate press machine:

1. Lateral and Vertical Perforation can be done at the same time;

2. Perfect Numbering Position & Legible Print with resin plate printing;

3. Numbering Speed up to 8,000 sheets per hour;

4. LCD computer controlling system is optional

5. Brand Parts: France Components (Schneider) & Japanese Bearings (NHK);

6. Oil Free Vacuum Pump adopts Japanese Technology;

7. Positive Limitation Protection is adopted to make sure safe operation;

8. Automatic Powdering & Blower system;

9. High quality Feeding Rubber-tired & Double Sheets Detection Device;

10. Chrome plated Technology and Stainless Steel Material are used to protect the roller

Technical data of number plate press machine:

Model	XHDM480	XHDM570	XHDM630
Max. Paper Size	470x360mm	560x400mm	620x440mm
Min. Paper Size	180x150mm
Paper Weight	28-250gsm
Printing Speed	2000-8000 sheets/hour
Ink Roller	6 rollers(ink form rollers: 2pcs)
Number capacity:	Lateral: 7 row x 7 column=49 Vertical: 5 row x 8 column=40	Lateral: 7 row x 8 column=56 Vertical: 5 row x 10 column=50		Lateral: 7 row x 9 column=63 Vertical: 5 row x 11 column=55
Perforation	Min. space between lateral perforating knives: 10mm Min. space between vertical perforating knives: 30mm
Power for main motor	0.75KW	0.75KW		1.5KW
pump motor power	0.75KW
Power Supply	220V/50HZ
Dimensions	1780x935x1120mm	1900x1020x1120mm		2060x1150x1120mm
Net Weight	280kg	320kg		370kg
