Home > Electrical & Electronics > Sensor > Pressure Sensor > Sullair Brass Materials Air Compressor Pressure Sensor for Transmitter Pressure

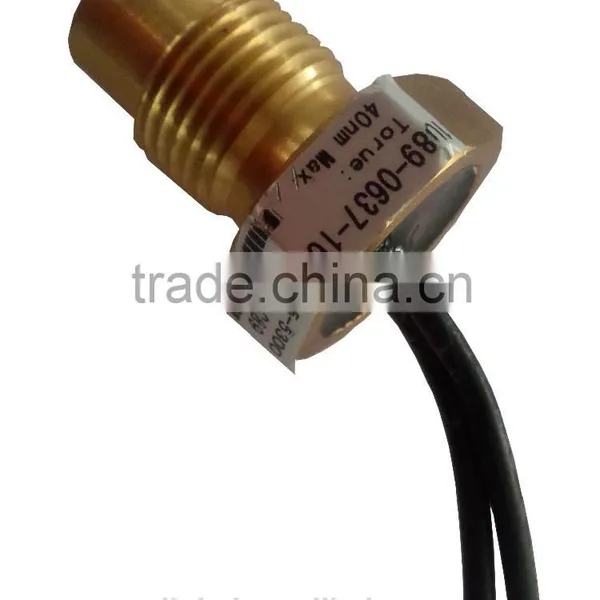

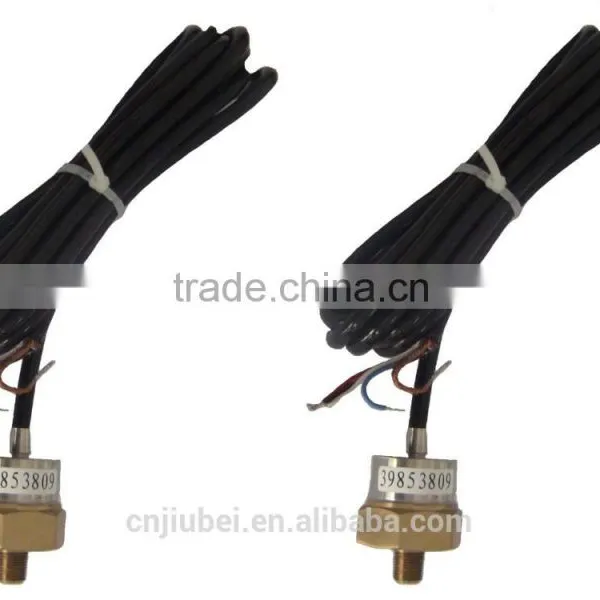

Sullair Brass Materials Air Compressor Pressure Sensor for Transmitter Pressure
US$ 25 - 30
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
JIUBEI
Model Number:
pt100
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Pressure Sensor/transducer for Air Compressor PartsUS$ 5 - 50MOQ: 1 Piece -
Air Pressure Regulator /air Compressor Regulator Parts / Atlas Copco Pressure Sensor Regulator 1089057020US$ 5 - 100MOQ: 1 Piece
-
Temperature Transmitter / Air-Compressor Parts Temperature Sensor / Temperature Transduce/ High Quality for Compressor PartsUS$ 5 - 100MOQ: 1 Piece
-
Temperature Sensor 39538079US$ 10 - 100MOQ: 1 Set
-
Sullair Compressor Spare OEM Replacement Parts Temperature Sensor 250039-909 Supplier's ChoiceUS$ 18 - 20MOQ: 1 Piece
Place of Origin
China
Brand Name
JIUBEI
Model Number
pt100
Product Description
Atlas copco air compressor parts pressure sensor 1089057551 pressure switch
Description: presssure sensor
Part number: 1089057551
Model number:GA75
technical data
| Model: | |||||||||||
| Pressure Range | 0 ~ 4bar/5bar/6bar/7bar/8Bar/9Bar/10Bar/16Bar optional | ||||||||||
| Body materials: | PA66≤30GF | Brass and PA66 ≤30GF | Brass | ||||||||
| Overload | 20 Bar or 40 Bar | ||||||||||
| Accuracy | ≤1.5%F.S.(Typical) | ||||||||||
| Max Error: | ±3%F.S. (including 0 ~ 90 °C temperature error) | ||||||||||
| Working Temp | -30°C~100 °C | ||||||||||
| Storage Temp | -40°C~85°C | ||||||||||
| Temperature Compensation | 0°C~60°C | ||||||||||
| Supply voltage | 5.0 ± 0.5VDC (default) | 6 ~ 25VDC | |||||||||
| Supply current | <10mA | ||||||||||
| Output impedance | ≥2.5kΩ | ||||||||||
| Output type: | radiometric | ||||||||||
| Output voltage | 0.5 ~ 4.5VDC (default) | 0.5 ~ 3.5VDC | 1.125 ~ 3.325VDC | ||||||||
| Pressure cycle life | >100,000 | ||||||||||
| Protection | IP65 | ||||||||||
| Pressure port | G1/4-19 | G1/8-28 | G3/8-19 | φ14 faster access | φ16 quick access options | By customized | |||||
| Measures media | Air, water, oil and other non-corrosive, non-solvent medium | ||||||||||
| Vibration | 10Hz,3mm/ one hour | ||||||||||
| Cable | Red wire - +5VDC, Black(or white)-GND, Blue(or green)-V out | ||||||||||
| Connector | 1pin-5VDC,2pin-null,3pin-Vout,4pin-GND(Acquiescence type:C2521HF-4P) | ||||||||||
| Certificate approving: | ROSH and CE Certificate. | ||||||||||
| Remarks: | Special applications request ,can custom by order | ||||||||||

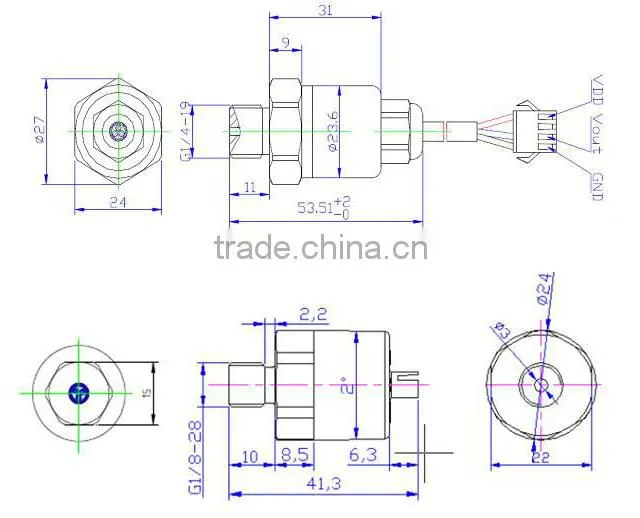

Drawing for pressure sensor
List of part number for sensor for reference
| 100003018 | Temperature Sensor | 1089057553 | Pressure Sensor |
| 100002946 | Temperature Sensor | 1089057556 | Pressure Sensor |
| A10630674 | Temperature Sensor | 1089057558 | Pressure Sensor |
| A03740577 | Temperature Sensor | 1089057511 | Pressure Sensor |
| 100010275 | Temperature Sensor | 1089057541 | Pressure Sensor |
| 1089057534 | Temperature Sensor | 1089057551 | Pressure Sensor |
| 639002803P | Temperature Sensor | 1089057533 | Pressure Sensor |
| 1089057407 | Temperature Sensor | 1089057573 | Pressure Sensor |
| 1089057404 | Temperature Sensor | 1089057565 | Pressure Sensor |
| 1089057455 | Temperature Sensor | 1089057535 | Pressure Sensor |
| 1089057449 | Temperature Sensor | 1089057574 | Pressure Sensor |
| 1089057444 | Temperature Sensor | 1089057564 | Pressure Sensor |
| 1089057464 | Temperature Sensor | 1089057544 | Pressure Sensor |
| 1089057401 | Temperature Sensor | 1089057578 | Pressure Sensor |
| 1089057402 | Temperature Sensor | 1089057528 | Pressure Sensor |
| 1089057403 | Temperature Sensor | 1089057520 | Pressure Sensor |
| 1089057405 | Temperature Sensor | 1089057543 | Pressure Sensor |
| 1089057406 | Temperature Sensor | 1089962533 | Pressure Sensor |
| 1089057408 | Temperature Sensor | 1089962536 | Pressure Sensor |
| 1089057441 | Temperature Sensor | 1089057530 | Pressure Sensor |
| 1089057440 | Temperature Sensor | 1089962513 | Pressure Sensor |
| 1089057416 | Temperature Sensor | 1089962514 | Pressure Sensor |
| 1089057480 | Temperature Sensor | 1089962518 | Pressure Sensor |
| 1089057471 | Temperature Sensor | 1089957980 | Pressure Sensor |
| 1089057445 | Temperature Sensor | 635007901 | Pressure Sensor |
Ordering guide:
In order to recommend you the most suitable sensor , please advise us the OEM part number for checking or show us following necessary information according to your practical situation.
1, What is your medium ?
Air, water, oil and other non-corrosive, non-solvent medium
2, Working temperature ?
-30°C-100°C
3, Pressure range ?
0 ~ 4bar/5bar/6bar/7bar/8Bar/9Bar/10Bar/16Bar optional
4, Output signal?
0.5-4.5V or other
5, Pressure port:
1pin-5VDC,2pin-null,3pin-Vout,4pin-GND(Acquiescence type:C2521HF-4P)
Terms & Service
1, Payment: T/T in advance or PayPal,Western Union
2, Delivery time : 7-10 working days after receipt of Bank copy
4, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
5, 7 working days free replace & 1 year free repair for quality warranty
Why do you choose our product:
1, 14years experience in air compressor parts area
2, have been providing to 2,000 customer in domestic and oversea customers
3, high work effiency
4, original manufacturer and supplier
5, seriously quality control
2, have been providing to 2,000 customer in domestic and oversea customers
3, high work effiency
4, original manufacturer and supplier
5, seriously quality control
