Lithium 2770185 3.2v 20ah lifepo4 battery cell with Alu case for EV and power storage
Product Description for Lithium 2770185 3.2v 20ah lifepo4 battery cell with Alu case for EV and power storage
1.Model: 2770185
2:Voltage: 3.2V
3:Capacity: 20Ah

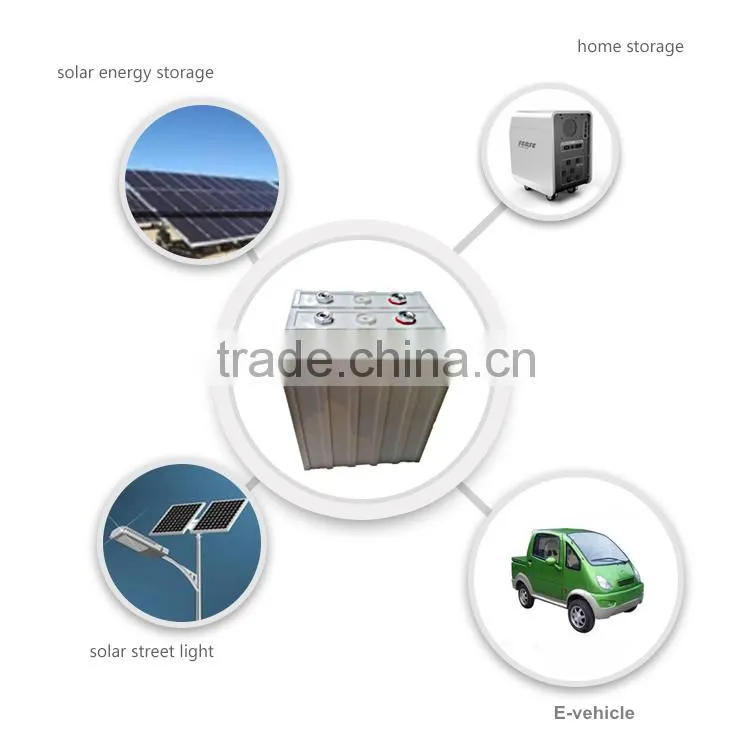

4.For Storage and EV
Aluminum case for 3.2V 20Ah LiFePo4 battery cell, Its consistant quality and Impact resistant better. and It would be more safety.
Parameter Table:
No. |
Item |
unit |
Parameters |
Remark |
|
1 |
Nominal Capacity |
Ah |
20.0 |
Capacity according to standard discharge, After standard charge |
|
2 |
Nominal Voltage |
V |
3.2 |
Average Voltage according to standard discharge, After standard charge |
|
3 |
Charge Type |
/ |
CC/CV |
/ |
|
4 |
Charge Cut-off Voltage |
V |
3.65 |
/ |
|
5 |
Discharge Cut-off Voltage |
V |
2.0 |
/ |
|
6 |
Continuous discharge current |
A |
100 |
constant current |
|
7 |
Max Discharge current |
A |
200 |
10s |
|
| Max charge current | A | 100 | |||
9 |
Weight |
g |
700±35g |
|
|
10 |
Inner Resistance |
mΩ |
<3 |
/ |
|
11 |
Dimension(T×W×H) |
|
27.5×70×185mm |
|
|
12 |
Working Temperature |
Charging |
°C |
0~45 |
/ |
Discharging |
°C |
-20~60 |
/ |
||
13 |
Storage Temperature |
1 month |
°C |
-20~60 |
/ |
3 months |
°C |
-20~45 |
/ |
||
6 months |
°C |
-20~25 |
/ |
||
Atmospheric pressure |
KPa |
86~106 |
/ |
||
Relative Humidity |
RH |
25%~85% |
/ |
||

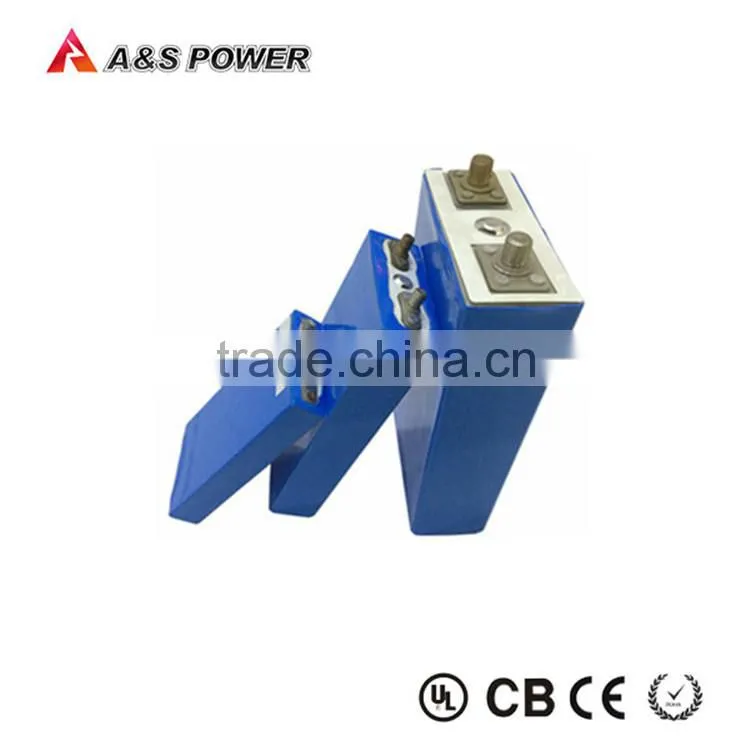

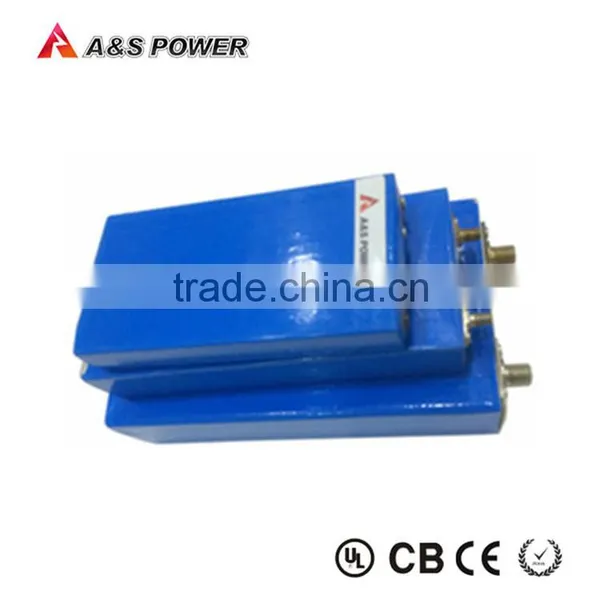

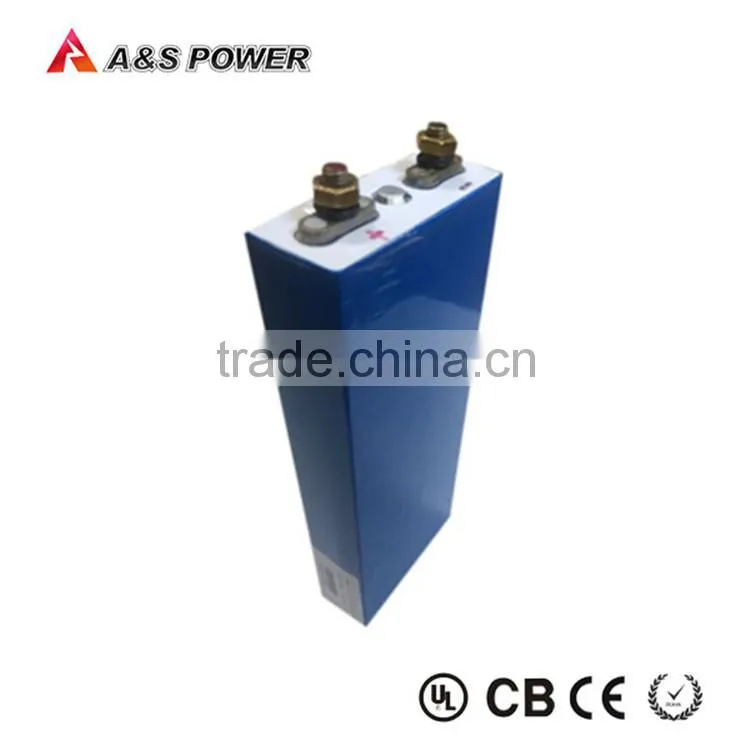

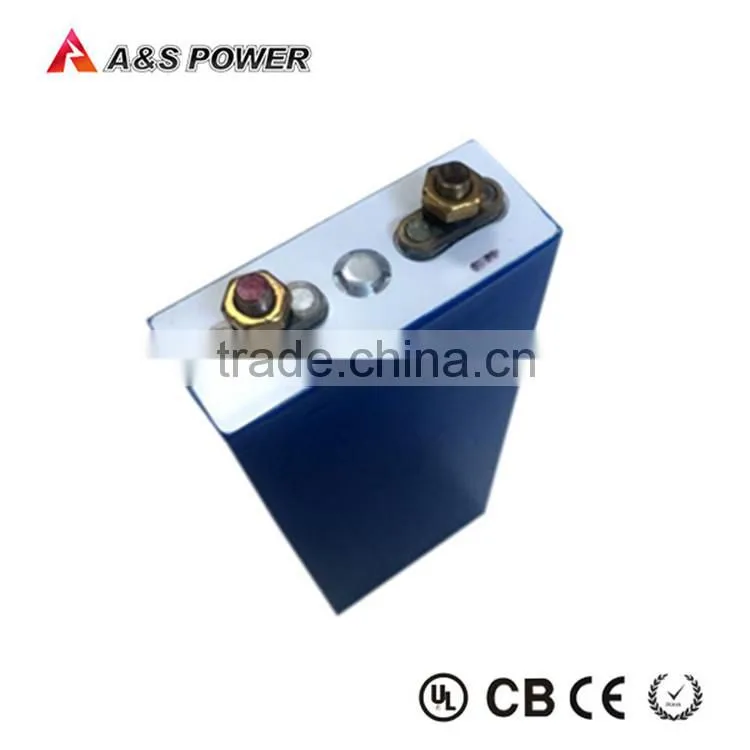

Product Picture:

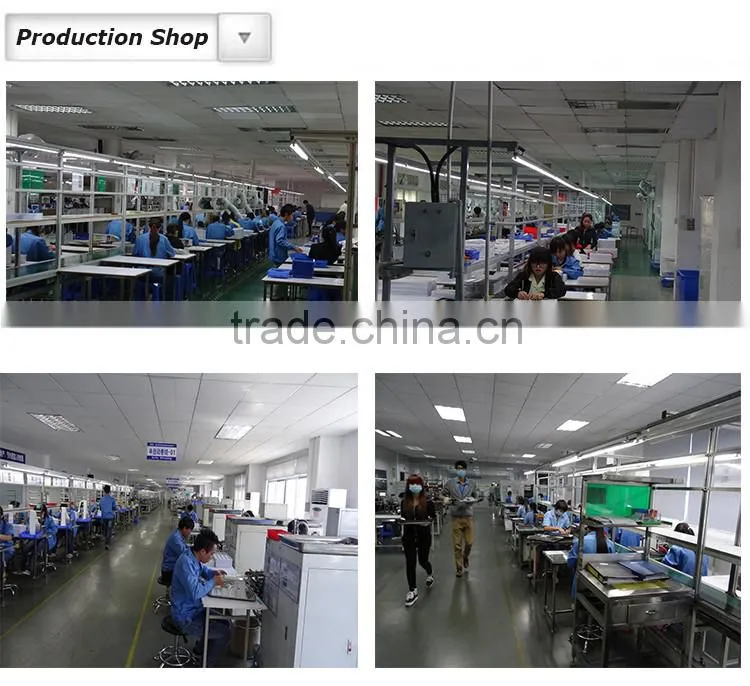

A&S Power Technology Co., Ltd. was established in 2001, and specialize in manufacturing and exporting rechargeable lithium battery, like li-ion battery, li-polymer battery and LiFePO4 battery.
Company Overview
- Established : 2001
- Capital: 20,000,000.00 RMB
- Location: Dongguan,Shenzhen
- Employee: > 600
- Daily output: 100K Li-Poly, 50K LiFePO4, 80K Li-ion 18650
1) Environmental friendly
2) High density of energy
3) Light weight
4) Low self-discharge
5) Low internal resistance
6) Long cycle life, chargeable up to 1500 - 2000 times
7) No memory effect
8) Doesn’t contain Mercury, No fire, No explosion, No leakage
