GA / ZT Series Air Compressor Pressure Sensor , Diffused Silicon Air Compressor Tools
Features: pressure sensor for air compressor
- No carry-pressure holes, no cavities planar structure
- Various forms of signal output, voltage, current, frequency signals
- High-precision, high strength
- Hygienic, anti-fouling
- High accuracy, high stability
- Corrosion protection
- RS232 air pressure transducer
Specification: pressure sensor for air compressor
Power supply |
24VDC |
Scale range |
0~100kPa…35Mpa |
Compensation temperature |
0~70℃ |
Medium temperature |
-40 ~ 125 ℃ |
Ambient temperature: |
-40 ~ 85 ℃ |
Material |
All stainless steel structure |
Overall accuracy |
0.1,0.3,0.5 level optional |
Insulation resistance |
100MΩ / 100VDC |
Zero temperature drift: |
± 0.03% FS / ℃ |
Sensitivity temperature drift |
± 0.03% FS / ℃ |
Overload pressure |
200% FS |
Long-term stability |
≤0.2% FS / year |
Working way |
gauge pressure, absolute pressure, sealing pressure |
||
Signal output |
4~20mA,1~5V,0~10mA,0~20mA,0~5V pressure sensor for air compressor |
||
--Parameters
Item |
Typical Value |
Pressure Ranges |
0-15~3000 psi |
Accuracy (Integration) |
1.0%FS |
Non Linearity |
0.50%FS |
Hysteresis |
0.50%FS |
repeatability |
0.50%FS |
Off-set of Zero |
1%FS |
Off-set of Full Scale |
1%FS |
Temperature Coefficients of zero |
0.05%FS/°C |
Excitation (U) |
9…36 VDC (Transmitter) |
1 mA & 5 VDC (Transducer) | |
Pressure Cycle |
1.00E+8 |
Isolation, Body to Any Lead |
>100 MΩ |
Proof Pressure |
3X |
Burst Pressure |
3X |
Operating Temperature |
-40 – 105 °C |
Compensation Temp. Range |
-20 – 50 °C |
Storage Temperature |
-40 – 105 °C |
Long Term Stability (6 Month) |
0.25%FS |
Medium compatibility |
316LSS Or 304L |

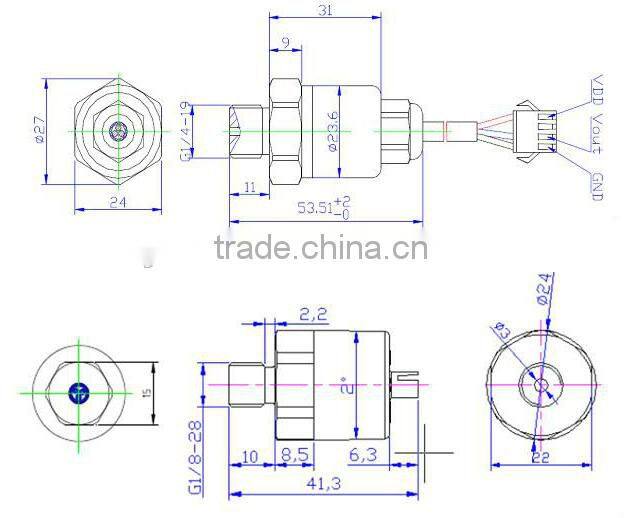

Dimension of drawing : pressure sensor for air compressor
--List of part number for sensor for reference
| 100003018 | Temperature Sensor | 1089057553 | Pressure Sensor |
| 100002946 | Temperature Sensor | 1089057556 | Pressure Sensor |
| A10630674 | Temperature Sensor | 1089057558 | Pressure Sensor |
| A03740577 | Temperature Sensor | 1089057511 | Pressure Sensor |
| 100010275 | Temperature Sensor | 1089057541 | Pressure Sensor |
| 1089057534 | Temperature Sensor | 1089057551 | Pressure Sensor |
| 639002803P | Temperature Sensor | 1089057533 | Pressure Sensor |
| 1089057407 | Temperature Sensor | 1089057573 | Pressure Sensor |
| 1089057404 | Temperature Sensor | 1089057565 | Pressure Sensor |
| 1089057455 | Temperature Sensor | 1089057535 | Pressure Sensor |
| 1089057449 | Temperature Sensor | 1089057574 | Pressure Sensor |
| 1089057444 | Temperature Sensor | 1089057564 | Pressure Sensor |
| 1089057464 | Temperature Sensor | 1089057544 | Pressure Sensor |
| 1089057401 | Temperature Sensor | 1089057578 | Pressure Sensor |
| 1089057402 | Temperature Sensor | 1089057528 | Pressure Sensor |
| 1089057403 | Temperature Sensor | 1089057520 | Pressure Sensor |
| 1089057405 | Temperature Sensor | 1089057543 | Pressure Sensor |
| 1089057406 | Temperature Sensor | 1089962533 | Pressure Sensor |
| 1089057408 | Temperature Sensor | 1089962536 | Pressure Sensor |
| 1089057441 | Temperature Sensor | 1089057530 | Pressure Sensor |
| 1089057440 | Temperature Sensor | 1089962513 | Pressure Sensor |
| 1089057416 | Temperature Sensor | 1089962514 | Pressure Sensor |
| 1089057480 | Temperature Sensor | 1089962518 | Pressure Sensor |
| 1089057471 | Temperature Sensor | 1089957980 | Pressure Sensor |
| 1089057445 | Temperature Sensor | 635007901 | Pressure Sensor |
Q1: How can I get the quotation?
A: you can advise us the part number for checking, and we will quote to you soon by email
Q2:What kind of ways for transportation ?
A:In general by air, sea or Express.(like DHL,Fedex,TNT,etc.)
Q3:How do I know the quality of productions?
A:We have a strict series of quality control, and we have perfect after service system, which can help you to solve the problem soon
Q4: If i want to change model,size,package,etc. How can I do?
A:You can contact us by skype or mail, and we will revise according to your requirement
Q5:What is the terms of payment ?
A: T/T, Western Union, paypal(need 5% paypal fee)
