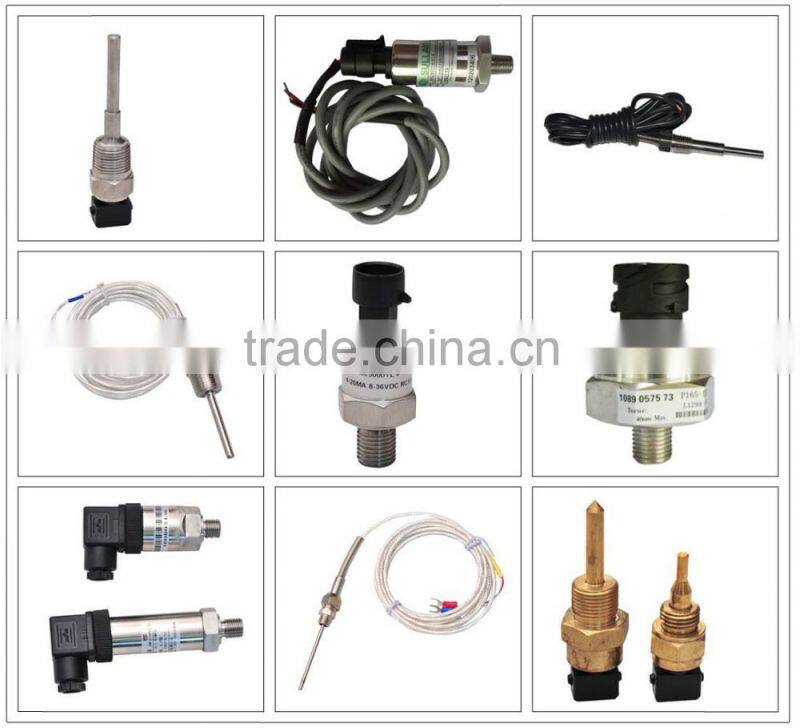

Atlas Copco Air compressor Differential Pressure Sensor 1089057551 Quality Choice

Power supply

24VDC

Scale range

0~100kPa…35Mpa

Compensation temperature

0~70℃

Medium temperature

-40 ~ 125 ℃

Ambient temperature:

-40 ~ 85 ℃

Material

stainless steel

Overall accuracy

0.1,0.3,0.5 level optional

Insulation resistance

100MΩ / 100VDC

Zero temperature drift:

± 0.03% FS / ℃

Sensitivity temperature drift

± 0.03% FS / ℃

Overload pressure

200% FS

Long-term stability

≤0.2% FS / year

Working way

gauge pressure, absolute pressure, sealing pressure

Signal output

4~20mA,1~5V,0~10mA,0~20mA,0~5V pressure sensor for air compressor

Item

Typical Value

Pressure Ranges

0-15~3000 psi

Accuracy (Integration)

1.0%FS

Non Linearity

0.50%FS

Hysteresis

0.50%FS

repeatability

0.50%FS

Off-set of Zero

1%FS

Off-set of Full Scale

1%FS

Temperature Coefficients of zero

0.05%FS/°C

Excitation (U)

9…36 VDC (Transmitter)

1 mA & 5 VDC (Transducer)

Pressure Cycle

1.00E+8

Isolation, Body to Any Lead

>100 MΩ

Proof Pressure

3X

Burst Pressure

3X

Operating Temperature

-40 – 105 °C

Compensation Temp. Range

-20 – 50 °C

Storage Temperature

-40 – 105 °C

Long Term Stability (6 Month)

0.25%FS

Medium compatibility

316LSS Or 304L
