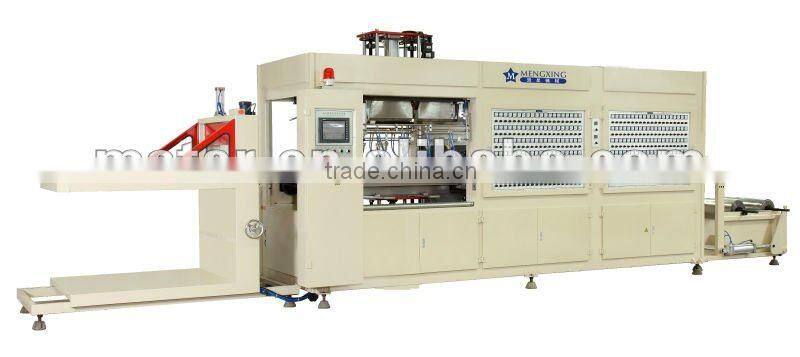

Help CenterXC46-71/122A2-WP Automatic High Speed Plastic Lid Thermoforming Machine
Related Products
-
XC46-71/122A-WP Automatic High Speed Tray Thermoforming MachineNegotiableMOQ: 1 Set -
XC46-71/122A-CWP Automatic Plastic Tray Thermoforming MachineNegotiableMOQ: 1 Set
-
XC46-71/122A2-WP New Design Auto Vacuum Thermoforming MachineNegotiableMOQ: 1 Set
-
XC46-71/122-CWP New Design Full Automatic Forming MachineNegotiableMOQ: 1 Set
-
XC46-71/122A-CWP Full Automatic High Speed Plastic Lid Thermoforming MachineNegotiableMOQ: 1 Set
Specifications
1.Save up 30-40% total power consumption2.All products data are easy to store and recall
3.Save up10-20% sheet material
Useage:
The plastic lid thermoforming machine is suitable for making all size packing containers ,in open-type with thin-wall ,by using roll-sheet , under high-speed vacuum suction-forming processing .The products out of this plastic lid thermoforming machine can be used for the package of foods .native-products,tourist-goods,textile,medical, toy,cosmetic,electrical elements and daily used hard-ware ,etc . Sheet fit to the machine Starch-deposit sheets ,light-deposit sheet ,environment sheet APET ,PETG .Color sheets :PVC,HIPS,PET,PS,PP, EPS, etc.Fiber-coating-sheet.
Structure features
1.The plastic lid thermoforming machine combine with mechanical ,pneumatic and electrical integration fully computer control .Touch Screen easy operation.
2.Inverter Feeding Driving ,length stepless adjust ,Feeding accurate,stable and high speed.(Max Feeding Speed 1000mm /per second)
3. Temperature Control system , intellectual temperature control , short heating time ( only 5 min from 0-400 degree ) ; stable ( not effect by outside voltage and temperature fluctuate is less than 1 degree) ; lower power consumption 15% , longer life of far infrared ray ceramic heater
4.Double heater system.Heater has deflection over structure ,which could close whole row of the porcelain heaters when the width of sheet is≤580mm.It can reduce power consumption 16%.

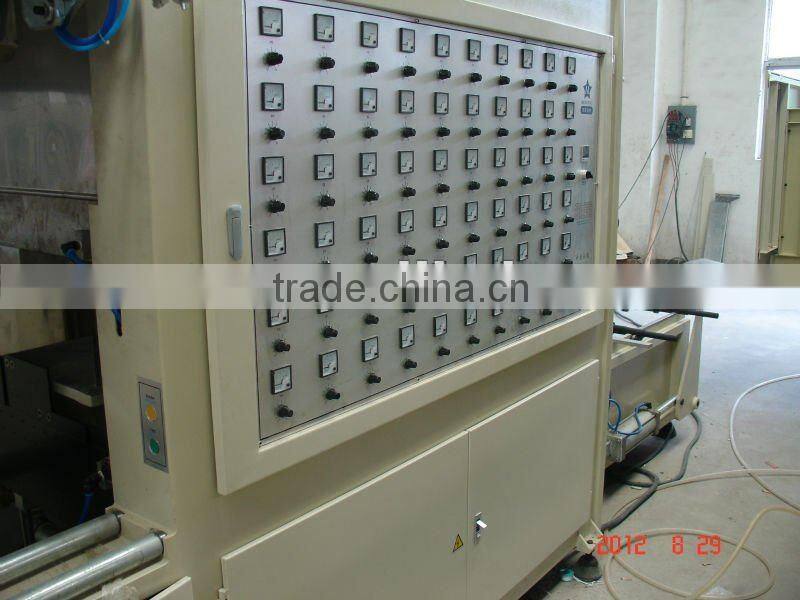

5. Heater has ten section of temperature adjust function ( 10 section ) , one control one , voltage adjust , easy and convenient for temperature control , temperature uniformity .
6. Advance feeding with the heating time automatic memory function ,machine could start production from the first feeding .
7.Two-step vacuum ,Two time of up-mould ,Mould Shaking Function ,Mould delay .
8. Up/down Mould electric stroke adjust ,easy to adjust under the mould matched situation .It could improve the accurate of moulding and quality of finished production .
9. Back acting plate position motor adjust .
10. down mould match into cushion ,avoid cushion and improve the match speed .
11. Up/down Guiding Leader with self-lubrication bearing couple .stable production and durable structure ,it could assure the high quality of finished products.
12. Heaters with moving-out structure ,could move out under the malfunction situation ,it could save the sheet materials .
13. Cylinder Sheet Loading structure ,easy for workwoman operation .
14. Cutting unit with double clamping cutting function ,could produce Male/Female and various different of products slide cutting .
15. Movement Guide Pole easy stack .
Technical Components
Touch Screen Monitor ( 5.7 “ inch /color ) |
Taiwan Delta |
PLC |
Taiwan Delta |
Inverter 2.2Kw |
Taiwan Delta |
Encoder 1024 |
Taiwan Delta |
Vacuum Pump |
Busch 0100 |
Cylinder |
China Zhicheng |
Pneumatic |
Korea Sanwo & Japan SMC |
Adjust Sprayer |
Japan Meiji |
Fan Blower(0.37Kw) |
Manda |
Contactor |
Germany,Siemens |
Thermo relay |
Germany,Siemens |
Middle relay |
Japan Omron |
Impulse Solid State Relay |
Joint Venture |
Heater |
240 SETS Far Infrared Ray Heaters |
Upper/Down Heater 240 Zone ( 1 control 1 ) | |
Technical Parameter
Model No. |
XC46-71/122A2-WP |
|
Suitable Sheet Width(mm) |
460-710 |
|
Thickness(mm) |
0.1-1.2 |
|
Max Roll Sheet Diameter(mm) |
600 |
|
Up Mould Stroke (mm) |
400 |
|
Down Mould Stroke(mm) |
300 |
|
Max Forming Area(mm2) |
680×1200 |
|
Max Forming Height Protruding(mm) |
200 |
|
Max Forming Height Concave(mm) |
150 |
|
Capacity (Cycle/min) |
4-10 |
|
Cooling Outlet |
Outlet |
4 PCS |
Spray |
8PCS |
|
Air Source |
Air Vol. (m3/min) |
≥2 |
Pressure(MPa) |
0.8 |
|
Water Consumption |
4-5 Cube/Hr |
|
Vacuum Pump ( Outlay ) |
Busch R5 0100 |
|
Power Supply |
380V/ 220V 50Hz 3Phase 4 line |
|
Heater Power(Kw) |
96 |
|
General Power Max(Kw) |
103 |
|
Dimension(L×W×H)(mm) |
9330×1676×2425 |
|
Weight(kg) |
5500 |
|
