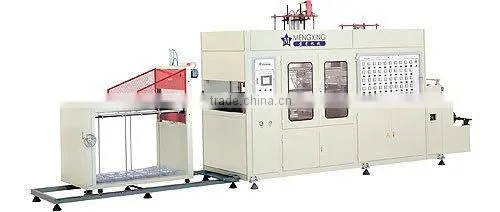

Help CenterXC50-71/122-WP Plastic Container Vacuum Forming Machine
Related Products
-
XC50-71/86A-WP High Speed Automatic Vacuum Forming MachineNegotiableMOQ: 1 Set -
XC46-71/122A-CWP Full Automatic High Speed PS Vacuum Forming MachineNegotiableMOQ: 1 Set
-
XC46-71/122A-CWP Automatic High Speed Thermoforming Packing MachineNegotiableMOQ: 1 Set
-
XC46-71/122A-WP High Speed Thermoforming Pack MachineNegotiableMOQ: 1 Set
-
XC46-71/122A2-WP Automatic High Speed Vacuum Forming Packing MachineNegotiableMOQ: 1 Set
Specifications
1.Save up 30-40% total power consumption2.All production are easy to store and recall
3.Save up 10-20% sheet material
Useage:
The plastic vacuum forming machine is suitable for making all size packing containers ,in open-type with thin-wall ,by using roll-sheet , under high-speed vacuum suction-forming processing .The products out of this plastic vacuum forming machine can be used for the package of foods .native-products,tourist-goods,textile,medical, toy,cosmetic,electrical elements and daily used hard-ware ,etc .
Sheet fit to the machine
Starch-deposit sheets ,light-deposit sheet ,environment sheet APET ,PETG .Color sheets :PVC,HIP plastic vacuum forming machine S, plastic vacuum forming ,PS,PP, EPS, etc.Fiber-coating-sheet.
Structure features
1.The plastic vacuum forming machine combine with mechanical ,pneumatic and electrical integration fully computer control .Touch Screen easy operation.
2.Inverter Feeding Driving ,length stepless adjust ,Feeding accurate,stable and high speed.(Max Feeding Speed 1000mm /per second)
3. Temperature Control system , intellectual temperature control , short heating time ( only 5 min from 0-400 degree ) ; stable ( not effect by outside voltage and temperature fluctuate is less than 1 degree) ; lower power consumption 15% , longer life of far infrared ray ceramic heater
4.Heater has ten section of temperature adjust function ( 10 section ) , one control one , voltage adjust , easy and convenient for temperature control , temperature uniformity .
5.Aadvance feeding with the heating time automatic memory function ,machine could start production from the first feeding .
6. Two-step vacuum ,Two time of up-mould ,Mould Shaking Function ,Mould delay .
7.Up/down Mould electric stroke adjust ,easy to adjust under the mould matched situation .It could improve the accurate of moulding and quality of finished production .
8. Back acting plate position motor adjust .
9. down mould match into cushion ,avoid crushion and improve the match speed .
10. Cutting unit with double clamping cutting function ,could produce Male/Female and various different of products slide cutting .
Technical Components
Touch Screen Monitor ( 5.7 “ inch /color ) |
Taiwan Delta |
PLC |
Taiwan Delta |
Inverter 2.2Kw |
Taiwan Delta |
Encoder 1024 |
Taiwan Delta |
Vacuum Pump |
Busch 0100 |
Cylinder |
China Zhicheng |
Pneumatic |
Korwa Sanwo & Janpa SMC |
Adjust Sprayer |
Janpa Meiji |
Fan Blower(0.37Kw) |
Manda |
Contactor |
German,Simen |
Thermo relay |
German,Simen |
Middle relay |
Japan Omron |
Impulse Solid State Relay |
Joint Venture |
Heater |
60 SETS Far Infrared Ray Heaters |
Upper/Down Heater 60 Zone ( 1 control 1 ) | |
Technical Parameter
Model No. |
XC50-71/122-WP |
|
Suitable Sheet Width(mm) |
500-710 |
|
Thickness(mm) |
0.1-1.2 |
|
Max Roll Sheet (mm) |
600 |
|
Up Mould Stroke (mm) |
400 |
|
Down Mould Stroke(mm) |
300 |
|
Max Forming Area(mm2) |
680×1200 |
|
Max Forming Height Protruding(mm) |
200 |
|
Max Forming Height Concave(mm) |
150 |
|
Capacity (Cycle/min) |
4-10 |
|
Cooling Outlet |
Outlet |
4 PCS |
Spray |
8PCS |
|
Air Source |
Air Vol. (m3/min) |
≥2 |
Pressure(MPa) |
0.6 |
|
Water Consumption |
3-4 Cube/Hr |
|
Vacuum Pump ( Outlay ) |
Busch R5 0100 |
|
Power Supply |
380V/ 220V 50Hz 3Phase 4 line |
|
Heater Power(Kw) |
25.4 |
|
General Power Max(Kw) |
32.7 |
|
Dimension(L×W×H)(mm) |
7080×1640×2580 |
|
Weight(kg) |
3000 |
|
