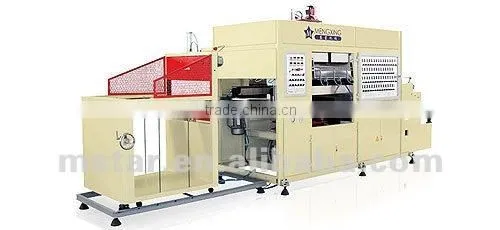

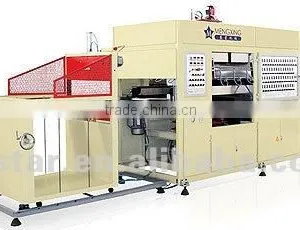

Help CenterVaccum Forming Machine
Related Products
-
Full Automatic Blister Forming MachineUS$ 30,000 - 50,000MOQ: 1 Set -
High Speed Vacuum Thermoforming MachineNegotiableMOQ: 1 Set
-
XC46-71/122A-CWP Vacuum Forming MachineUS$ 30,000 - 40,000MOQ: 1 Set
-
XC46-71/122A-WP Automatic High Speed Vacuum Forming MachineNegotiableMOQ: 1 Set
-
XC46-71/122A2-WP AUTOMATIC HIGH SPEED VACUUM FORMING MACHINENegotiableMOQ: 1 Set
Specifications
1. Save up 30-40% total power consumption2. All production data are easy to store and recall
3. Save up 10-20% sheet material
Structure features
1.The machine combine with mechanical ,pneumatic and electrical integration fully computer control .Touch Screen easy operation.
2.Inverter Feeding Driving ,length stepless adjust ,Feeding accurate,stable and high speed.(Max Feeding Speed 1000mm /per second)
3. Temperature Control system , intellectual temperature control , short heating time ( only 5 min from 0-400 degree ) ; stable ( not effect by outside voltage and temperature fluctuate is less than 1 degree) ; lower power consumption 15% , longer life of far infrared ray ceramic heater
4.Heater has deflection over structure ,which could close whole row of the porcelain heaters when the width of sheet is≤580mm.It can reduce power consumption 16%.
5. Heater has ten section of temperature adjust function ( 10 section ) , one control one , voltage adjust , easy and convenient for temperature control , temperature uniformity . 6. Aadvance feeding with the heating time automatic memory function ,machine could start production from the first feeding .
7.Two-step vacuum ,Two time of up-mould ,Mould Shaking Function ,Mould delay .
8. Up/down Mould electric stroke adjust ,easy to adjust under the mould matched situation .It could improve the accurate of moulding and quality of finished production .
9. Back acting plate position motor adjust .
10. down mould match into cushion ,avoid crushion and improve the match speed .
11. Up/down Guiding Leader with self-lubrication bearing couple .stable production and durable structure ,it could assure the high quality of finished products.
12. Heaters with moving-out structure ,could move out under the malfunction situation ,it could save the sheet materials .
13. Cylinder Sheet Loading structure ,easy for workwoman operation .
14. Cutting unit with double clamping cutting function ,could produce Male/Female and various different of products slide cutting .
15. Movement Guide Pole easy stack .
Technical Parameter
Model No. |
XC46-71/122A-WP |
|
Suitable Sheet Width(mm) |
460-710 |
|
Thickness(mm) |
0.1-1.2 |
|
Max Roll Sheet (mm) |
600 |
|
Up Mould Stroke (mm) |
400 |
|
Down Mould Stroke(mm) |
300 |
|
Max Forming Area(mm2) |
680×1200 |
|
Max Forming Height Protruding(mm) |
200 |
|
Max Forming Height Concave(mm) |
150 |
|
Capacity (Cycle/min) |
4-10 |
|
Cooling Outlet |
Outlet |
4 PCS |
Spray |
8PCS |
|
Air Source |
Air Vol. (m3/min) |
≥2 |
Pressure(MPa) |
0.8 |
|
Water Consumption |
4-5 Cube/Hr |
|
Vacuum Pump ( Outlay ) |
Busch R5 0100 |
|
Power Supply |
380V/ 220V 50Hz 3Phase 4 line |
|
Heater Power(Kw) |
54 |
|
General Power Max(Kw) |
61.23 |
|
Dimension(L×W×H)(mm) |
8070×1656×2425 |
|
Weight(kg) |
4700 |
|
