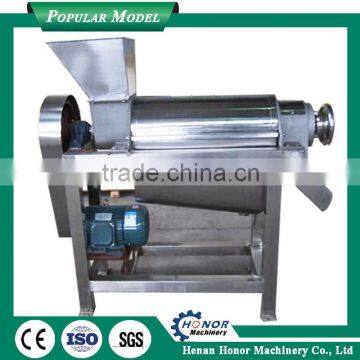

Multi Function Herb Juice Extractor Machine
Brief Introduction of Multi Function Herb Juice Extractor Machine
The screw juice extractor is specially designed for extracting juice from fruits, such as apple, orange, pineapple, pear, mango, tomato, and etc. We are engaged in offering qualified juice machines that is sturdy in construction and simple to operate. To ensure protection from rust, the side frames of the screw juice extractor are made by stainless steel. Raw juices are highly assimilable and contain, in its most natural and complete form, precious vitamins and minerals, bioflavonoid and enzymes. In addition, nutritional authorities state that raw juice is food in easily digested form.
Working Principle of Multi Function Herb Juice Extractor Machine
The fruits should be first peeled and cored if necessary and then crushed into small granule, the smaller size, the better for juice squeezer. When the fruit/vegetable granules drop into charging spout, they are propelled to the spiral chamber which is of gradually narrow design. Because of the narrow space in the spiral chamber, the granules are pressed as move forward. Fruit juices are filtered by the screen before flow into the bottom container. The slags are discharged from the circular clearance between spiral shaft and regulating head.
Parameters of Multi Function Herb Juice Extractor Machine
Model | HNLZ-0.5 | HNLZ-1.5 | HNLZ-2.5 | HNLZ-5 |
Capacity(T/H) | 0.1-0.5 | 0.3-1.5 | 1.0-2.5 | 3.0-5.0 |
Screw Rotary Speed | 410r/min | 410r/min | 410r/min | 410r/min |
Motor (kw) | 1.1 | 4 | 11 | 22 |
Screen Size | 0.2-0.6mm | 0.2-0.6mm | 0.2-0.6mm | 0.2-0.6mm |
Weight | 150kg | 250kg | 700kg | 1200kg |
Dimension(mm) | 1000*400*850 | 1300*450*1350 | 1500*700*1750 | 1800*960*2100 |

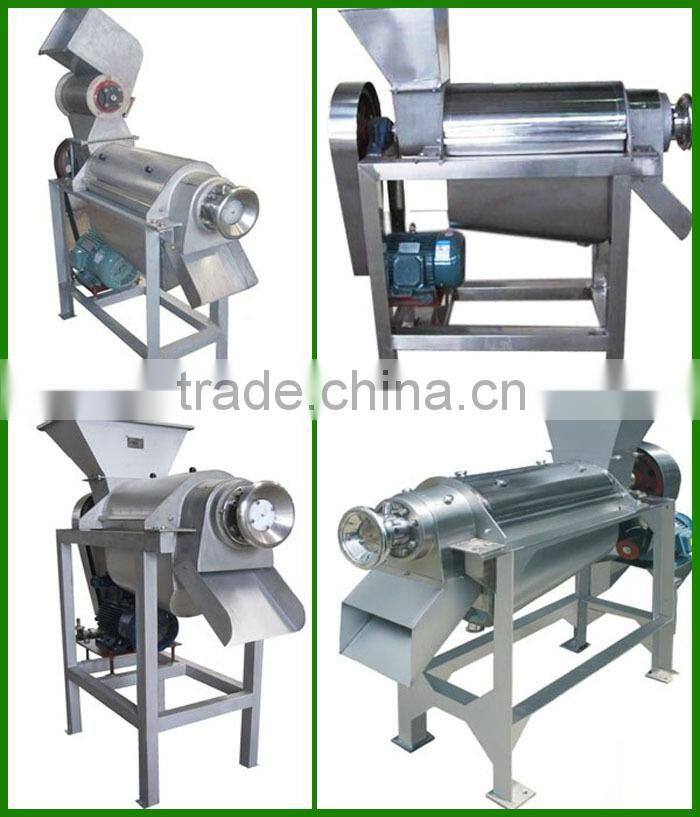

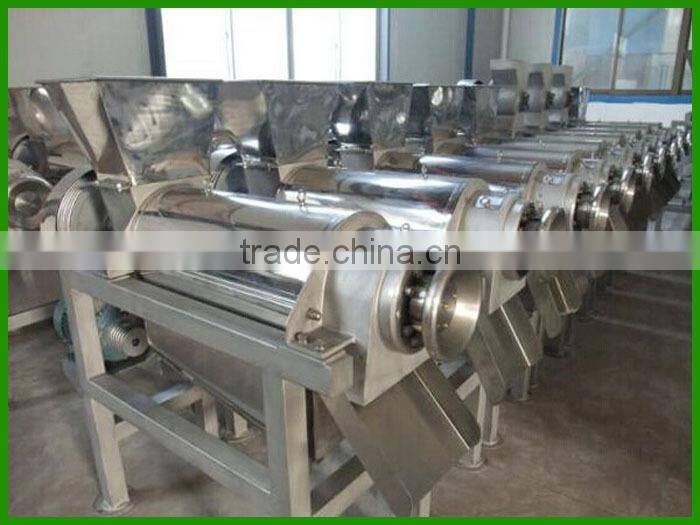

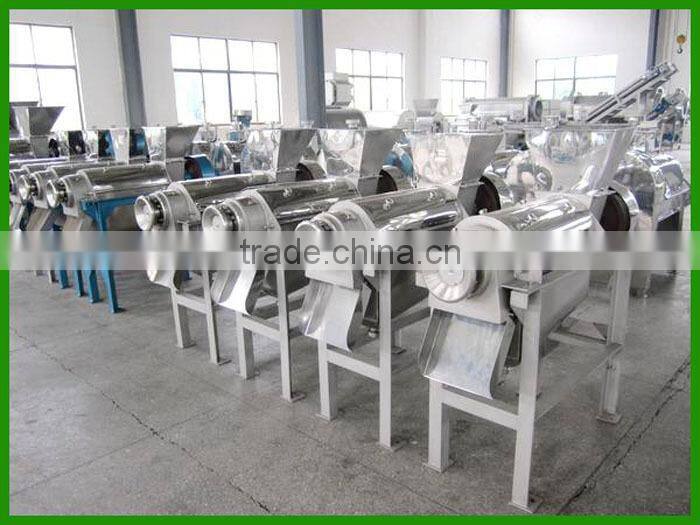

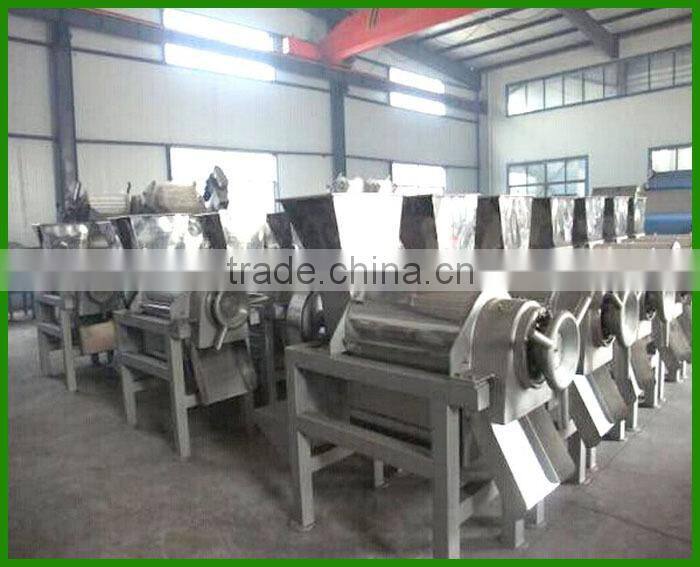

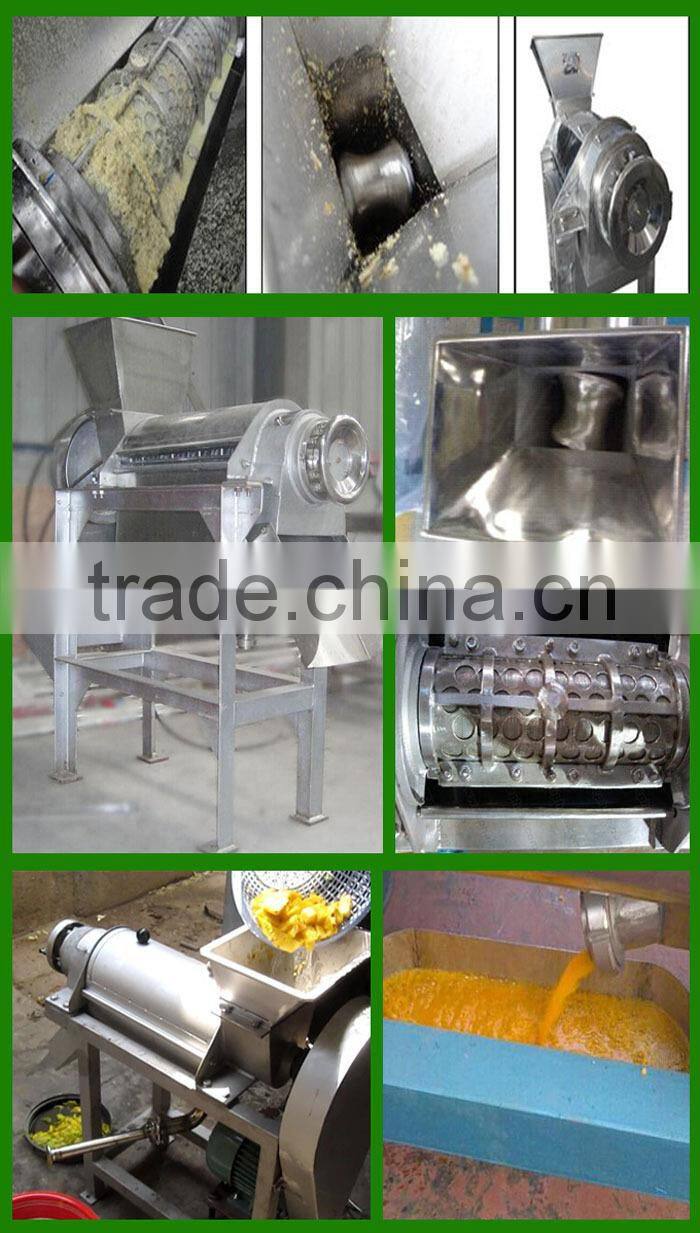

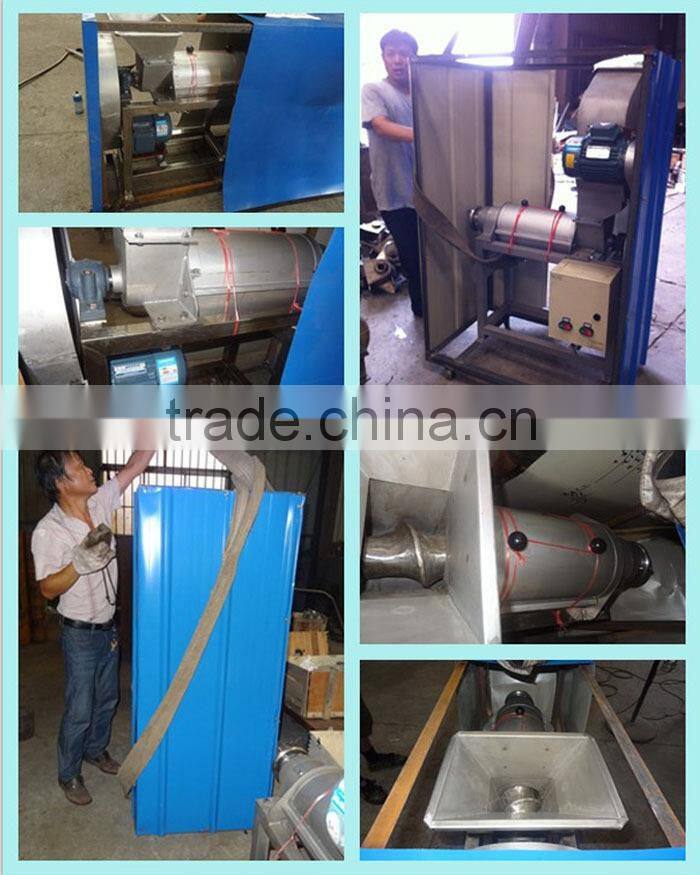

Detail Pictures of Multi Function Herb Juice Extractor Machine
Final Product of Multi Function Herb Juice Extractor Machine
Multi Function Herb Juice Extractor Machine
1. 24 hours online services, Guide you how to using the machines.
2. Engineers available to service machinery overseas.
3. Free trading and teaching your workers to operate machines.
Multi Function Herb Juice Extractor Machine
1. How to choose the most suitable for my machine?
2. If the machine some spare parts damaged, how to solve the problem?
3. Is your products customized?
