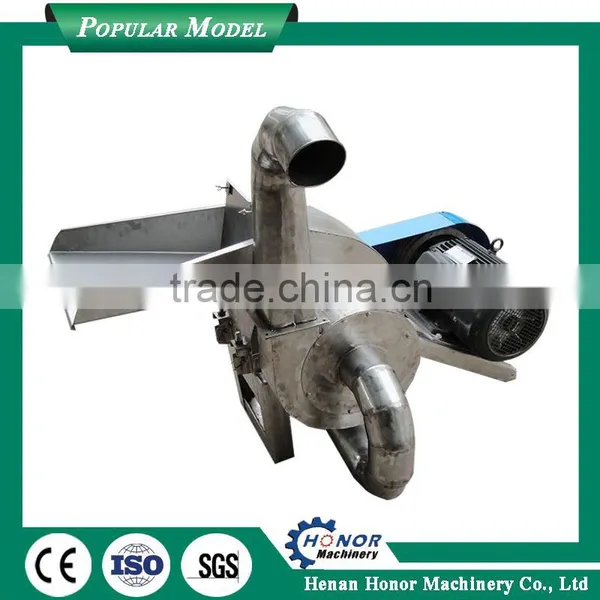

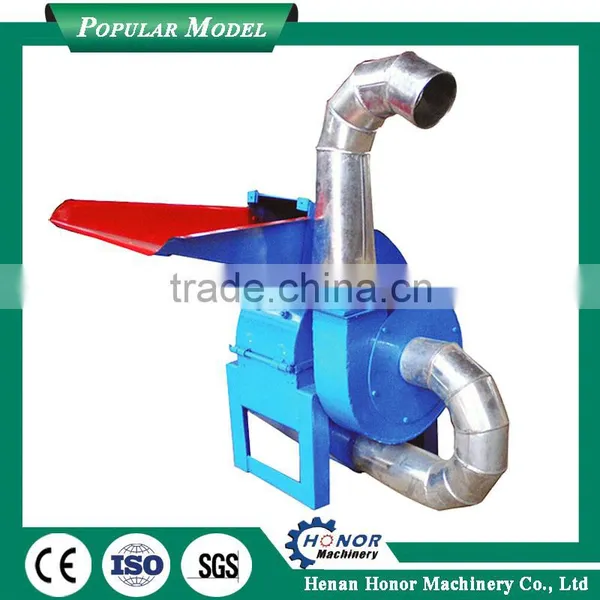

Small Wood Hammer Mill Poultry Feed Hammer Mill Wood Crusher Hammer Mill
The Brief Introduction Of Small Wood Hammer Mill Poultry Feed Hammer Mill Wood Crusher Hammer Mill
9FQ series hammer mill/animal feed crusher used to crush fresh/dry sweet potato, straw, husk, wheat, corn, beans and other grains. The main features of hummer mill are all up to national standard, with its simple structure, easy operation, high efficiency, low noise, and stainless steel structure. It is quite popular in China and all around the world.
The Specifications Of Small Wood Hammer Mill Poultry Feed Hammer Mill Wood Crusher Hammer Mill
Model |
9FQ-36 |
9FQ-40 |
9FQ-42 |
9FQ-50 |
|
Rotor Diameter(mm) |
360 |
400 |
420 |
500 |
|
Power |
Motor |
5.5-7.5KW |
7.5-11 |
11 |
22-30 |

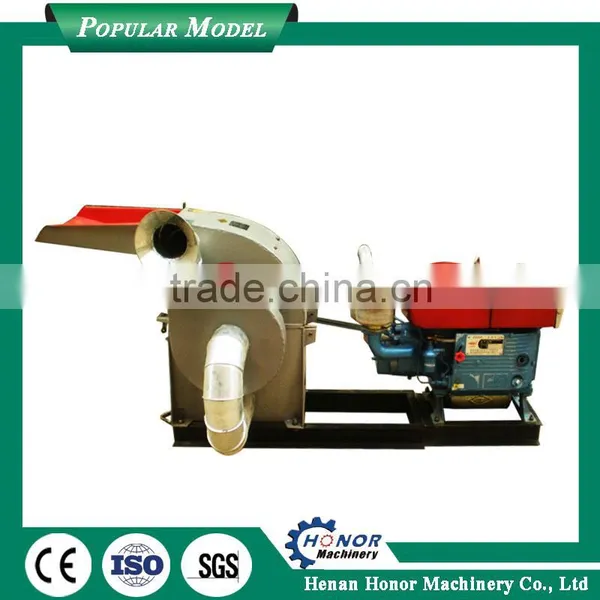

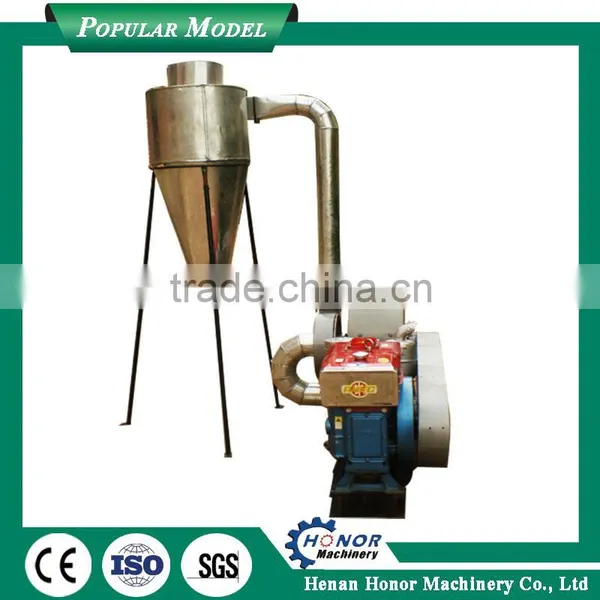

Diesel Engine |
10HP |
15HP |
16HP |
35-40HP |
|
Main Shaft Speed(r/min) |
4600 |
4000 |
3200 |
3400 |
|
Crushing Room Width(mm) |
202 |
202 |
280 |
400 |
|
Hammer Quantity |
12 |
12 |
16 |
24 |
|
Screen Size(mm) |
0.5-5 |
1.2-8 |
1.2-20 |
1.2-30 |
|
Weight without motor(kg) |
100 |
120 |
170 |
300 |
|
Dimension(mm) |
850*630*800 |
837*780*828 |
730*650*920 |
1150*1200*1090 |
|
Capacity(kg/h) |
500-650 |
800-900 |
1000-1200 |
2000-2500 |
|
Crush maize with 2mm screen. | |||||

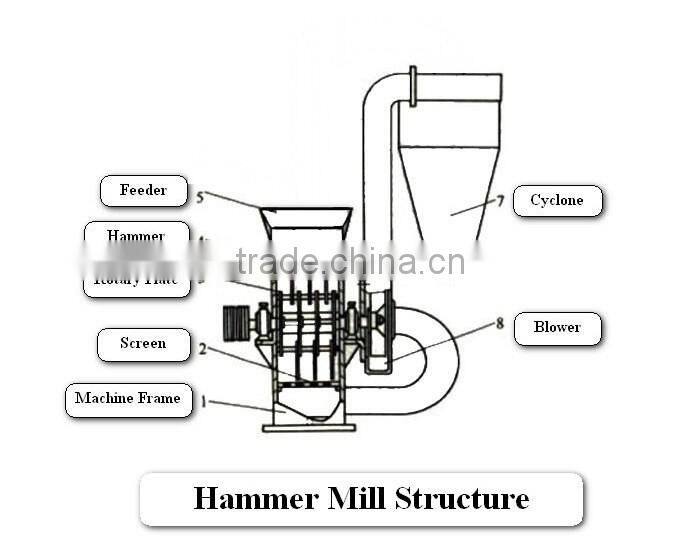

The Working Princples Of Small Wood Hammer Mill Poultry Feed Hammer Mill Wood Crusher Hammer Mill
When hammer mill/animal feed crusher work, the raw materials will be feed to crushing room through the feeder, under the impact/crash of high speed rotating hammers, the raw materials will be crushed rapidly, then go through the screen and be sucked to the outlet. The size of screen can be customized as requirements.

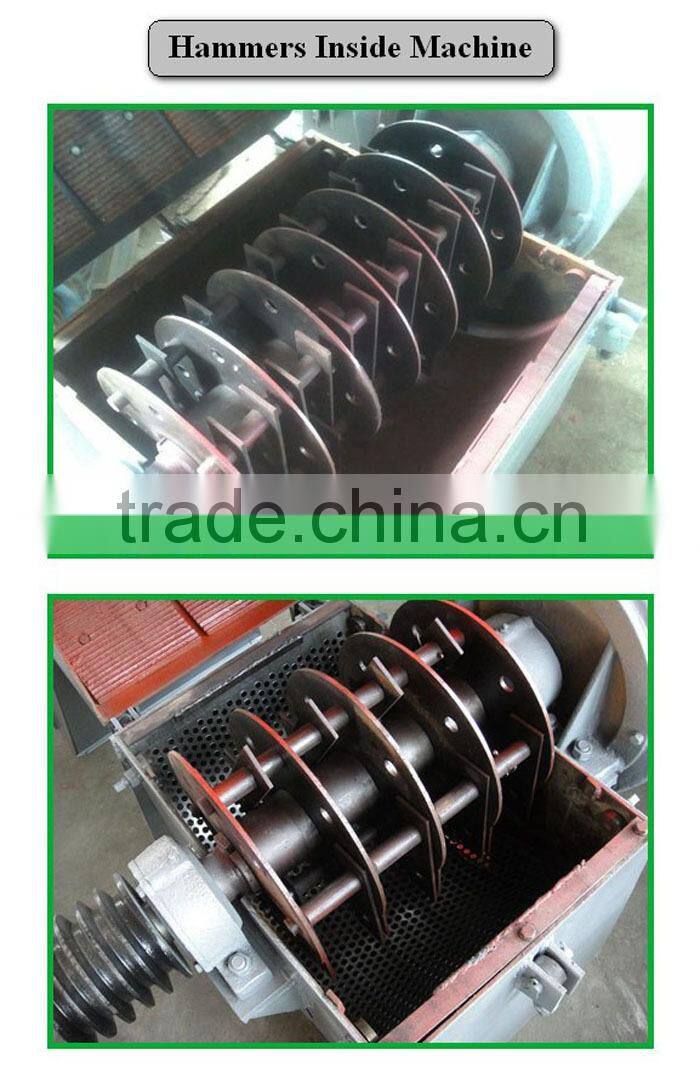

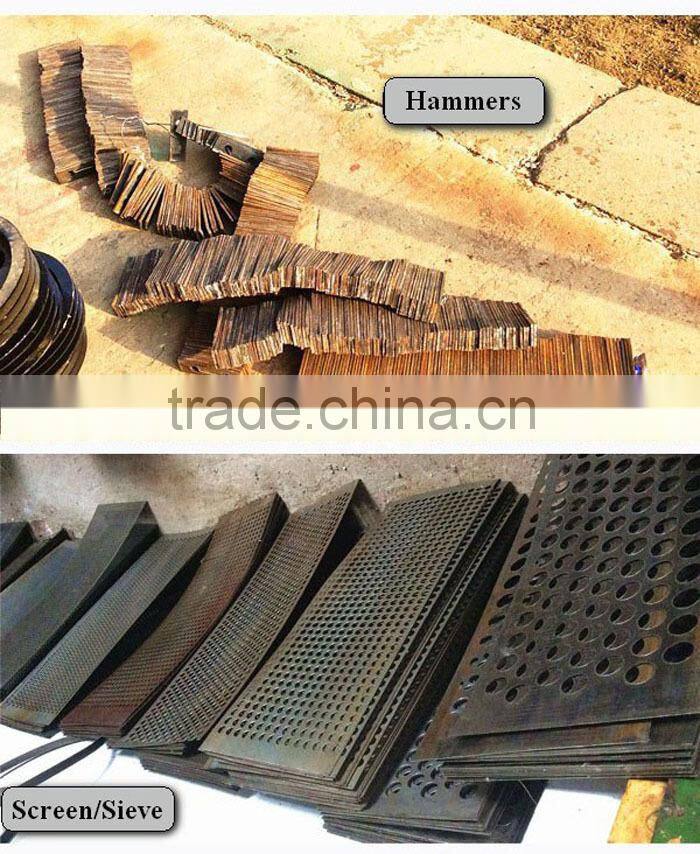

The Spare Parts Of Our Hammer Mill Machine

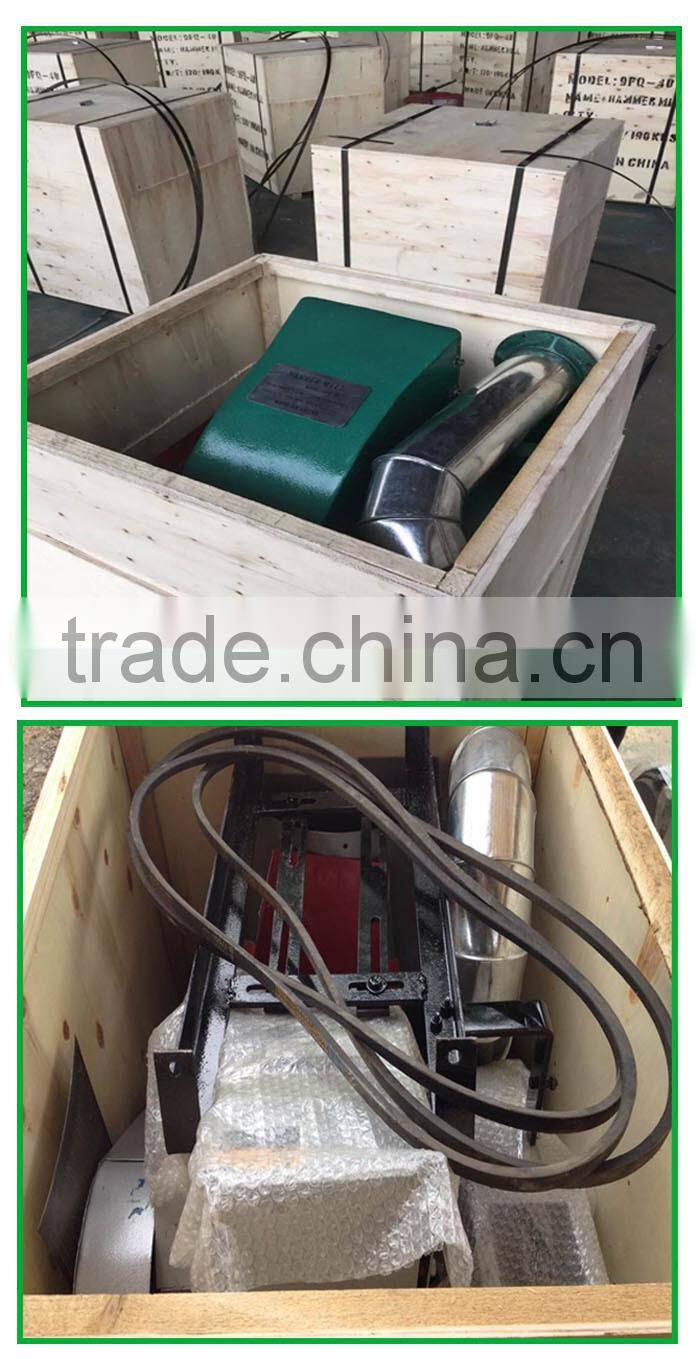

Fumigation Free Wooden Package Of Our Hammer Mill Machine
1. How does your factory do regarding quality control?
Our factory has gained CE, ISO9001, SGS authentication."Quality is priority”. We always pay great attentionon quality controlling from the beginning to the end.
2. Will you send engineers to install the equipments?
Yes, we can send our engineers do the guide installation overseas.
3.There are too many models ,I don't know how to choose.
Welcome to contact us through TradeManager,we will recommend according to your requirement. If during closing time or weekend,Please send mail to us,we will response within 24 hours.
4. Is your products customized?
Yes. We can customized machine according to your requirements.
