Specifications
Plastic door and windowCONCH 95 PVC profiles -sliding window plastic frame
1.Anti UV
2.Anti aging
CONCH 95 sliding window profiles features:
1. Excellent heat preservation performance
Plastic has heat conductivity factor, and has a heat insulation effect 1250 times better than aluminum material.
2. Good sound insulation performance
Its structure is designed very well, with tight joints. The test result indicates that its sound insulation is <20db and complies with DIDN4109.
3. Anti-aging
Imported denaturalizing agent is applied, and the agent for preventing UV rays absorption is added in the raw materials. The product does not discolor, and become aging or brittle even when it is exposed to direct sunlight, rainstorm, drying or humidity between -30°C and 70°C.
4. Good combustion-retarding performance
Plastic window is made of quality combustion-retarding material, and does not ignite itself or support combustion and can extinguish the fire by itself. So it is your ideal choice.
5. Resist impacts
Special impact-resisting design is applied, and the section material can bear cold impact test of 1kg hammer dropping freely from one meter height at-10°C.
6. Good waterproof performance
Its water absorption is <0.1%. The doors and windows are designed to have rainproof plates and water drain slots, and can completely isolate the rainwater outside of your room. Its waterproof performance complies with DIDN18055.
7. Good anti-theft
Plastic door and windows are provided with high-quality metal articles. Inside of windows will be fitted with glass strips according to the design so that thieves have no solutions.
8. Easy maintenance
Plastic sections are not corroded and do not discolor or get yellow. They are not affected by ash, cement or binding agents, so they almost need no maintenance.
9. Good air tightness
All the joints and gaps of the plastic windows are fitted with ternary sealing strips, and unit length of gaps can vent below 4m³mmhm. In the house equipped with cold and heating facilities, the plastic window can be fully jtilized as air-conditioners, and can save energy.
Conch 6095 series sliding window and door
The section of 6095 casement series
1. The visible panels’ thickness of frame and mullion is 2.5mm, according with national standard GB/T8814-2004 and industry standard JG/T140-2005.
2. Multicavity structure ensures the excellent heat insulation or preservation performance of conch 6095 series.
3. Be designed to fit single glass or double insulated glass according to different requirements of clients.
4. Possessing all functions of sliding window and incomparable apply in high-rise buildings, also being suitable for making big window or door.
5. The section of profile has standardized design; accessories are standard in favor of assembling and manufacting.
The features of 6095 casement series
1. The design of conch 6095 series is reasonable; both design value and actual value of strength of fillet meets standard requirements; the lapping amount between glass and profile is also standard.
2. By measuring, 6095 series window has obvious wind resistance performance.
3. 6095 series window is designed with complete drainage channel which provides the water tightness.
Window Model:
Percentage of outturn:
95 sliding window | ||||||
Name |
Code |
Baiting size (mm) |
Piece |
Length(m) |
Kg/m |
Total Weight(Kg) |
Frame |
HF95NC |
1476 |
2 |
5.904 |
1.684 |
9.9423 |
1476 |
2 |
|||||
Sash |
SF66NC |
722 |
4 |
8.376 |
1.026 |
8.5938 |
1372 |
4 |
|||||
Double glass bead |
GB10NC |
616 |
4 |
7.528 |
0.143 |
1.0765 |
1266 |
4 |
|||||
Inner lock |
IL36NC |
1366 |
2 |
2.732 |
0.233 |
0.6366 |
Screen sash |
MF50NC |
706 |
2 |
4.156 |
0.643 |
2.6723 |
1372 |
2 |
|||||
KG/pc window |
22.9215 |
|||||
Percentage of outturn |
98.16m2/T |
|||||

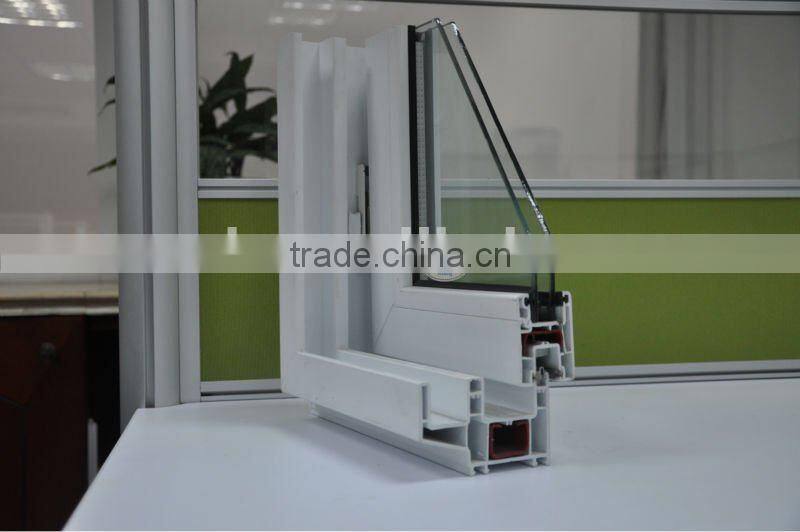

Real product photo show:
|
|
Factory show:
|
|
|
Extrusion Line:
|
|
Testing Equipment:
|
|
|
|
|
|
|
|
