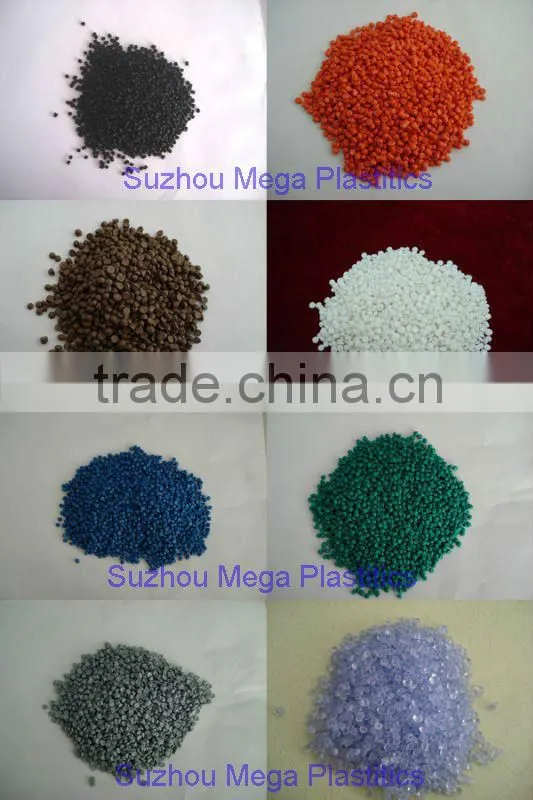

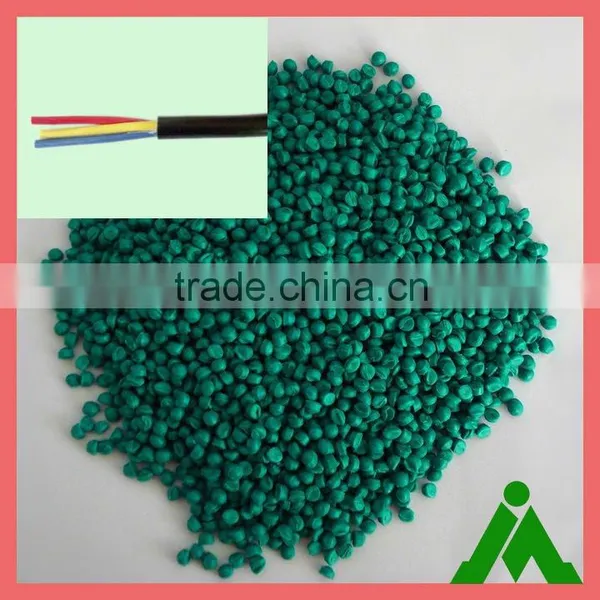

Extrusion Various Colors PVC

Name: Extrusion Various Colors PVC
Brand: Mega
SKU: 109525307
Availability: InStock

US$ 1,000 - 3,000 MOQ: 3 Tons

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Mega

Model Number:

MG-VDE-TI 1

Suzhou Mega Plastics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name Mega

Model Number MG-VDE-TI 1

Specifications

1. Eco-friendly
2. VDE approval
3. For extrusion cable insulation
4. Customized formulation
5. For 10 years experience

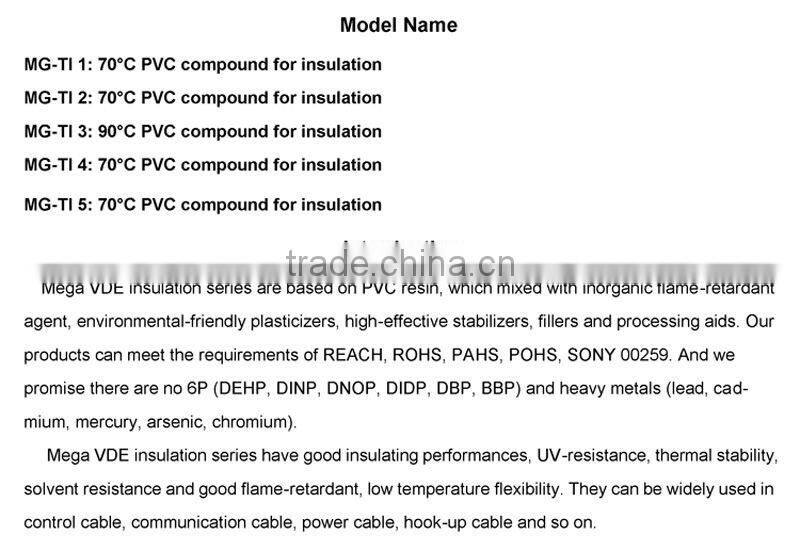

Technical data sheet

Test Items		Unit	Technical Requirements
Test Items		Unit	TI 1	TI 2	TI 3	TI 4	TI 5
Tensile strength		MPa	12.5	10.0	15.0	12.5	10.0
Elongation at break		%	125	150	150	125	150
Oven aging condition		°C·h	80×168	80×168	135×336	80×168	80×168
Tensile strength after aging		MPa	12.5	10.0	15.0	12.5	10.0
Elongation after aging		%	125	150	150	125	150
Variable rate of tensile strength		%	≤20	≤20	≤25	≤20	≤20
Variable rate of elongation		%	≤20	≤20	≤25	≤20	≤20
Weight loss	Condition	°C·h	80×168	115×336	80×168	80×168	80×168
Weight loss	Weight loss	mg/cm²	≤2.0	≤2.0	≤1.5	≤2.0	≤2.0
Low temperature brittleness		°C	-15	-15	-	-40	-30
20°C Volume resistivity		Ω·m	≥1.0x10¹¹	≥1.0x10¹¹	≥1.0x10¹¹	≥1.0x10¹¹	≥1.0x10¹¹
Dielectric strength		MV/m	≥25	≥25	≥25	≥25	≥25
200°C Thermal stable time		min	-	-	240	-	-
