CONCH 83 sliding window profiles features:
1. Excellent heat preservation performance
Plastic has heat conductivity factor, and has a heat insulation effect 1250 times better than aluminum material.
2. Good sound insulation performance
Its structure is designed very well, with tight joints. The test result indicates that its sound insulation is <20db and complies with DIDN4109.
3. Anti-aging
Imported denaturalizing agent is applied, and the agent for preventing UV rays absorption is added in the raw materials. The product does not discolor, and become aging or brittle even when it is exposed to direct sunlight, rainstorm, drying or humidity between -30°C and 70°C.
4. Good combustion-retarding performance
Plastic window is made of quality combustion-retarding material, and does not ignite itself or support combustion and can extinguish the fire by itself. So it is your ideal choice.
5. Resist impacts
Special impact-resisting design is applied, and the section material can bear cold impact test of 1kg hammer dropping freely from one meter height at-10°C.
6. Good waterproof performance
Its water absorption is <0.1%. The doors and windows are designed to have rainproof plates and water drain slots, and can completely isolate the rainwater outside of your room. Its waterproof performance complies with DIDN18055.
7. Good anti-theft
Plastic door and windows are provided with high-quality metal articles. Inside of windows will be fitted with glass strips according to the design so that thieves have no solutions.
8. Easy maintenance
Plastic sections are not corroded and do not discolor or get yellow. They are not affected by ash, cement or binding agents, so they almost need no maintenance.
9. Good air tightness
All the joints and gaps of the plastic windows are fitted with ternary sealing strips, and unit length of gaps can vent below 4m³mmhm. In the house equipped with cold and heating facilities, the plastic window can be fully jtilized as air-conditioners, and can save energy.

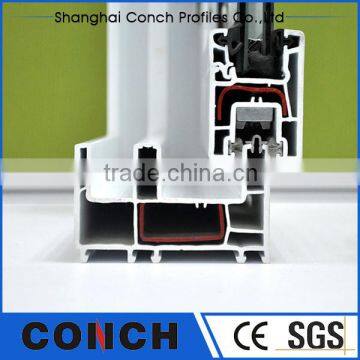

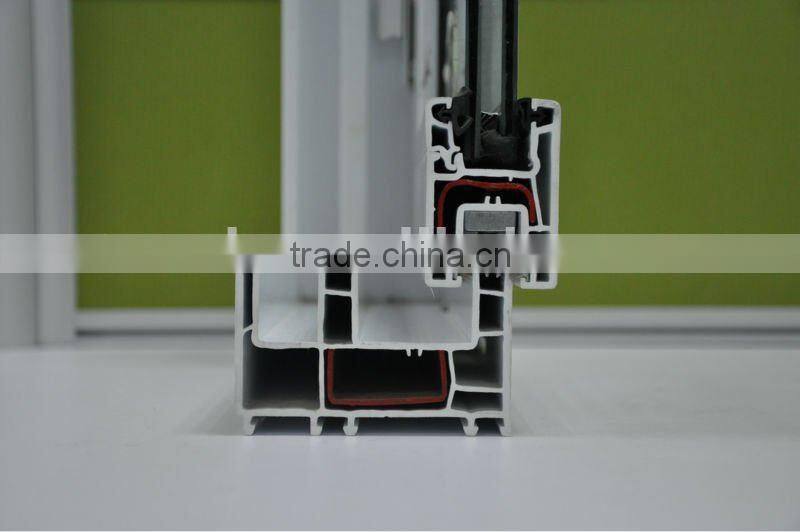

The section of 83 series
1The visible panels’ thickness of frame and mullion is 2.3mm, according with national standard GB/T8814-2004 and industrial standard JG/T140-2005.
2,Multicavity structure ensures the excellent heat insulation or preservation performance of conch 83 series.
3,Be designed to fit single glass or double insulated glass according to different requirements of clients.
4,Can be installed standard aluminum sliding rail to open window easier; improves the airtightness with more sealing points.
5,The section of profile has standardized design; accessories are standard in favor of assembling and manufacting.
6,The outturn percentage shares the same percentage of conch 80 series with the same thickness,maximizes the economic benefits while ensuring the functional performance of the doors and windows at the same time.

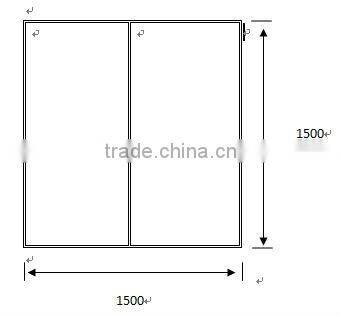

Window Model:
Percentage of outturn:
83 sliding window | ||||||
Name |
Code |
Baiting size (mm) |
Piece |
Length(m) |
Kg/m |
Total Weight(Kg) |
Frame |
HF83NC |
1476 |
2 |
5.904 |
1.295 |
7.6457 |
1476 |
2 |
|||||
Sash |
SF56-39NC |
725 |
4 |
8.452 |
0.81 |
6.8461 |
1388 |
4 |
|||||
Double glass bead |
GB8NC |
639 |
4 |
7.764 |
0.126 |
0.9783 |
1302 |
4 |
|||||
413 |
2 |
|||||
Inner lock |
IL39NC |
1382 |
2 |
2.764 |
0.204 |
0.5639 |
Screen sash |
MF41NC |
710 |
2 |
4.196 |
0.413 |
1.7329 |
1388 |
2 |
|||||
KG/pc window |
17.7669 |
|||||
Percentage of outturn |
126.64m2/T |
|||||

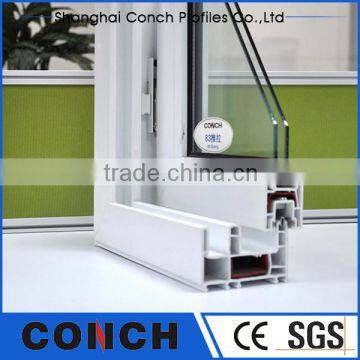

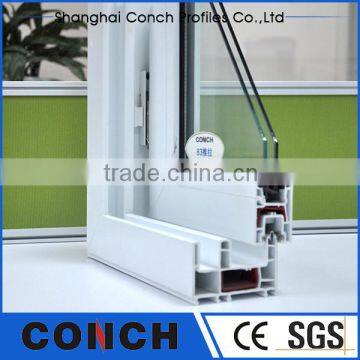

Real product photo show :
|
|
Factory show:
|
|
|
Extrusion Line:
|
|
Testing Equipment:
|
|
|
|
|
|
|
|
