Specifications
1 Environmental friendly2 Good low temperature flexibility
3 Insulation resistance-flame perfectly
4 various color

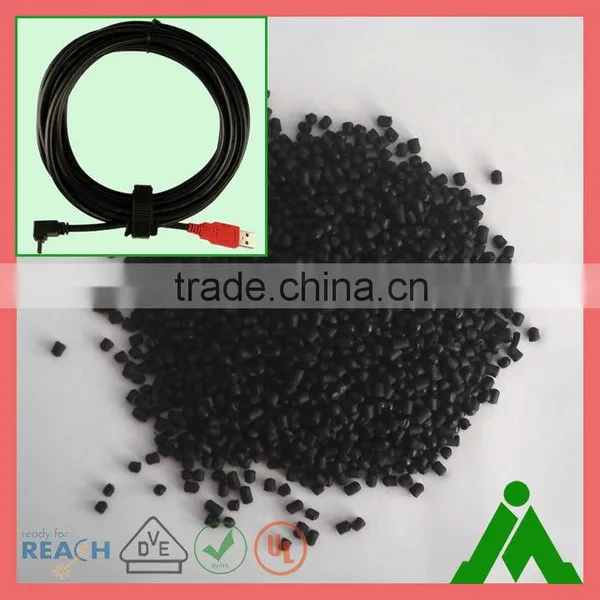

We offer a wide range of PVC compounds for wires & cables, which is manufactured by using high grade raw material.
PVC granule has fast wire outletting speed and smooth appearance.Users' production efficiency can be highly improved .
| Raw PVC granules for China Car wire/cable standard | ||||||
| Test Items | Unit | Typical Value | Reference standard | |||
| M-CV-5051 | M-CV-5052 | M-CV-5053 | M-CV-5054 | |||
| Tensile strength | MPa | ≥16 | ≥16 | ≥16 | ≥16 | GB/T8815-2008 |
| Elongation at break | % | ≥150 | ≥150 | ≥150 | ≥150 | GB/T8815-2008 |
| low temperature brittleness | °C | -20 | -20 | -20 | -20 | GB/T5470-1985 |
| 200°CThermal stabilization time | min | ≥120 | ≥120 | ≥80 | ≥80 | GB/T8815-2008 |
| 20°C Volume resistivity | Ω·cm | ≥1*1012 | ≥1*1012 | ≥1*1012 | ≥1*1012 | GB/T8815-2008 |
| Dielectric strength | MV/m | ≥20 | ≥20 | ≥20 | ≥20 | GB/T8815-2008 |
| Aging temperature | °C | 136±2 | 136±2 | 100±2 | 100±2 | GB/T8815-2018 |
| Aging time | hrs | 168 | 168 | 168 | 168 | GB/T8815-2018 |
| Tensile strength after aging | % | ±20 | ±20 | ±20 | ±20 | GB/T8815-2018 |
| Elongation after aging | % | ±20 | ±20 | ±20 | ±20 | GB/T8815-2018 |
| Thermal shock | Pass | Pass | Pass | Pass | GB/T25085-2010 | |
| Hardness | SA | 90±2 | 82±2 | 90±2 | 82±2 | GB/T8815-2018 |
| Heat distortion | % | ≤40 | ≤40 | ≤40 | ≤40 | GB/T8815-2018 |
| Abrasion strength | % | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | GB/T3960 |
1.About us
In 2001,we began to develop the environmental conscientious polymer compound for our cable and wire customers.Now we are accepted as a lead manufacturer of flexible vinyl compound and LSHF compound in China mainland market.We formulate more than 20,000 tons Rosh complaisant compund each year for demostics and oversea market.
2.Products application
Apart from being widely used in the cable and wire industry, Mega polymer compounds have a variety of other applications in the market, such as automotive, tool handle, toys, medical tubing, and other industrial and residential applications.
For each application, our engineers from Mega will design particular formulation and process to meet each requirement of the compound including hardness, color and cost.
3.Expertis
Vinyl resin is an extremely versatile thermoplastic polymer suitable for a wide range of applications. Vinyl resin attains its usefulness through various additives that allow it to be used in a multitude of markets and products – everything from automotive parts to medical tubing, from building and construction to children's toys. Vinyl is very durable, relatively cost efficient and meets stringent regulations and requirements mandated by many industries
4.Laboratory
Mega highskilled staff and wellequipped laboratory ensure the compound be tested both on design stage and process spot , so that to keep the products consistently meet each customer's unique requirements. Now we can undergo such testing items: tensile strength, elongation, gravity, air oven aging, pad volume resistivity , heat stability, flame-retardant (Oxygen Index), melt flow analysis, air oven aging, color meter, water resistance, oil resistance. Mega also uses atomic absorption spectrometry (AA) and X-Ray spectrometry to analyze environmental sensitive elements of raw material , so as to ensure they are RoSH compliant.
5.Industry Listings and Certifications:
Product Safety: UL, CSA, VDE & CCC
Quality Management System: ISO9001-2004
Environment Management: ISO14001-2004
6.Remark
If you want to get more information about the products or establish business relationship with us, please feel free to contact us.
Tel: 86-512-65275752 / 86-Fax: 86-512-65277403 Mobile:+86+13404235070
Homepage:
7.Green compliancy
Mega is extremely conscientious about providing customers with accurate information about our products and processes relating to environmental compliancy and established industry specifications and standards. We are pride on working with each customer to address their specific product and market needs. We will remain committed to finding new ways to formulate traditional and new compounds with minimal or no defined hazardous ingredients, as well as offer more eco-friendly alternatives whenever possible.
8.Photo Show:Mega office
♦Mega workshop
♦ Variety Colours
♦Mega Laboratory
♦Mega Certifications
