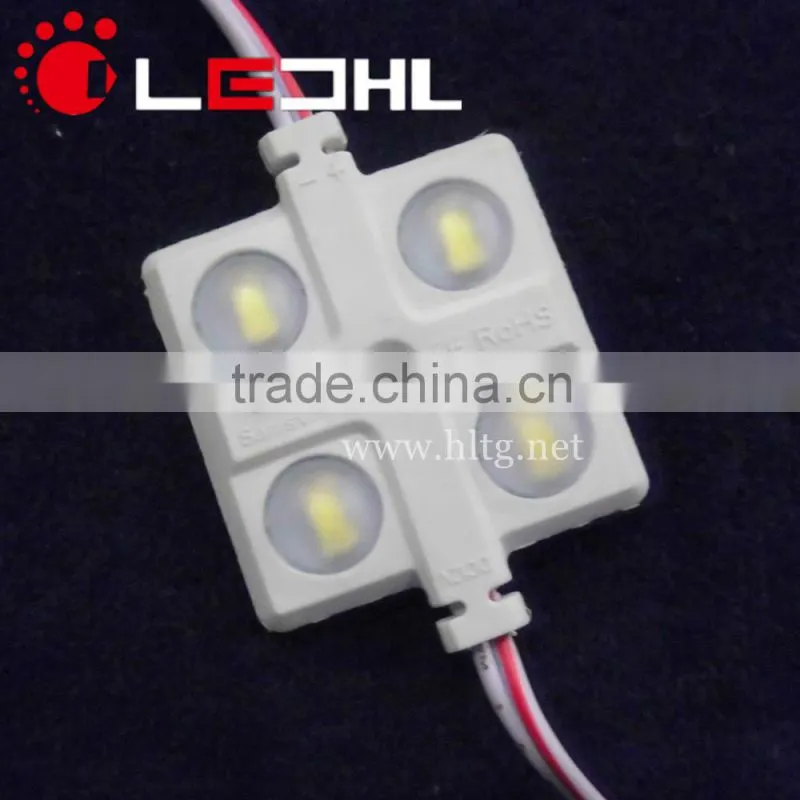

Help CenterSamsung 4LEDs Module DC12V 2W SMD5730 200lm for Backlight Channel Letter (HL-MC16S)
Related Products
-
Nice Appearance LED Module Samsung 1.5W SMD5630 / SMD5730 (HL-MC15S)US$ 0.24 - 0.24MOQ: 2000 Pieces -
Cheap LED Module, DC12V 1.5W Samsung 5730 LED Module for Channel LetterUS$ 0.19 - 0.19MOQ: 2000 Pieces
-
Good Quality Cool White 10000-12000K Samsung LED Module SMD5730 0.72W IP65 Module LED Quality ChoiceUS$ 0.10 - 0.10MOQ: 2000 Pieces
-
3pcs LED Module Samsung Series SMD5730/SMD5630 LED Module for Channel Letter Quality ChoiceUS$ 0.22 - 0.22MOQ: 2000 Pieces
-
Samsung Series LED Module 1W 2pcs SMD5730 160 Degree Led Module Light 12V DC for Adversiting Quality ChoiceUS$ 0.20 - 0.20MOQ: 1000 Pieces
Product Introduction
(1) 0.5W/LED
(2) Use Samsung SMD5730 high power chipset
(3) Warm white: 3000-3200K White: 6000-6500K Cool White: 10000-12000K, Red, Yellow, Blue, Green all available for this type
(4) Consumption: 2.0W
(5) DC12V input
(6) IP level: IP65
(7) 20pcs as a series
(8) Working temperature : -20~50 degree
(9) Packing : 100pcs / bag , 10bags / Carton
(10) Color: Warm white, White, Cool White, Red, Yellow, Blue, Green supported
(11) Offer ODM service and also the high brightness customrized strip for the project
(12) Easy installation : self adhersive
(13) Extended life : more than 30,000 hours
(14) Evironmental friendly : with CE / RoHS certificate, more than 60% more energy efficient than Neon
(15) Safe application : Low voltage DC12V, safe and stable, free maitenance
Product Specification
| Model | HL-MC16S | ||||||
| LED Type | 4LEDs Samsung SMD5730 | ||||||
| Warranty (years) |
3 | ||||||
| Emitting Color | 10000-12000K | ||||||
| Beam Angle (°) | 160° with lens | ||||||
| Lumen(LM) | Red | Green | Blue | Yellow | WW | NW | CW |
| / | / | / | / | 160 | 180 | 200 | |
| Wave Length (nm/Kelvin) | 620-625nm | 520-530nm | 465-470nm | 585-595nm | 3000-3200K | 6000-6500K | 10000-12000K |
| Chip Qty (chips) | 4 | ||||||
| LED Chip Life (H) | 50,000 | ||||||
|
Electrical Parameter |
Working Input Voltage (V) | DC12V | |||||
| LED Power (W) | 2.0W | ||||||
| Working Input Current (mA) | 167mA | ||||||
| Drive Mode | Constant Voltage | ||||||
| Features of Connection and Series | Interface: 1007 20AWG; Externl diameter: 1.8*100mm combined wire of white & red color | ||||||
| Standard quantity of a series | 20 pcs | ||||||
| Max quantity of a series | 20 pcs | ||||||
| Physical Parameter | Diamension | 36*36*10mm | |||||
| Housing Color | White | ||||||
| Housing Material | ABS ABS & epoxy resin Injection | ||||||
| Affixing way | FB1610PE 3M double-sided adhersive tape & 4 screws or rivets with diameter of 3.0-4.0 mm | ||||||
| Weight | 12g | ||||||
| Enviromental Parameter | Working Temperature | -40°F- 122°F (-40°-50° C) | |||||
| Storage Temperature | -58°F- 140°F (-50°-60° C) | ||||||
| Operating Humidity | 10% - 95%, non-condensing | ||||||
| IP Rate | IP65 waterproof | ||||||
| Packing | Qty/ctn | 20pcs/bag,1000pcs/ctn | |||||
| Ctn Size | 50x25x27cm | ||||||
| G.W./Ctn | 12.38KG | ||||||
| CBM/Ctn | 0.04m3 |
||||||

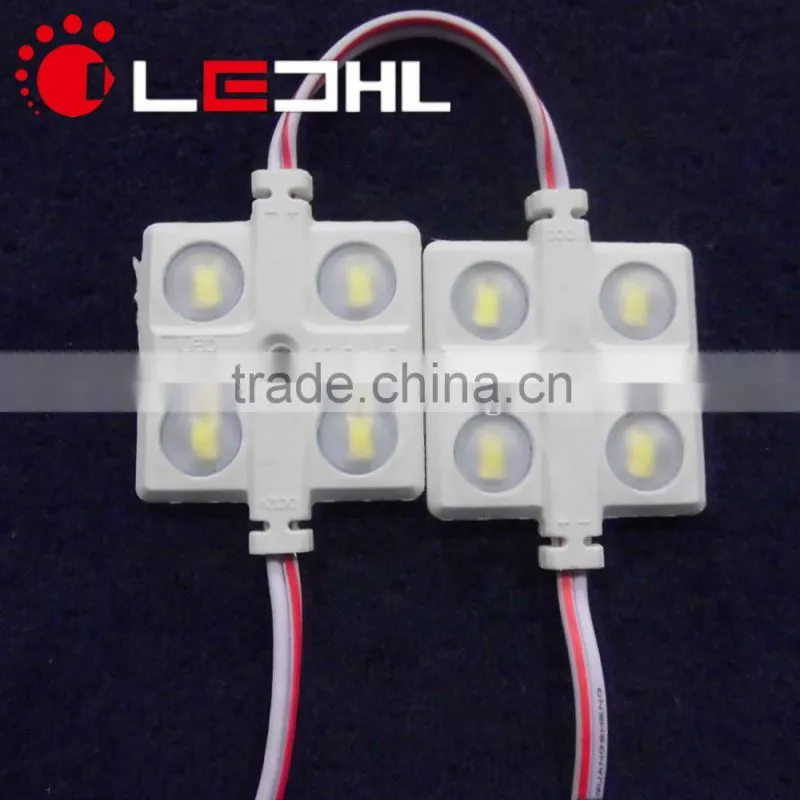

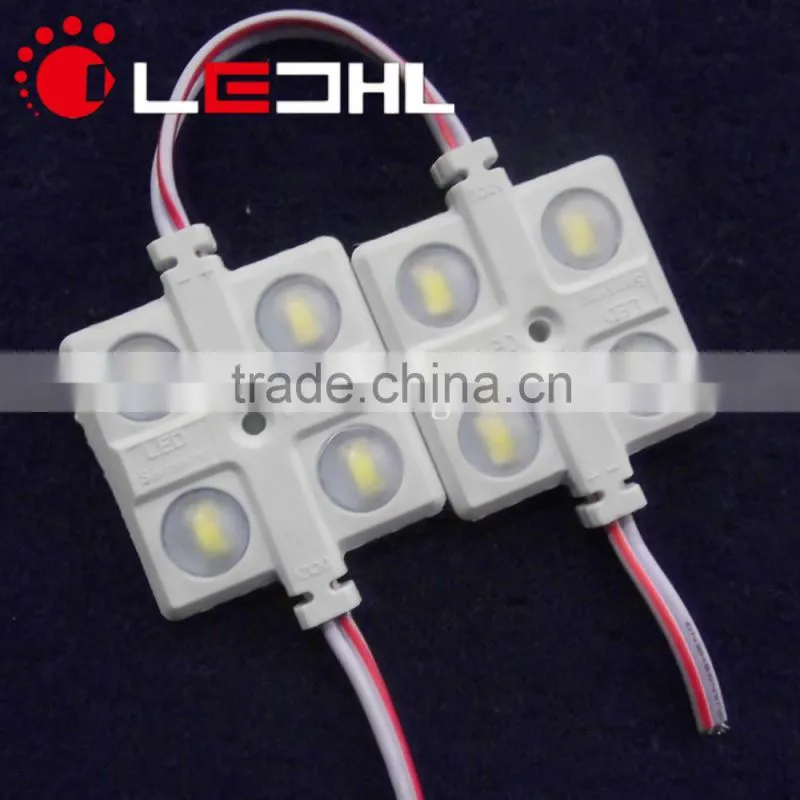

Product Details
Certification:
Application Project:
1 Channel letter
2 Advertisements sign
3 KTV,Disco
4 LOGO, advertising billboard,exposed luminous characters
5 LED display screen
