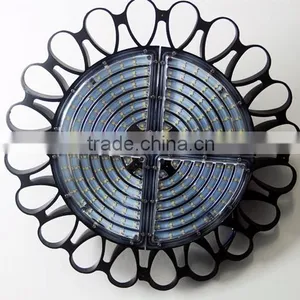

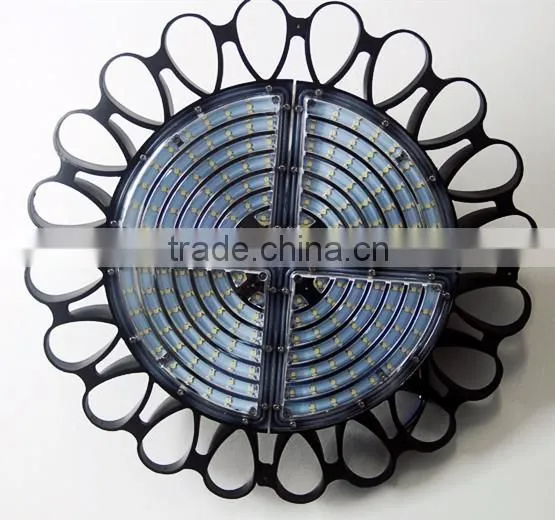

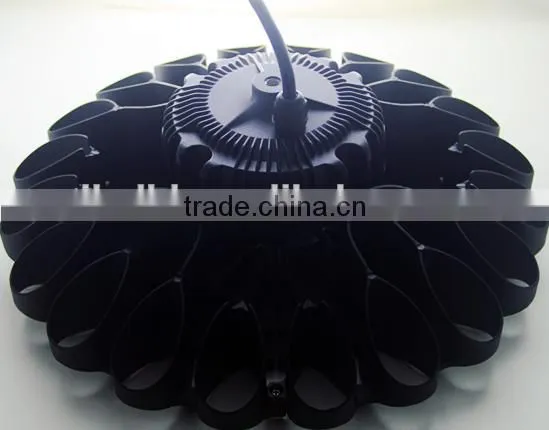

5 year warranty CE RoHS IP65 Nice UFO LED high bay Light Quality Choice

Photometric Specifications:

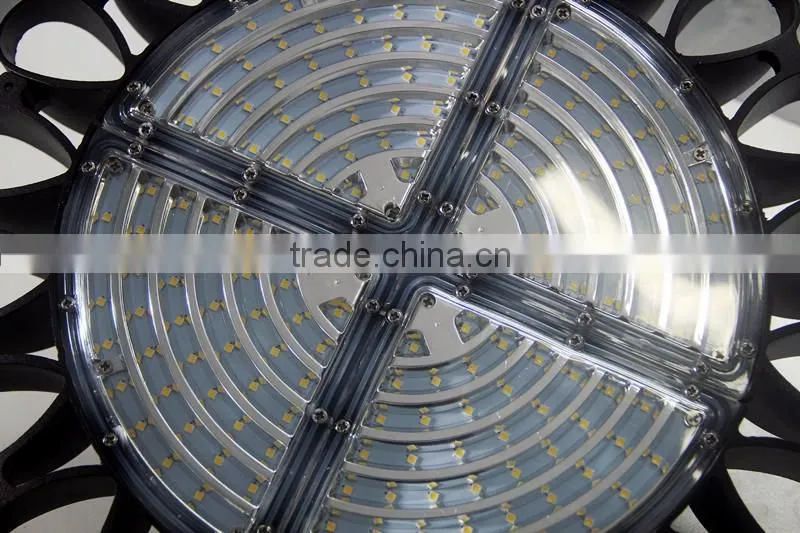

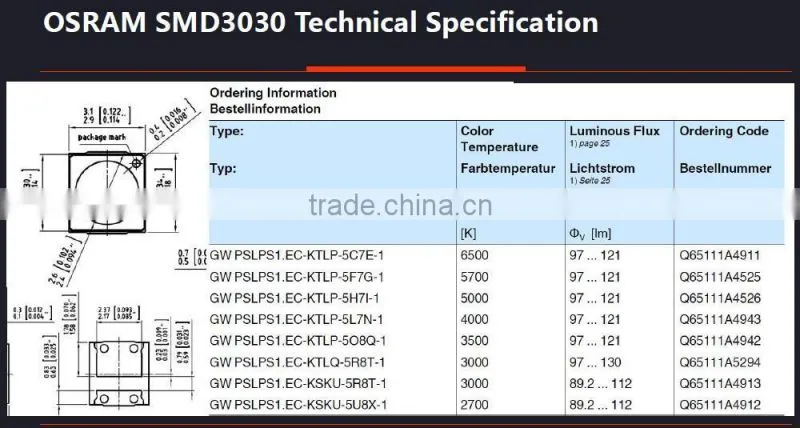

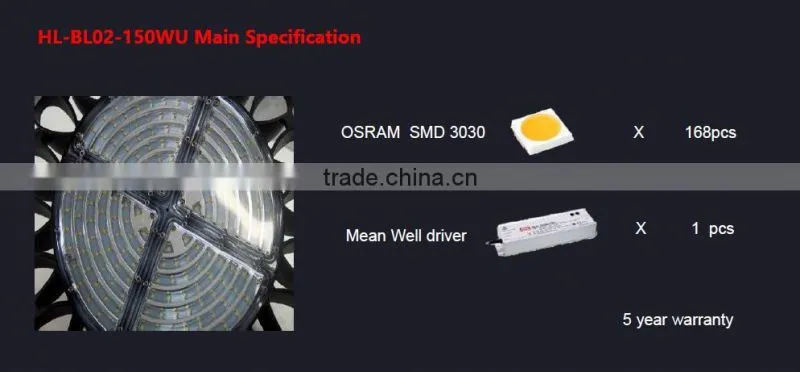

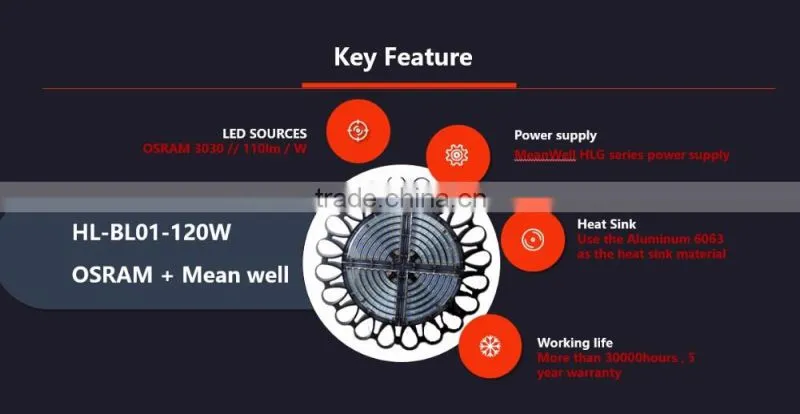

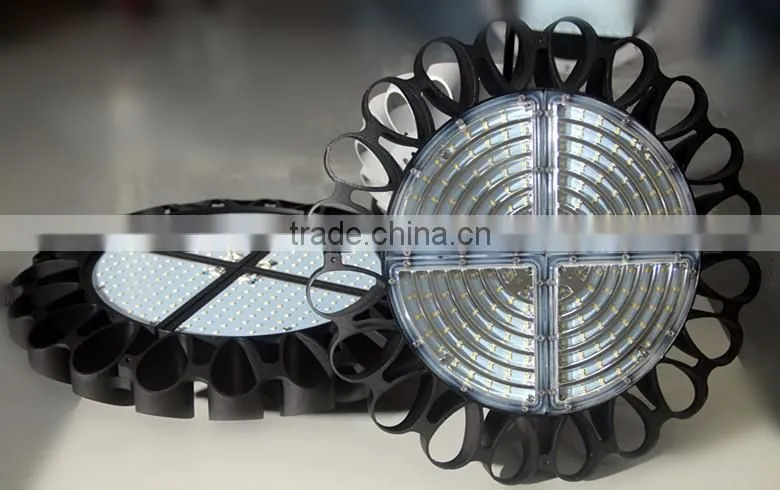

LED sources : OSRAM 3030 *168pcs

LED Luminous flux : 120lm/W

                                      CW  18000lm

                                      WW  16500lm

CRI :> 80

CCT : CW 6500K  / WW 3000K

Mechanical Specification

IP Rating : Ip65

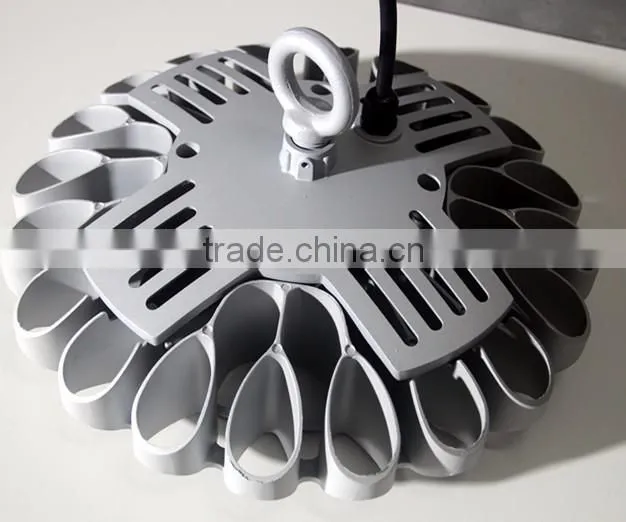

Heat Radiator : Aluminum 6063 dia-cast

Face : 160° or 60°reflector
            Clear PC cover or Milky cover

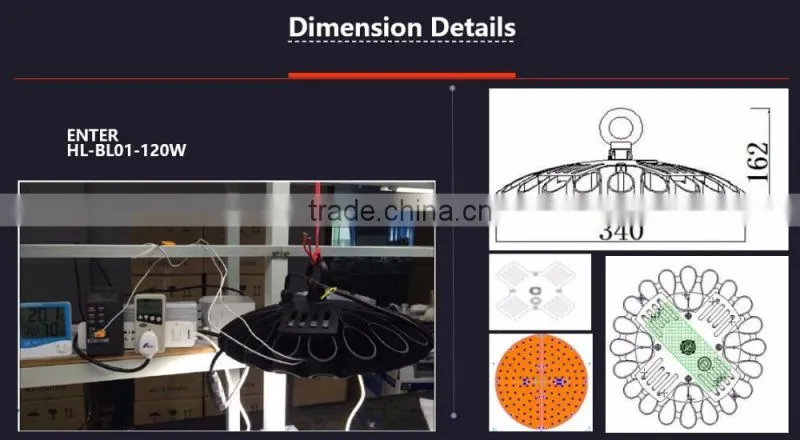

Fixture Dimension : 340*162 mm

Fixture weight : 3.2 KG

Electrical Specification

LED power : 150 W

Lamp's real power : 153 W

Operating Voltage : AC85-2605V

Operating Temperature : -20 ~50 ℃

Operating Humidity : 10% - 90%

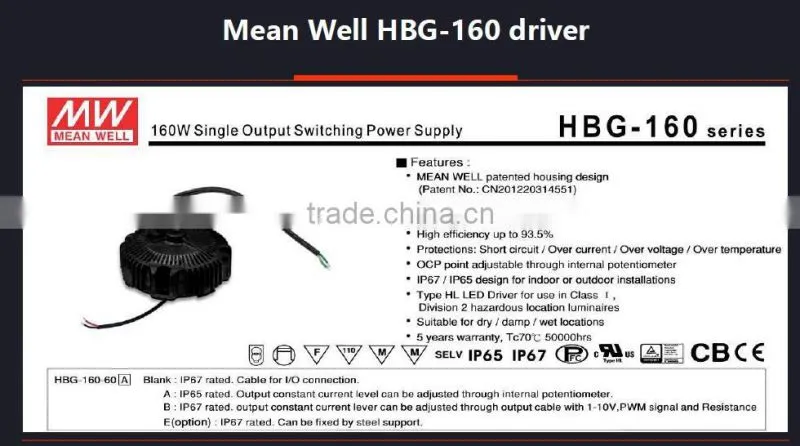

Power Supply : MW HLG *1pc

Mean Well power factor : 0.98

Power supply Efficiency : >95%

Packing Information

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
