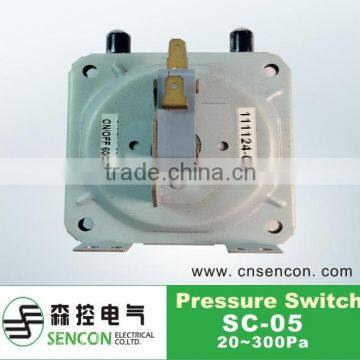

SC-10 Differential Pressure Switch,Low Pressure Switch,air Sensing Switch
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
CNSENCON
Model Number:
SC-10
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SC-08L LED Differential Pressure SwitchNegotiableMOQ: 100 Pieces -
HVAC ,Clean Room,air Condition Differential Pressure TransducerUS$ 65 - 100MOQ: 100 Pieces
-

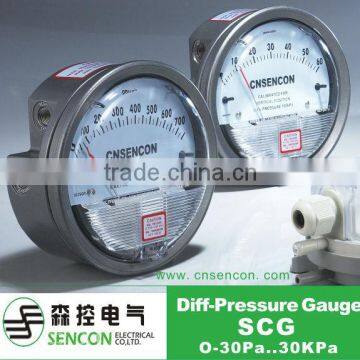

SCG High Quality Low Air Gauge, Differential Pressure Gauge ,Dwyer Differential Pressure Gauge,US$ 20 - 30MOQ: 100 Pieces
-
SCG Low Air Differential Pressure Gauge,Magnehelica Differential Pressure GaugeUS$ 20 - 30MOQ: 100 Pieces
-
Differential Pressure Switch ,air-sensing Switch SC-08NegotiableMOQ: 1 Piece
Place of Origin
China
Brand Name
CNSENCON
Model Number
SC-10
Max. Current
1.5A
Max. Voltage
220VAC
Max. Working Pressure
10KPa
SC-10 series differential pressure switches can sense the pressure difference , vacuum, over pressure, poor flow of the incorrosive gas.
Conventional applications include :
+ Monitoring Filters blocked Alarm Device
+ Monitoring air blower running status.
+ Monitoring air of ventilative pipelines
+ Controlling the largest gas flow of variable gas volume
+ Monitoring the gas of combustion furnace.
Product parameters:
Measuring range: 20Pa~200Pa
Max.differential pressure: 12000Pa
Degree of protection: IP54
Electrical rating value: <2A / 250VAC
Working temperature:-15~+60
Storage temperature: -40~85
Min. actuating pressure: standard: 20Pa;min.starting
----------------------------------- interval:10Pa(range: 20~30Pa)
Linearity: range 50~500Pa <±3Pa
Installation direction: vertical(standard installation style)
Hose connection: pipeΦ6.2mm
Weight: 100 grams without bracket
Repeatability: <±0.025mbarIn the ranges 0.2 to 2mbar
Installation:
Location: select a location where vibrations are minimal .Ambient temperature should be within the range of -15 / +60.The production calibration of the SC10 is made at room temperature ; mounting locations close to room temperatures are preferred . In systems with high humidity where condensation is possible, thus the entrance should point downwards.
Location: select a location where vibrations are minimal .Ambient temperature should be within the range of -15 / +60.The production calibration of the SC10 is made at room temperature ; mounting locations close to room temperatures are preferred . In systems with high humidity where condensation is possible, thus the entrance should point downwards.
Pressure connection and wiring:
Pressure connections are marked with P1⊕&P2Θ,incorrect connections are forbidden.
Pressure connections are marked with P1⊕&P2Θ,incorrect connections are forbidden.
Mounting instruction:
The switch is preferably mounted with the diaphragm in a vertical plane , unless the device is set or calibrated for horizontal mounting as on special customer models. On these models the mountingposition is indicated on the side of the control .It may be fastened directly to the duct,heater or panel as long as the mounting surface has minimal or no vibration .Pressure connections are marked +(high pressure ) and - (low or static pressure) .For more informaton, please read the diagram on the side of the control.
The switch is preferably mounted with the diaphragm in a vertical plane , unless the device is set or calibrated for horizontal mounting as on special customer models. On these models the mountingposition is indicated on the side of the control .It may be fastened directly to the duct,heater or panel as long as the mounting surface has minimal or no vibration .Pressure connections are marked +(high pressure ) and - (low or static pressure) .For more informaton, please read the diagram on the side of the control.
Note:
To drill a hole through the plastic tube or pipe before installation, and also mount part of L-bracket on the spot(Standard setting).
To drill a hole through the plastic tube or pipe before installation, and also mount part of L-bracket on the spot(Standard setting).
Accessory consists of:
(Φ6.2mm1.8m) plastic tubes,
1 L-bracket, 3srews, 2 pressure-adapted tubes.
(Φ6.2mm1.8m) plastic tubes,
1 L-bracket, 3srews, 2 pressure-adapted tubes.
Caution:
+ The Pressure Switch should be mounted vertically which can prevent affecting on precision from inner atmosphere film weight.
+ To prevent electrical shock or damage to equipment , when the cover is removed ,ensure the power supply is switched off.
+ Complete wiring and check the connections before applying power . Incorrectwiring may cause permanent damage to the unit.
+ The Pressure Switch should be mounted vertically which can prevent affecting on precision from inner atmosphere film weight.
+ To prevent electrical shock or damage to equipment , when the cover is removed ,ensure the power supply is switched off.
+ Complete wiring and check the connections before applying power . Incorrectwiring may cause permanent damage to the unit.
Wiring (Screw terminal):
If the actual pressure is below dial setting, 1-2closed, while if the actual pressure is over dial setting, 1-3 closed.
If the actual pressure is below dial setting, 1-2closed, while if the actual pressure is over dial setting, 1-3 closed.
System check:
After proper installation and adjustment of the control ,the system should be checked by running at least one full cycle of the equipment .If anything appears to operate incorrectly , the wiring and components should be rechecked.
After proper installation and adjustment of the control ,the system should be checked by running at least one full cycle of the equipment .If anything appears to operate incorrectly , the wiring and components should be rechecked.
Repair and replacement:
Repair is not possible .In case of a defective or improperly functioning control ,please check with your nearest supplier . when contacting the supplier for a replacement ,you should state the type /model number of the control .this number can be found on the side of the control.
Repair is not possible .In case of a defective or improperly functioning control ,please check with your nearest supplier . when contacting the supplier for a replacement ,you should state the type /model number of the control .this number can be found on the side of the control.
