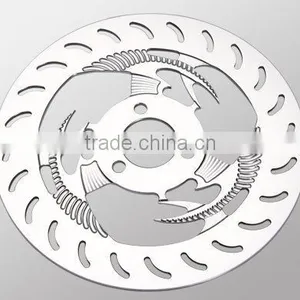

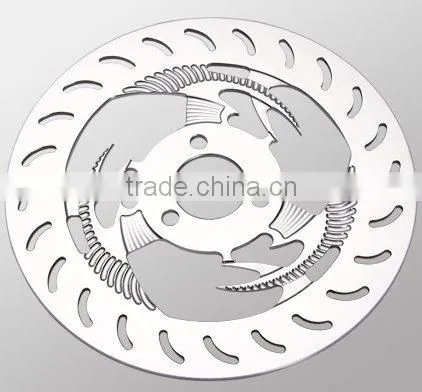

Help CenterBraking Discs Rotor
Related Products
-
PCF023 Motorcycle Fixed Brake DiscsUS$ 9 - 30MOQ: 500 Pieces -
PF003 Floating Braking Discs for MotorcyclesUS$ 9 - 30MOQ: 500 Pieces
-
PCF005 Motorcycle Fixed Braking DiscUS$ 9 - 30MOQ: 500 Pieces
-
Fixed Braking DiscUS$ 9 - 30MOQ: 500 Pieces
-
PNC010 Fixed Braking Discs for MotorcycleUS$ 9 - 30MOQ: 500 Pieces
Material: Cold rolled Steel plate as standard GB3280-92; hot rolled steel plate as GB4237-92. Aluminium alloy material as 6061, 7075 and 7050.
Heat Treatment: Heat treatment for super hardness and toughness.
Roughness: Working face roughness may attain Ra 0.8, fixing face Ra 1.6.
Appearance: Electrophoretic painting for black color, other colors like silver and gold also need electrostatic painting, Anodizing colors for Al. Alloy parts.
Thermal Resistance: 180°C temperature resistance, high temperature paint can be available for 250°C temperature resistance.
Film Thickness: Paint film thickness 0.01mm for black, other colors thicker
Film Hardness: Painting film hardness standard as GB/T6739-1966, adhesive power as GB/T9286-98
Equipments involved:
CNC Machines
Heat Treatment Furnace
Laser Machines
Braking Scaffolding Test Bench
Hydraulic Pressure Universal Testing Machine
Spectrum Analyzer
Three-Coordinates Measuring Machine
Salt Spray Chamber
Send Inquiry to This Supplier
